LIQUID POWERED ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 17, 2011
app pub date -
Aug 14, 2009
filing date -
Aug 14, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

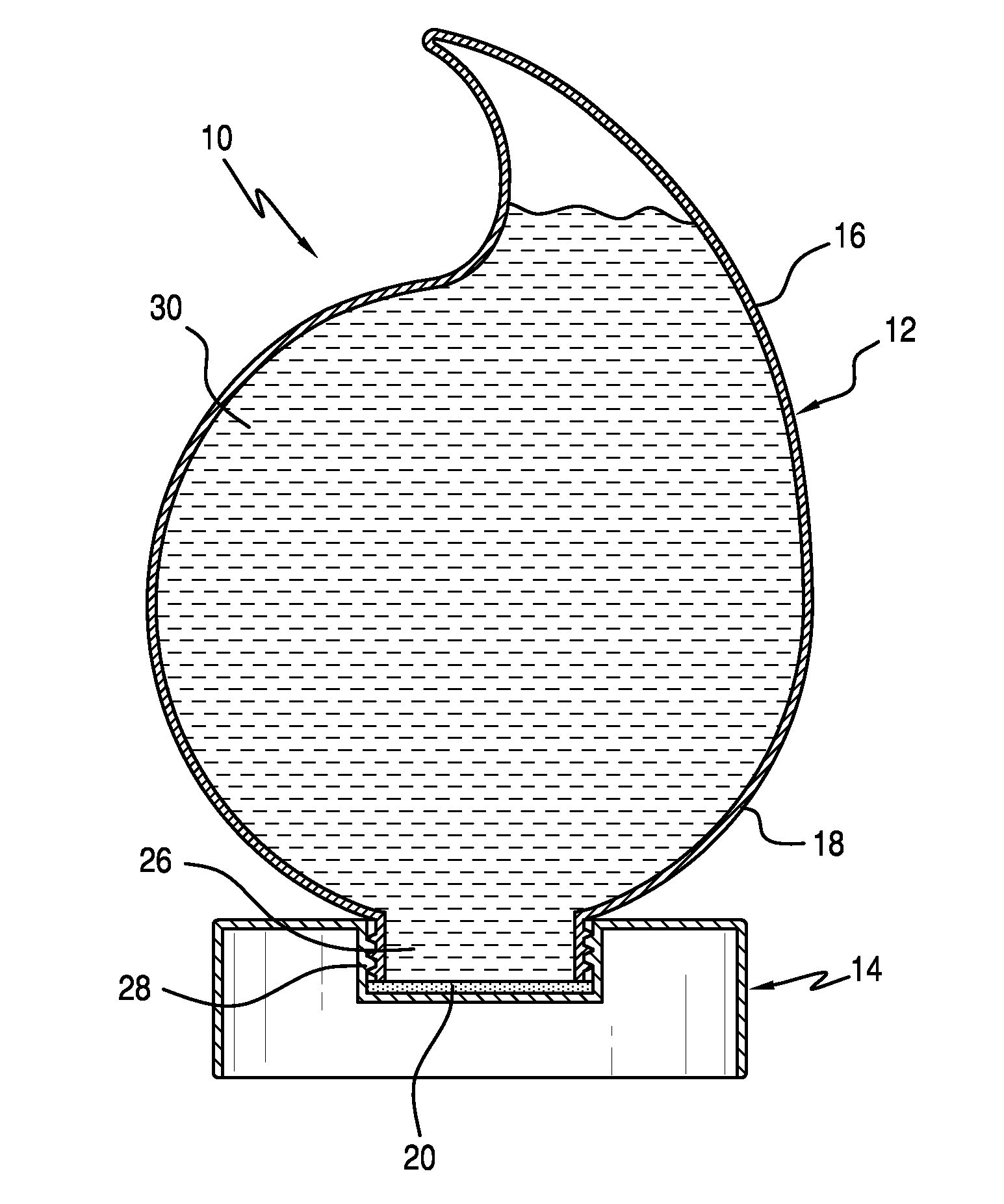

A liquid powered assembly including a housing; a removable bottom base; a seal; an electrolyte battery assembly; and, a liquid powered device. The housing includes an upper end portion and a lower end portion. The housing has a volume therein for containing an electrolyte solution. The lower end portion has a fluid inlet. The removable bottom base is removably attached to the lower end portion of the housing. The removable bottom base has a bottom surface for supporting the liquid powered assembly. A seal engages the housing and the removable bottom base for providing fluidic sealing engagement therebetween. An electrolyte battery assembly is positioned within the housing. A liquid powered device is operably attached to the electrolyte battery assembly. To provide operation, the housing and the removable bottom base are detached relative to each other and the housing is turned substantially upside down to allow filling of the housing via the inlet. The bottom base is then attached to the housing and the assembly is then inverted for use.
First Claim
Other Claims data not available
