Multi-Lobe, Grooved Cosmetic Applicator Brush
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 10, 2011
app pub date -
Aug 9, 2010
filing date -
Aug 7, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

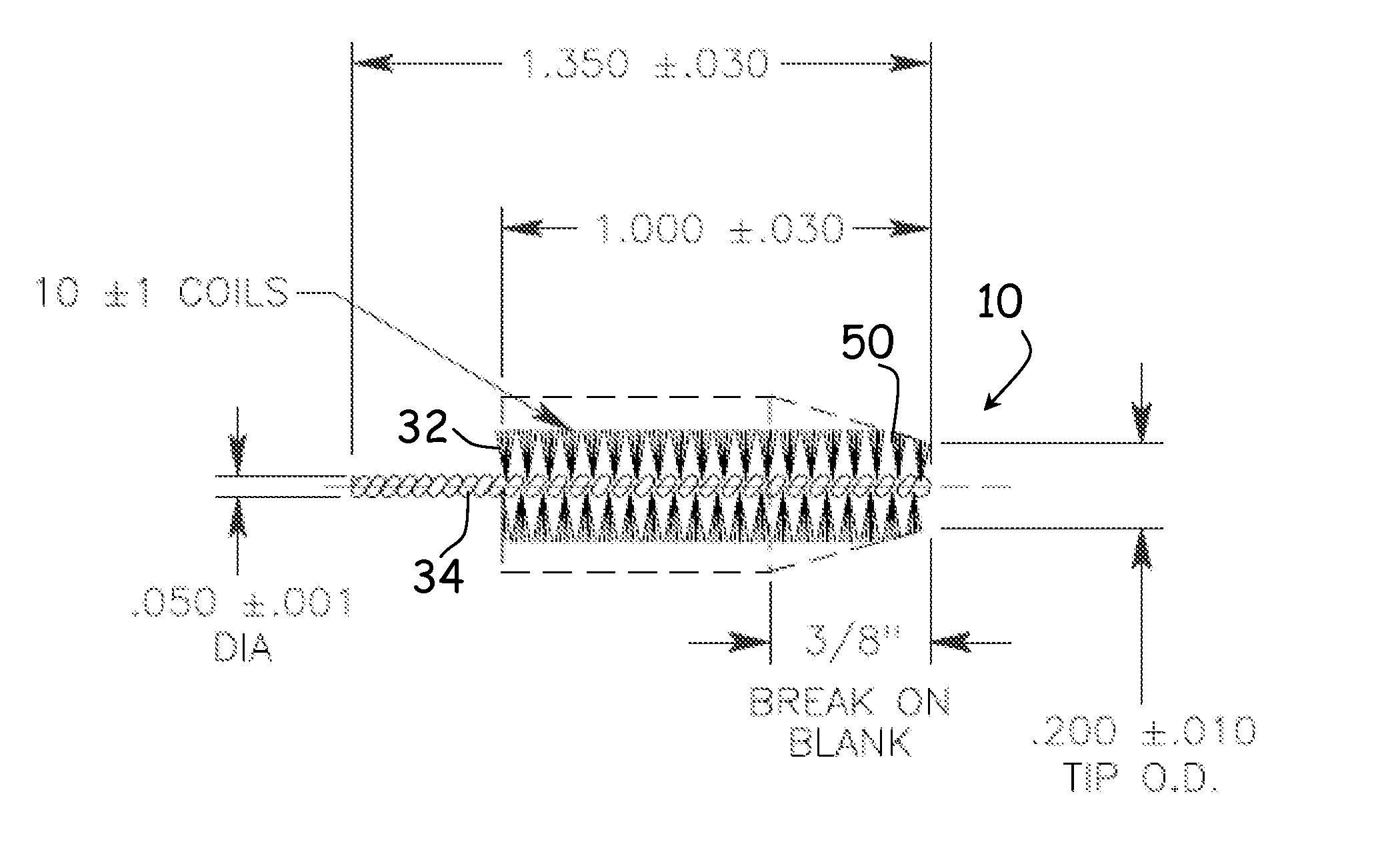

A cosmetic applicator brush with a core and bristles retained by the core to form a brush head. The brush head has a cross section with first and second lobes separated by first and second feed grooves. Each feed groove has first and second legs that terminate in a base portion, and each lobe has a first and second application surfaces formed in part by legs of adjacent feed grooves and an arcuate peripheral application surface between and contiguous with the first and second application surfaces. The application surfaces of the lobes can be arcuate, and the surfaces can cooperate to define a smooth bulbous surface. The lobes can have widths of approximately 65 percent of the effective diameter between central portions of the peripheral application surfaces, and the feed grooves can be separated by a distance approximately 10.5 percent of the effective diameter of the brush head.
First Claim
Other Claims data not available
