PRINT CHARACTER SELECTOR OF PRINTER AND ASSEMBLING METHOD OF OPERATING MEMBER OF THE PRINT CHARACTER SELECTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 27, 2011
app pub date -
Dec 1, 2008
filing date -
Mar 28, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

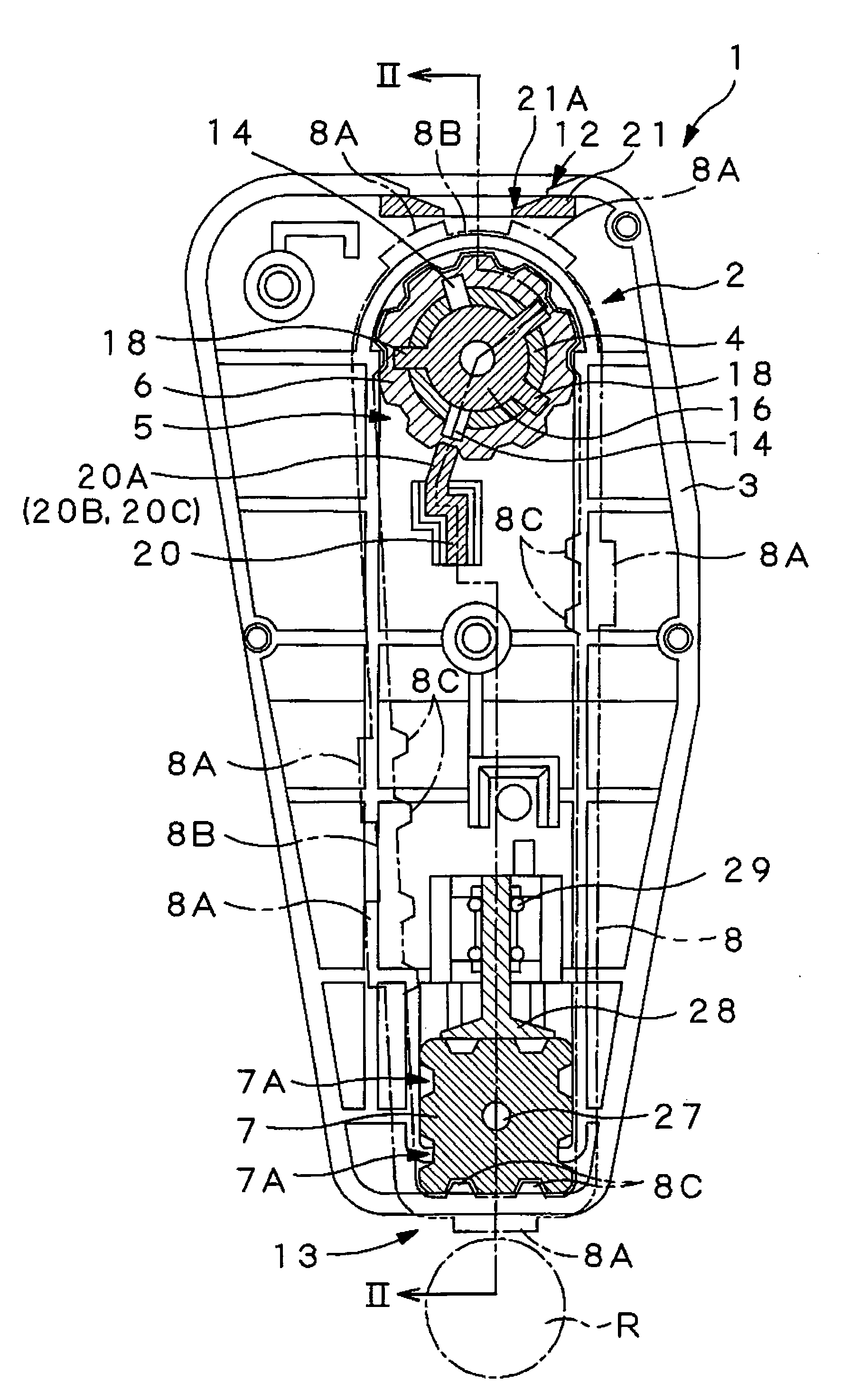

To provide a print character selector of a printer and assembling method of operating member of the print character selector which configures both the axial direction regulation mechanism for the indexing regulation of the selector wheel 6 and the rotational direction regulating mechanism for the selection regulation of the print character of the endless print band 8 at the knob shaft 16. The print character selector includes a plurality of regulating recesses at a periphery of the knob shaft of the operating member (5) both in axial and rotational directions of the shaft. An urging member for regulation engages and disengages from the regulating recesses. A plurality of regulating recesses (16A) capable of selecting any one of the selector wheels (6) by moving the knob (15) along the axial direction, and configured for selecting any one of the print characters by rotating the knob around the axial direction are provided on the knob shaft. The urging member for regulation engages and disengages from the regulating recesses.
First Claim
Other Claims data not available
