STRAP BUCKLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 27, 2011
app pub date -
Feb 27, 2009
filing date -
Mar 14, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

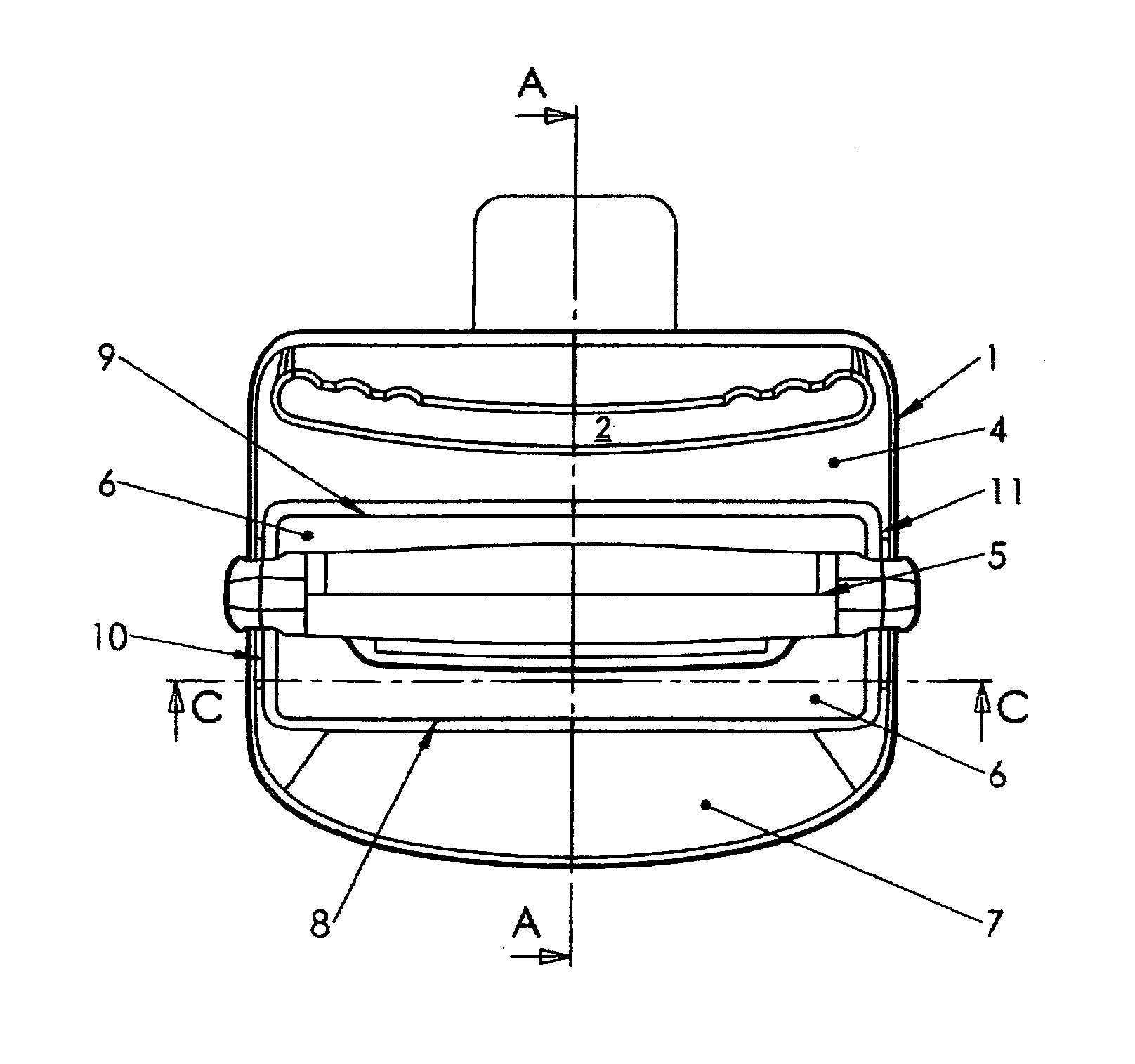

Strap buckle comprising a frame (4) with a reverse side and an upper side, which frame has an anchorage end (at 2) and a free end (7) and an opening (6) between those two ends, the side edges of which are designed as guides (10, 11) and the edge of which that lies adjacent to the free end forms a counter edge (8), as well as a locking means (5) arranged in the opening to be displaceable on the guides. The locking means (5) is provided on the guides (10, 11) with a clearance (16) so that it is slanted in relation to the guides when a pulling force is exerted on the strap (18) laid around the locking means. The locking means (5) is on its side lying at the reverse side of the frame designed with a lip (17) protruding towards the free end of the frame in order to, in cooperation with said counter edge (8), exert line pressure against the strap when the strap is loaded.
