Rotary Drum of an Axial Compressor Having a Composite Web
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 20, 2011
app pub date -
Jul 15, 2010
filing date -
Jul 16, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

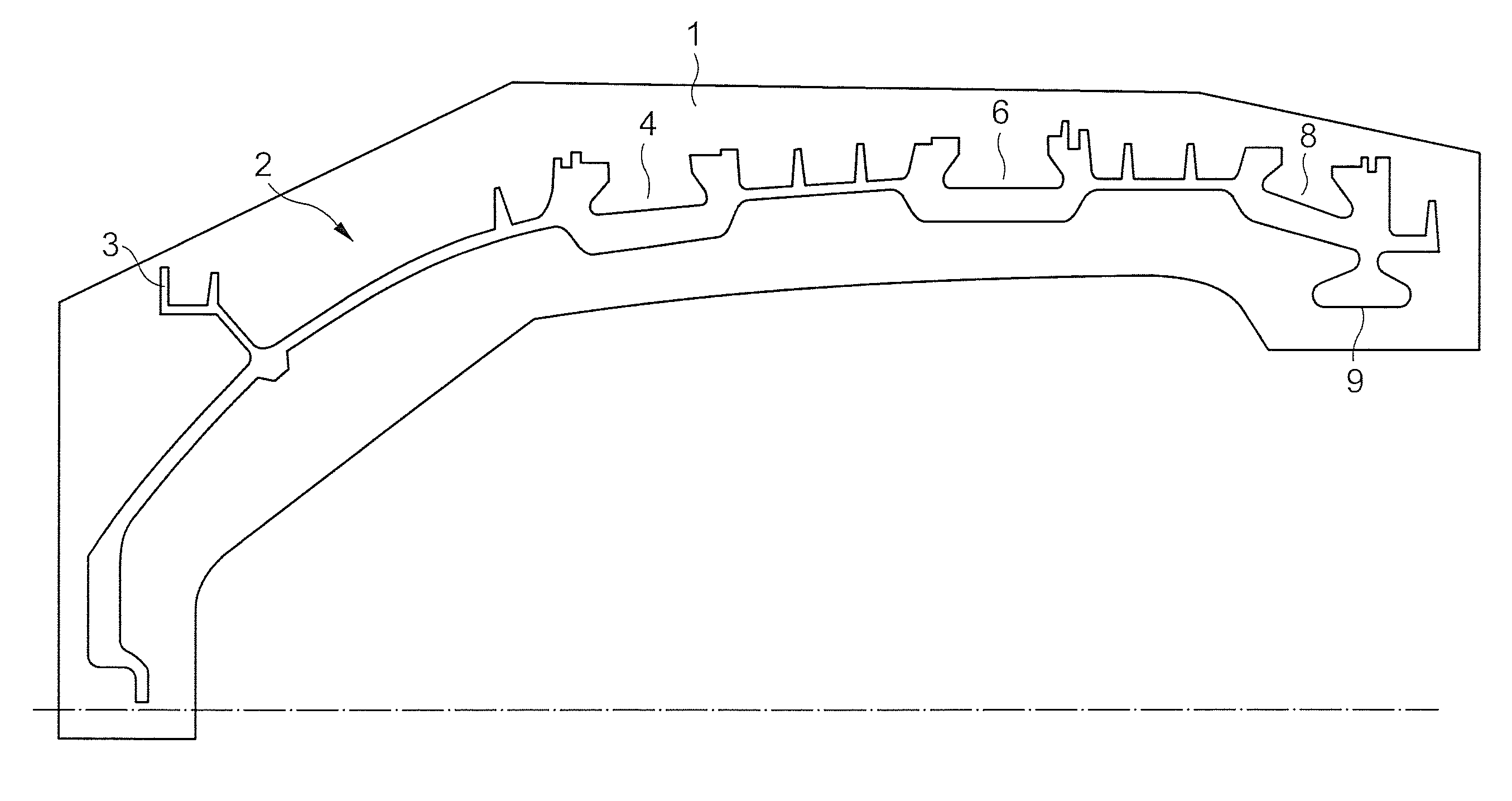

A rotary drum of an axial compressor having a web made of composite material has an upstream flange for fastening the fan, a segment having a sealing flange upstream, a segment with a groove adapted to receive the bases of the vane of a first row of vanes, a segment with a groove adapted to receive the bases of the vane of a second row of vanes, and a segment with a groove adapted to receive the bases of the vane of a third row of vanes. These segments are made of metallic material mostly for reasons of mechanical resistance to the centrifugal forces. The segments are connected to each other with web segments made of composite material. The ends of the metallic segments have a dovetail-shaped section in a longitudinal plane that is able to ensure a positive connection with the composite material.
First Claim
Other Claims data not available
