METHOD AND APPARATUS FOR THE DISCONNECTION OF A FUEL CELL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 6, 2011
app pub date -
Feb 23, 2009
filing date -
Mar 28, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

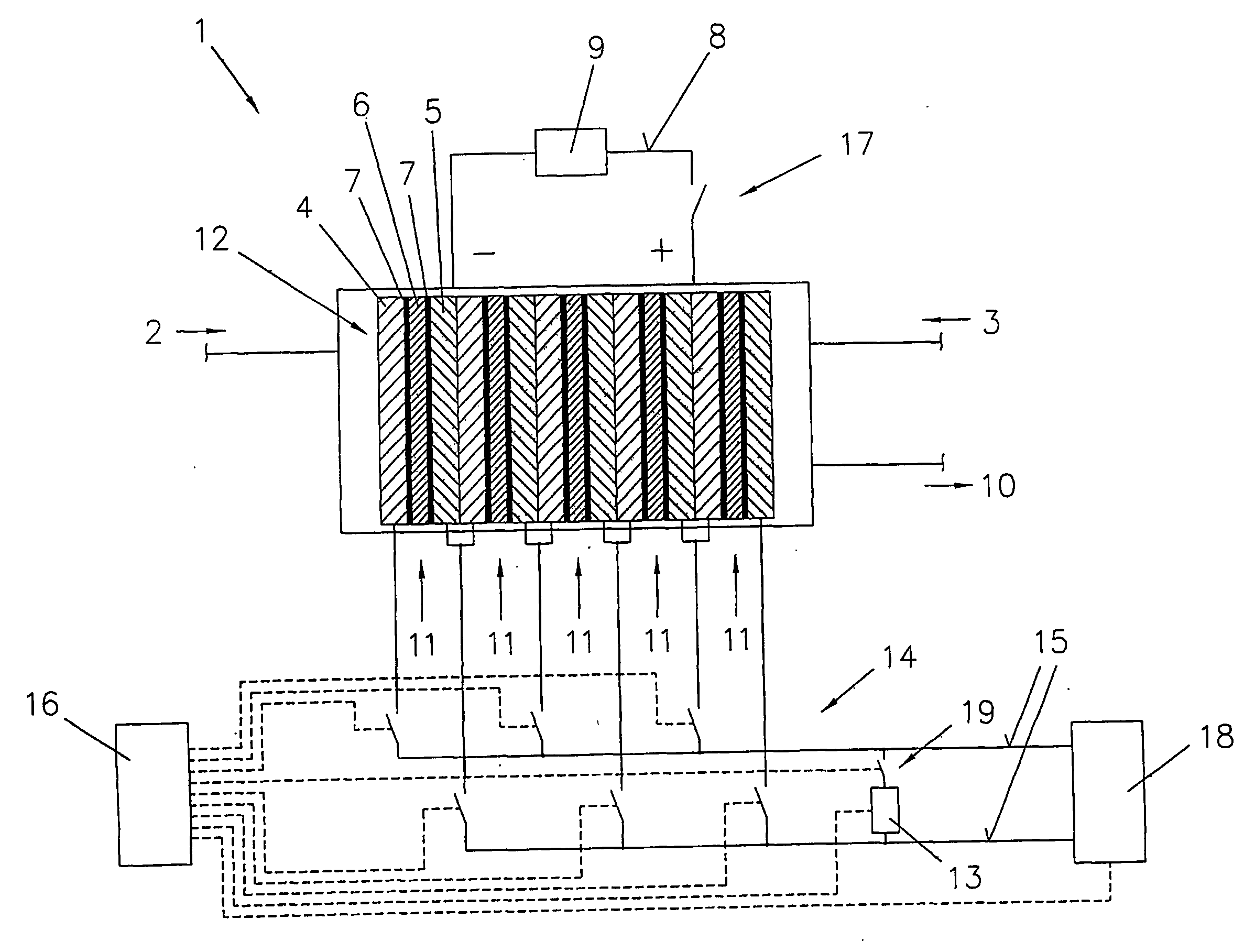

The invention relates to a method for the disconnection of a fuel cell (1) with a plurality of cells (11) connected in series, wherein at least two reaction gases are supplied during operation, and the supply of at least one reaction gas is interrupted after operation, and the reaction gas remaining at least in one of the cells (11) is consumed by the current generated by the reaction gases in the cell (11) being dissipated via at least one consumer (13), and to an apparatus for implementing the method. For the complete and controlled consumption of the reaction gases remaining in the individual cells (11), the invention provides that at least one consumer (13) is connected via at least one switching element (14) per cell (11) to each cell (11), with the result that the consumer (13) forms a dedicated circuit with each cell (11), and that at least one reaction gas of each individual cell (11) is completely consumed by the current generated by the reaction gases in the cell (11) being dissipated via the at least one consumer (13) connected to the cell (11).
First Claim
Other Claims data not available
