MICRO-ELECTRODE ARRAY BASED ON OPTICALLY TRANSPARENT POLYMERIC CONDUCTIVE MATERIALS, AND METHOD FOR THE MANUFACTURING THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 6, 2011
app pub date -
Feb 25, 2009
filing date -
Feb 29, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

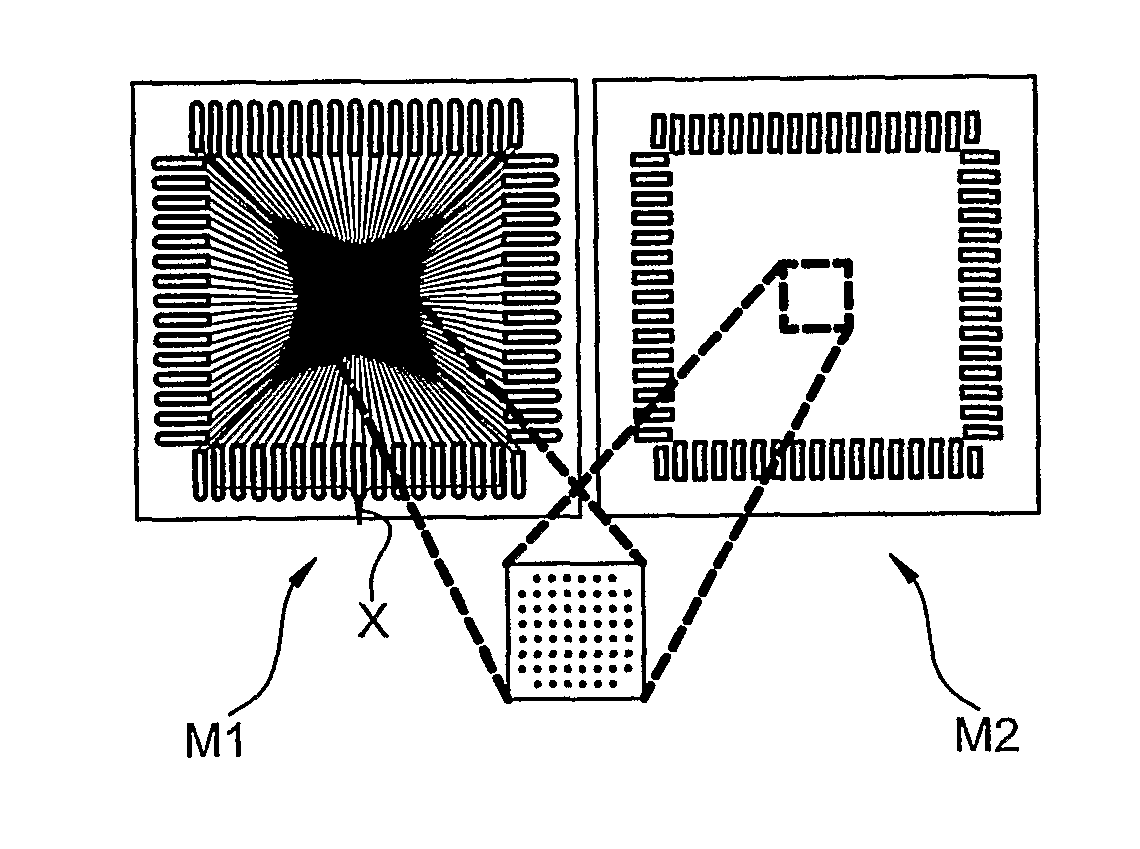

A micro-electrode array is described comprising an insulating substrate and a plurality of conductive paths defined therein, each of which includes an electrode area with microscopic dimensions, a connection area with macroscopic dimensions, and a buried interconnection region, wherein the insulating substrate is made of a first polymeric material, such as PDMS, and the conductive paths are made of a second polymeric material, such as PEDOT. Furthermore, a method of manufacturing such micro-electrode array is described, based on the configuration of an insulating substrate volume by replica molding on the first polymeric material through a prearranged master mould, bearing a configuration of microstructures adapted to define a plurality of cavities; successively filling the cavities with a second conductive polymeric material so as to constitute the electrode areas, the connection areas, and the interconnection regions; and arranging an insulating material sealing layer for the filled cavities.
First Claim
Other Claims data not available
