DRAINAGE, FILTRATION, AND ELECTRICITY GENERATING SYSTEMS AND METHODS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 30, 2010
app pub date -
May 28, 2010
filing date -
May 28, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

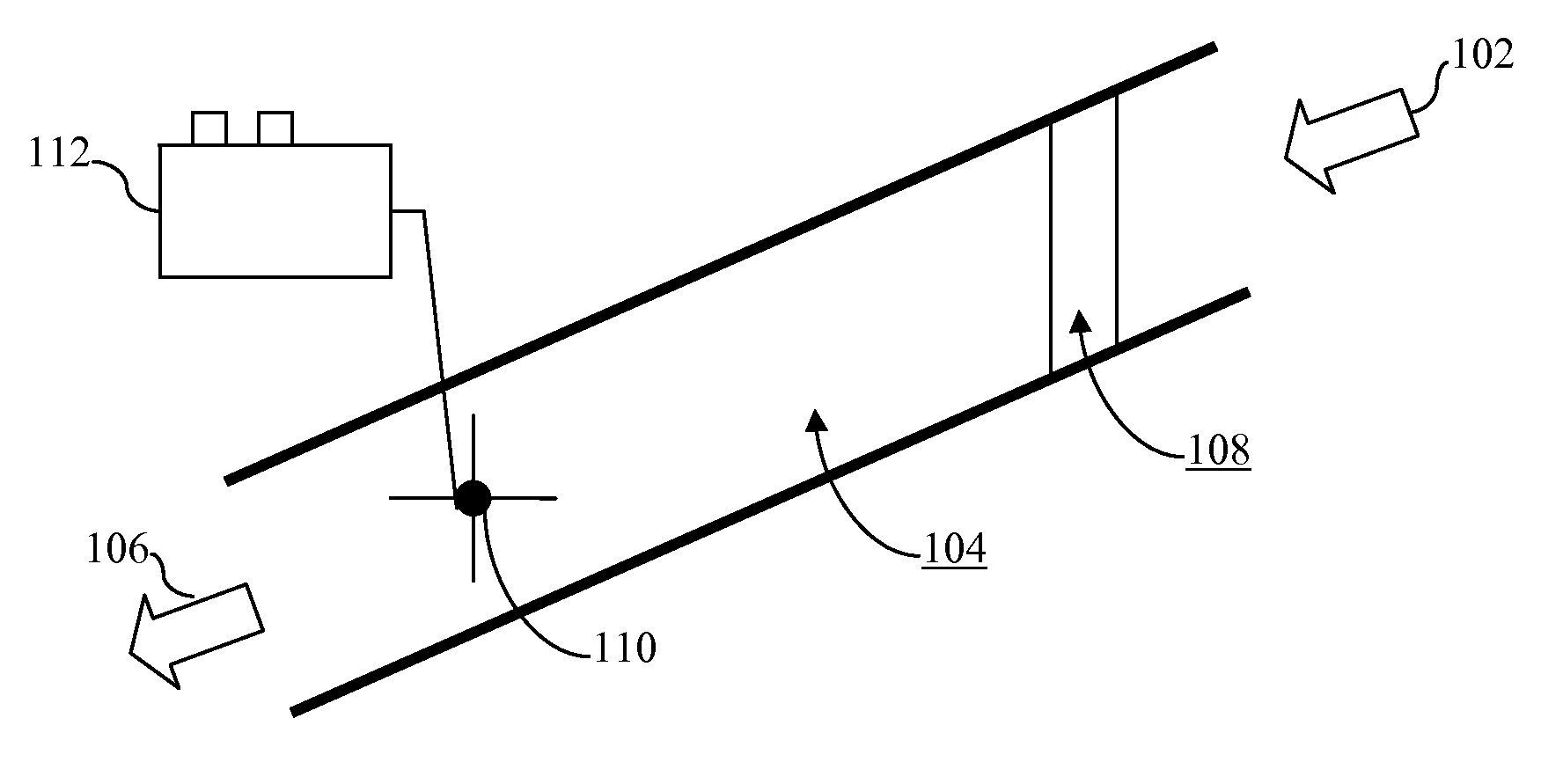

Certain example embodiments of this invention relate to techniques for collecting run-off and/or draining water from commercial or residential sites, filtering out the liquid, and using the filtered liquid to engage one or more turbines to generate electricity. In certain example embodiments, the one or more turbines are located downstream of filtration, grease-collection, and/or other purification devices. The electricity generated by the one or more turbines may be stored in batteries, serve as a power source for an active drainage/filtration system, used for other activities in or around the site, etc. In certain example embodiments, elements (such as sidewalls, vanes, and/or the like) may be provided upstream of the at least one turbine and downstream of the filtration subsystem, with adjacent elements defining constriction locations therebetween to help accelerate the flow of fluids passing therethrough.
First Claim
Other Claims data not available
