MANUFACTURING OF OPTICAL STRUCTURES BY ELECTROTHERMAL FOCUSSING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 16, 2010
app pub date -
Dec 12, 2008
filing date -
Dec 12, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

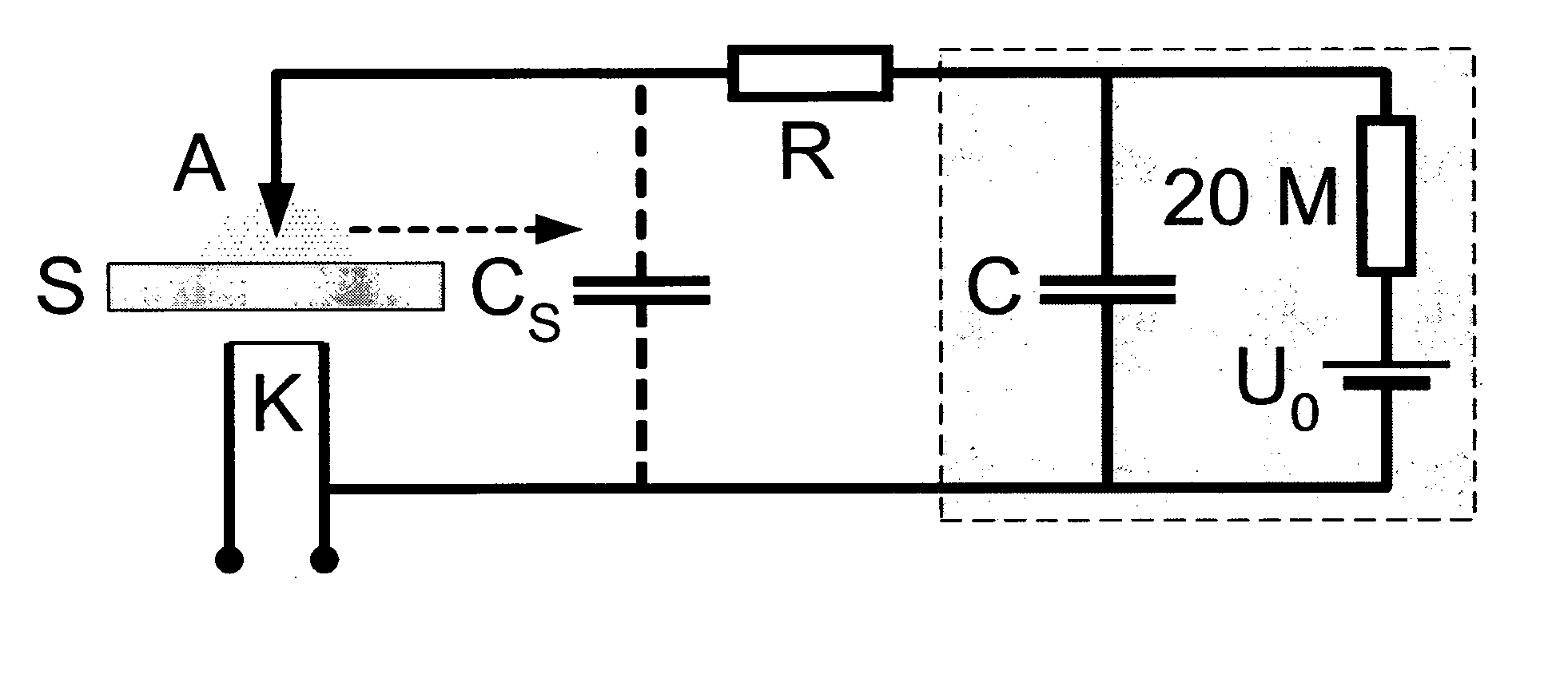

This invention relates to methods and devices for the production of optical microstructures or domains in dielectric substrates based on electrothermal focussing. More specifically, the invention relates to a method of introducing a change of dielectric and/or optical properties in a region of an electrically insulating or electrically semiconducting substrate, and to substrates produced by such method.
