REGISTER CONTROL METHOD AND PRINTING PRESS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 16, 2010
app pub date -
Oct 24, 2007
filing date -
Oct 25, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

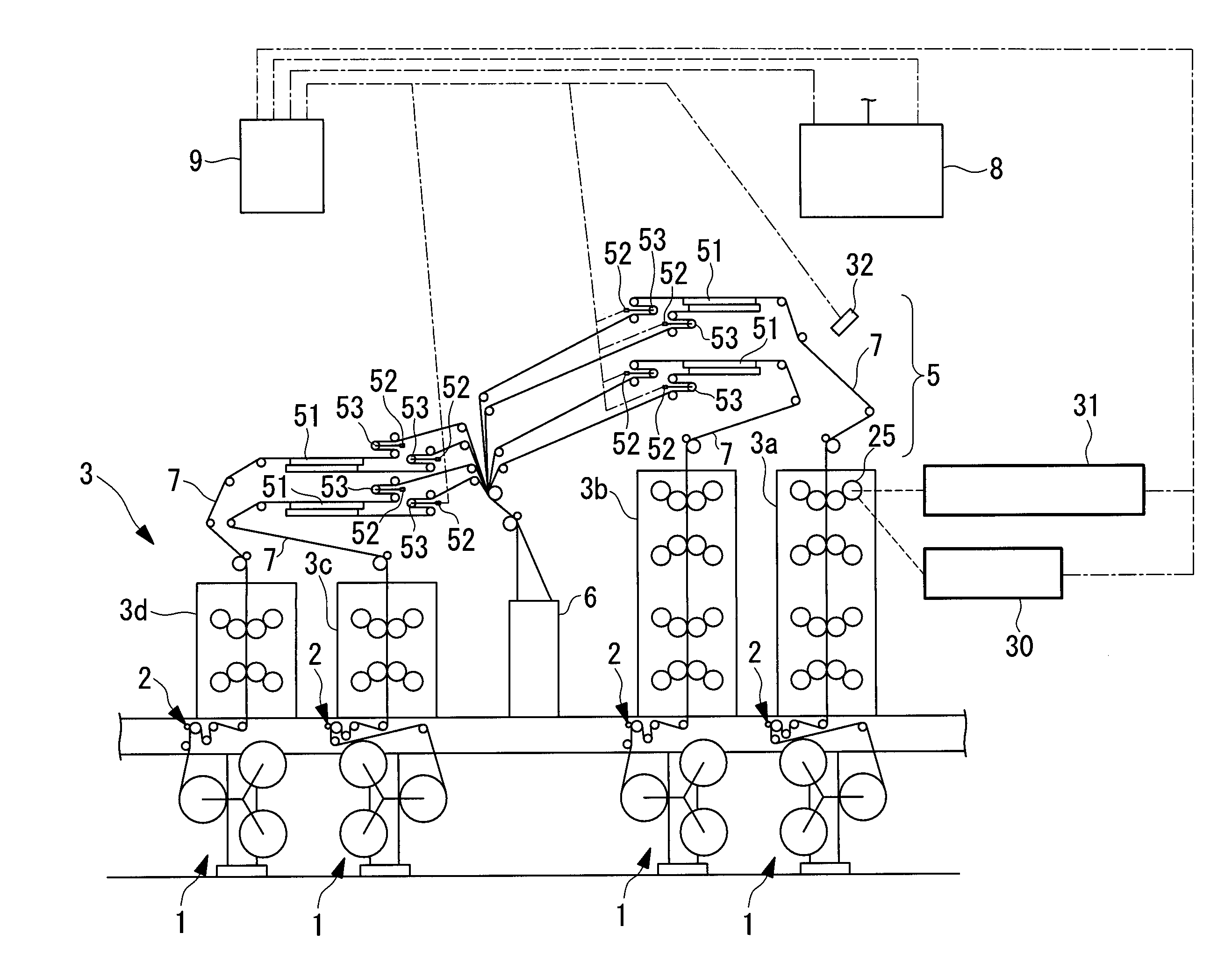

A register control method and printing press capable of preventing wasted paper and improving cost effectiveness by improving detection of a register mark is provided. A position of a register mark printed on a web before starting printing is predicted. A plate cylinder is preset on the basis of the prediction. Then, a predicted value of the register mark position to be used for the next operation is corrected on the basis of the difference between the position of an actual printed register mark and the predicted position. For example, when the predicted value of the register mark is A, an actual position of a register mark is B, and the corrected predicted value of the register mark is A′, correction is carried out on the basis of A′=A+(B−A)×k (where k is a coefficient smaller than one).
First Claim
Other Claims data not available
