Internally supported modular and non-modular linked structures
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 2, 2010
app pub date -
May 27, 2009
filing date -
May 27, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

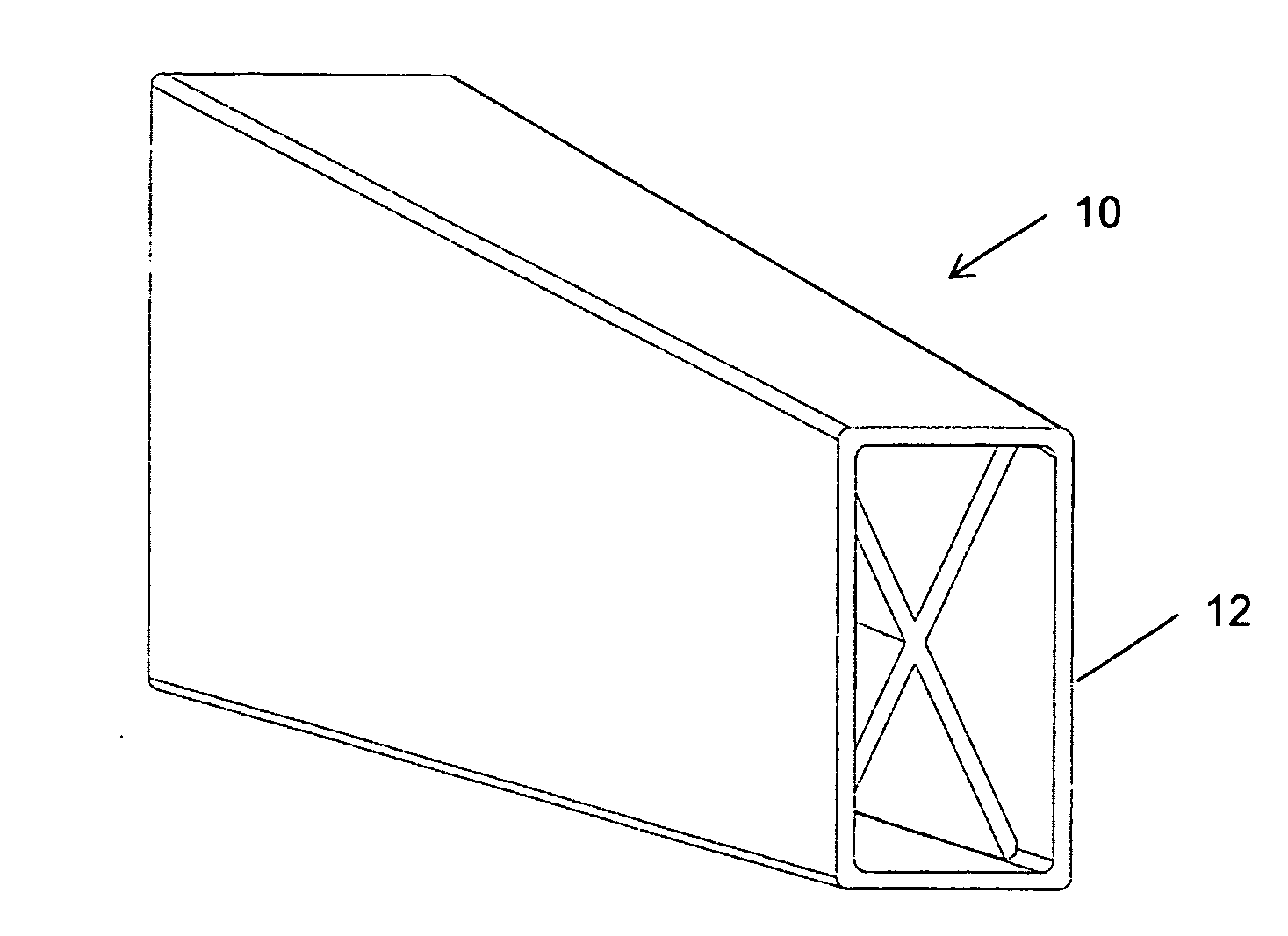

A method of fabricating reinforced modular and non-modular composite members having a predetermined cross sectional shape, comprising the steps of: providing a source of composite material; selecting a plurality of cross-sectional shapes for the components of the composite member, whereby the components are arrangable to form the predetermined cross sectional shape of the composite member; applying the composite material on each of a plurality of mandrels; curing the composite material to form a plurality of components; attaching a pre-stressing device to at least one of the plurality of components and pre-stressing said component to produce at least one pre-stressed component; arranging the components to form an assembly of the components in the predetermined cross sectional shape of the composite member, wherein the assembly includes the at least one pre-stressed component; applying the composite material to the assembly of components; curing the composite material; and releasing the pre-stressing device.
First Claim
Other Claims data not available
