Superconducting magnet system with refrigerator for re-liquifying cryogenic fluid in a tubular conduit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 27, 2010
filing date -
Sep 9, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

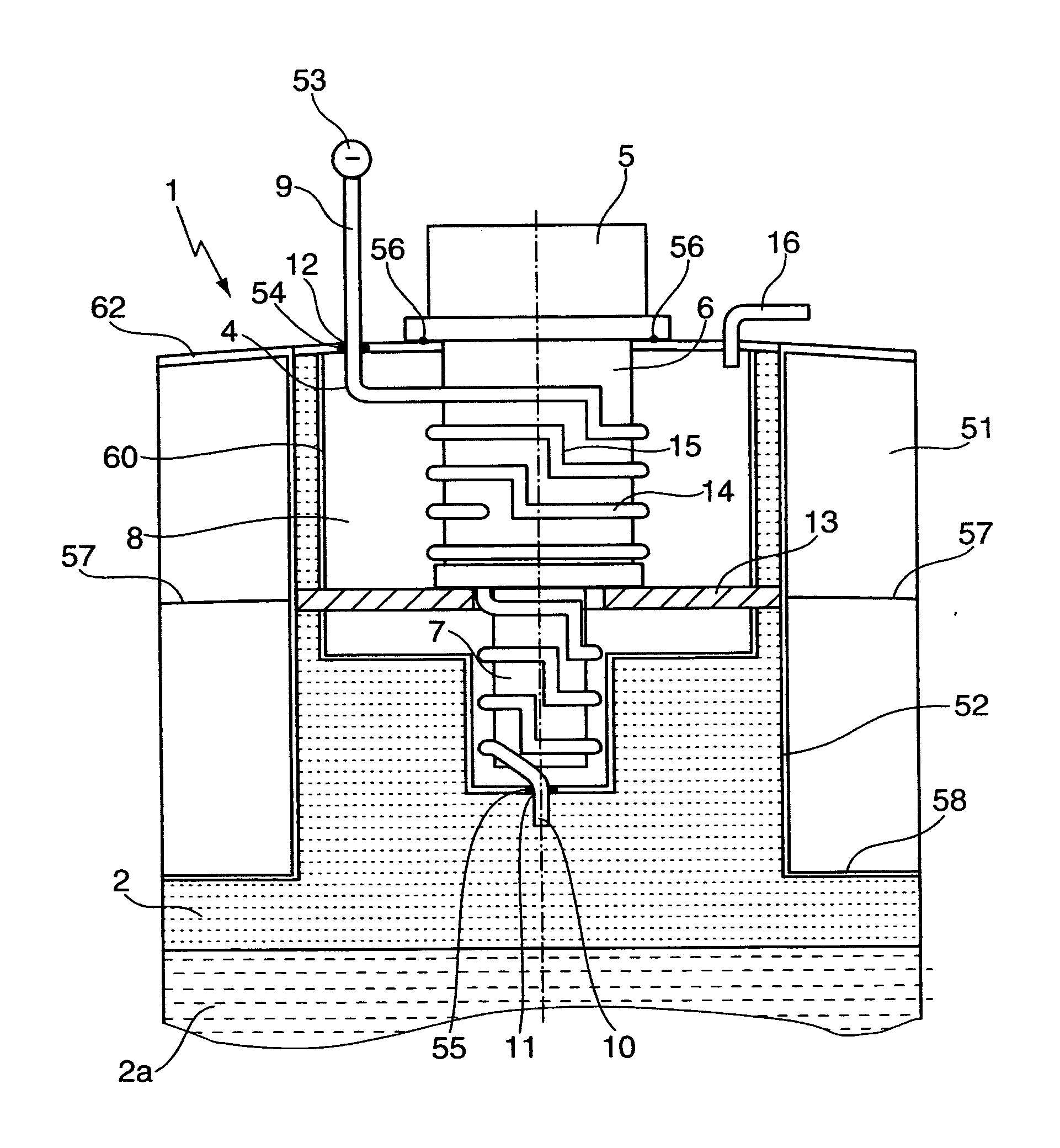

A superconducting magnet system with a superconducting magnet coil system, which is disposed in a cryogenic fluid tank (2) of a cryostat (1), and an exchangeable refrigerator (5; 31) which is operated in a vacuum container (8) and is provided to re-liquefy the cryogenic fluid flowing through a tubular conduit (4; 21) is characterized in that the tubular conduit (4; 21) is rigidly installed in the cryostat (1). The refrigerator reaches its optimum performance during operation in a vacuum, and can be easily exchanged in case of a defect.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01F Class
- 3.91 % this patent is cited more than
- 15 Age
