Radiation-selective absorber coating and absorber tube with radiation-selective absorber coating

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10774426
APP PUB NO 20100294263A1
SERIAL NO

12780007

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

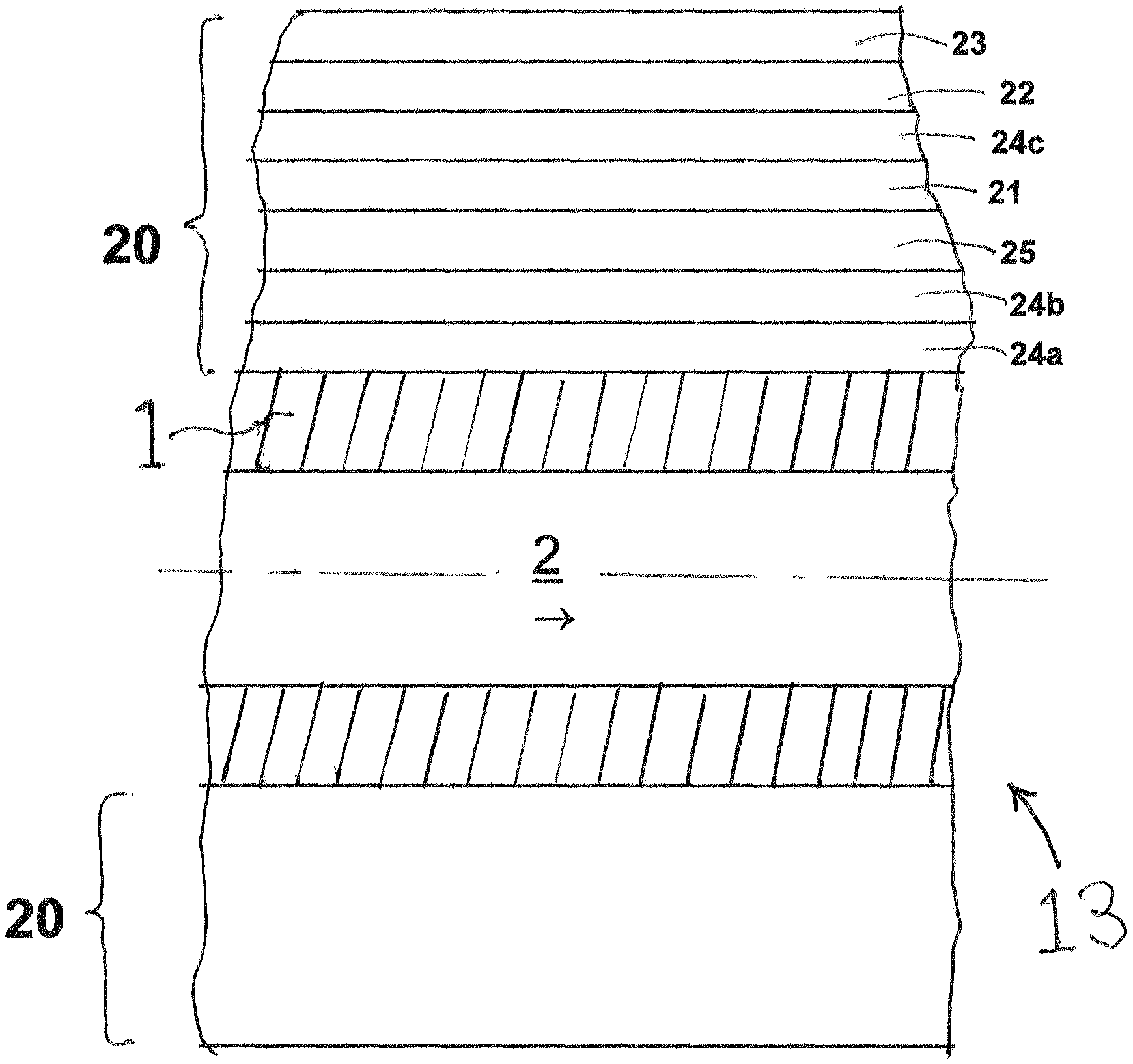

The radiation-selective absorber coating, in particular for an absorber tube of a parabolic trough collector, includes a reflective layer which is reflective in the infrared range, at least one barrier layer arranged below the reflective layer, at least one absorption layer arranged above the reflective layer, an antireflection layer arranged above the absorption layer and at least one adhesion-enhancing layer arranged between the barrier layer and the reflective layer. The adhesion-enhancing layer preferably is a molybdenum layer, but can also be provided by a copper, titanium, titanium oxide, or silicon layer. The adhesion-enhancing layer preferably has a thickness of 5 to 50 nm.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SCHOTT SOLAR AGHATTENBERGSTRASSE 10 MAINZ 55122

International Classification(s)

loading....
  • 2010 Application Filing Year
  • C23C Class
  • 1580 Applications Filed
  • 1036 Patents Issued To-Date
  • 65.57 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20102011201220132014201520162017201820192020202120220255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Dreyer, Sebastian Tirschenreuth, DE 2 15
Kuckelkorn, Thomas Jena, DE 26 236
Silmy, Kamel Mitterteich, DE 3 29

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 1 Citation Count
  • C23C Class
  • 58.45 % this patent is cited more than
  • 5 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges1055695351018101 - 1011 - 2021 - 3031 - 4041 - 5051 - 600501001502002503003504004505005506006507007508008509009501000105011001150

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Mar 15, 2028
11.5 Year Payment $7400.00 $3700.00 $1850.00 Mar 15, 2032
