AIR FLARE APPARATUS AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 18, 2010
app pub date -
May 12, 2009
filing date -
May 12, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

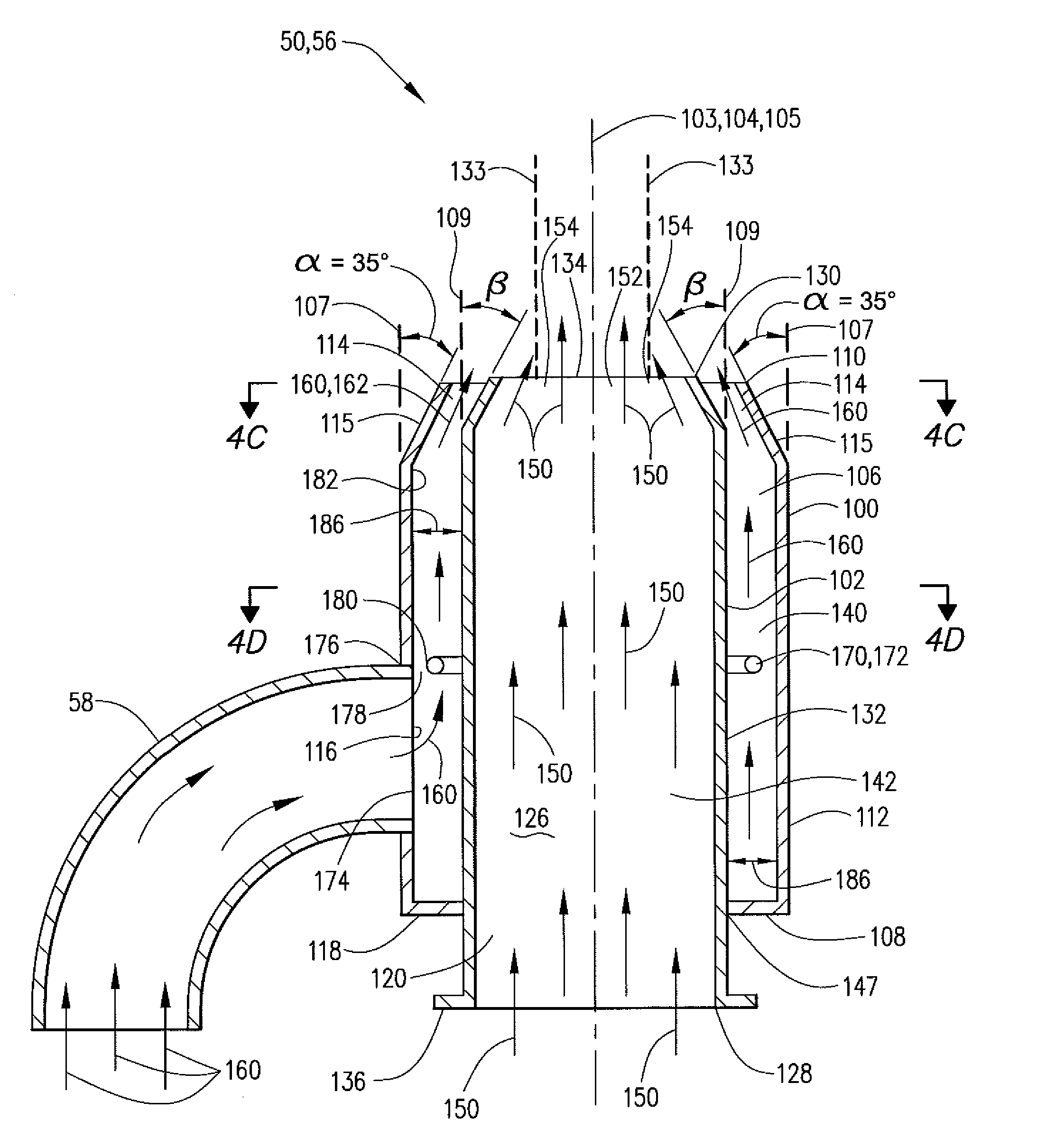

A flare apparatus for discharging and burning flare gas in the atmosphere is provided. The flare tip includes a flare gas conduit having a flare gas discharge opening and a combustion air conduit having a combustion air discharge opening. All of the flare gas to be flared is discharged through the flare gas discharge opening into a unified column of air discharged through the combustion air discharge opening. The flare gas discharge opening and the combustion air discharge opening are positioned with respect to one another such that flare gas discharged from the flare gas discharge opening is discharged inwardly into combustion air that is discharged from the combustion air discharge opening and admixed therewith. Essentially all of the discharged flare gas is admixed with discharged combustion air or external atmospheric air outside of the flare apparatus thereby preventing internal burning. A method of flaring a mixture of flare gas and combustion air is also provided.
First Claim
Other Claims data not available
