CONDENSING UNIT ATTACHMENT FEATURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 18, 2010
app pub date -
May 12, 2010
filing date -
May 14, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

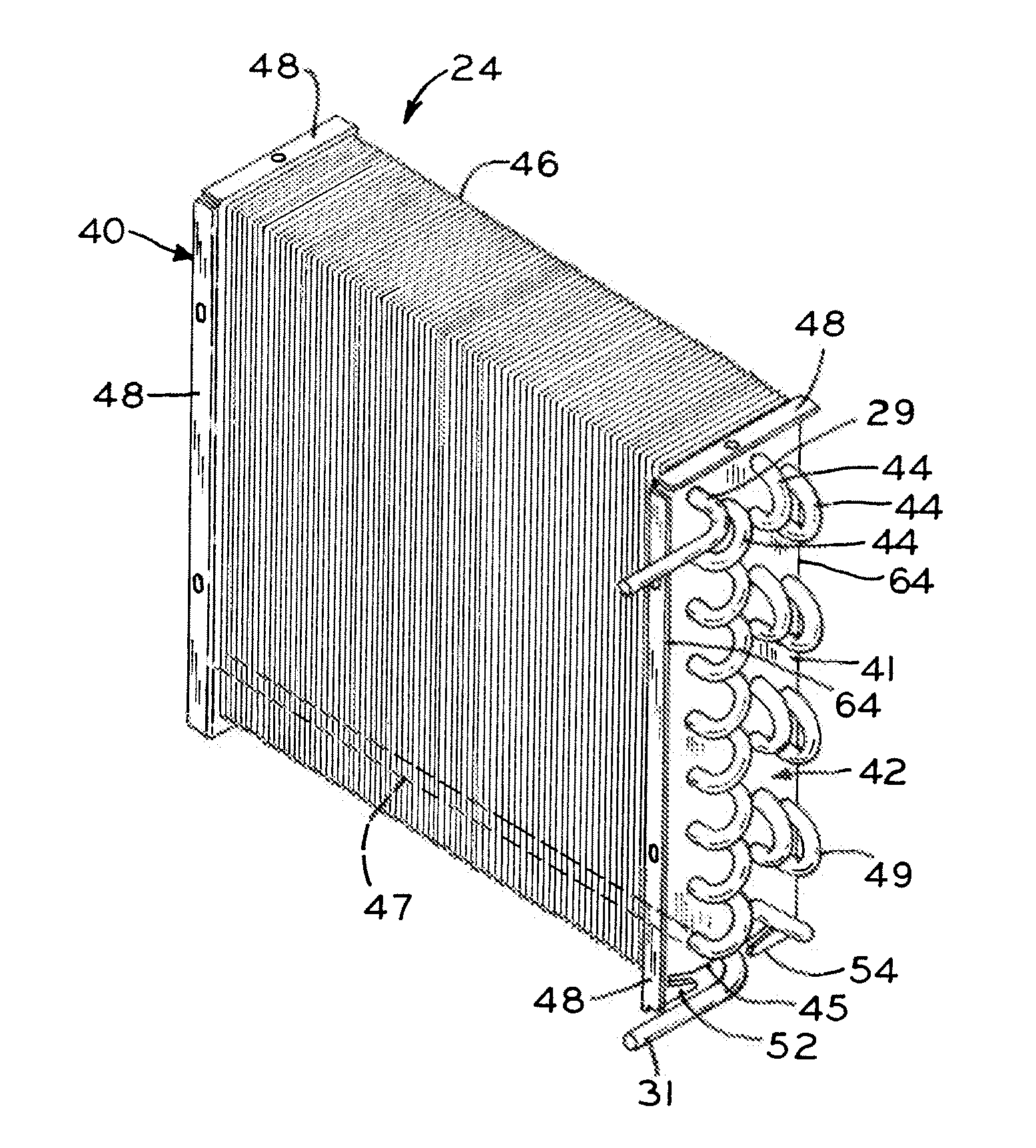

The present invention relates to a condenser or other component that is attached to the base plate by means of integral torque tabs that are twisted underneath the base plate to draw the condenser or other component downwardly against the upper surface of the base plate. In a preferred embodiment, the torque tabs are located on the lower ends of the condenser or other component end plates. The tabs are preferably designed to be machine twisted to provide enough holding force to maintain the condenser or other component and base plate in a rigid condition.
First Claim
Other Claims data not available
