HIGH POWER FUEL STACKS USING METAL SEPARATOR PLATES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 11, 2010
app pub date -
May 10, 2010
filing date -
May 8, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

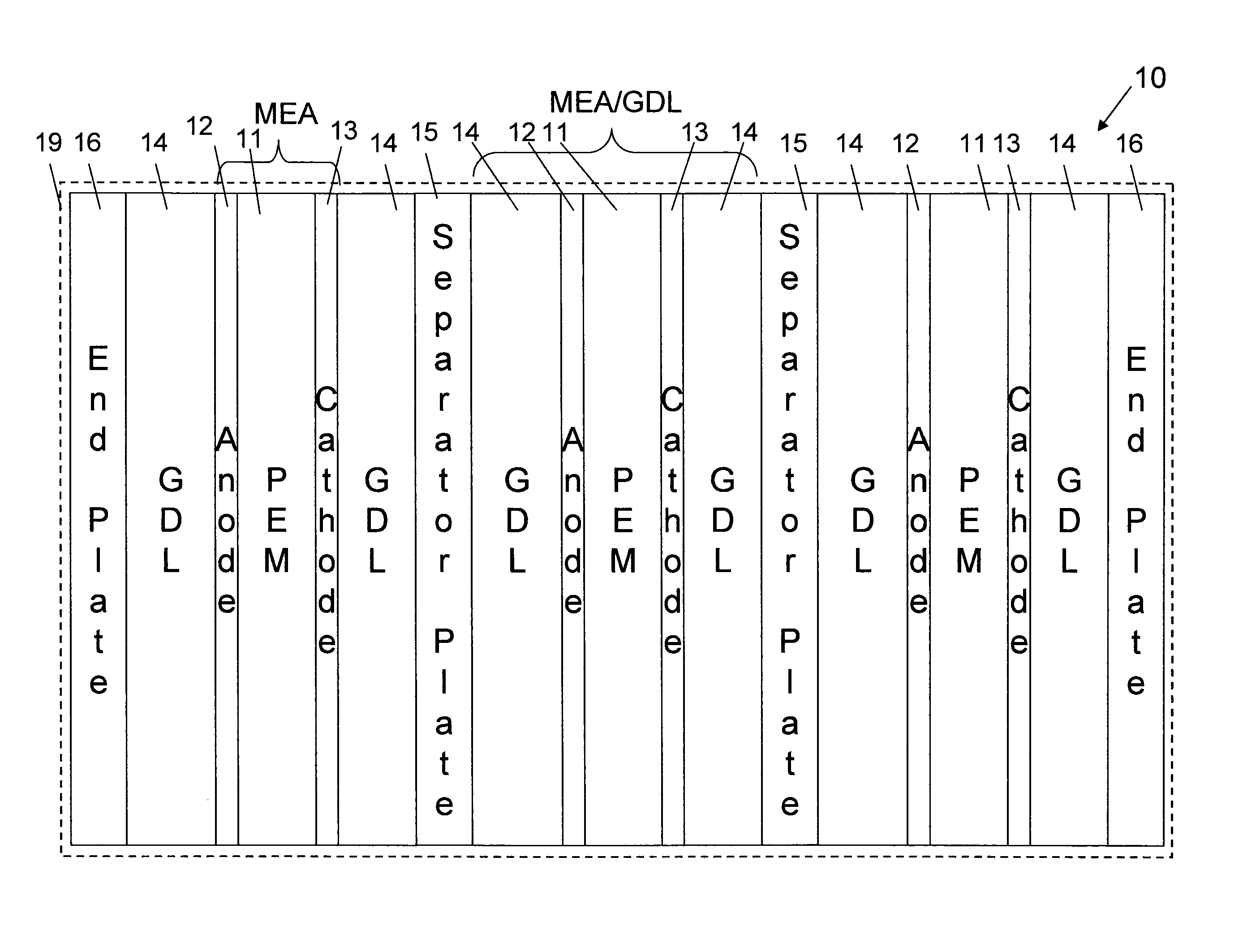

A separator plate for use in a fuel cell stack in a fuel cell device includes a porous core with a metal layer on either side of the porous core. The metal layer has through holes formed therein such as by perforation. The metal layers are contoured to provide flow field channels, and the porous layer may have channels formed therein that are parallel to the metal layers that can be used for cooling water. A monopolar fuel stack includes twin cell units that include a center separator plate, a pair of membrane electrode assemblies, one on each side of the center separator plate, and a pair of outer plates which may have through holes formed therein, one on each side of the membrane electrode assemblies opposite the center separator plate. The outer plates cover substantially an entire electrode to which they are adjacent.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A2 | WO2010129957 | May 10, 2010 |
International Classification(s)
- 2010 Application Filing Year
- H01M Class
- 3014 Applications Filed
- 2582 Patents Issued To-Date
- 85.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H01M Class
- 1.79 % this patent is cited more than
- 15 Age
