FIBER OPTIC GRATING MEASURING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 11, 2010
app pub date -
Sep 22, 2009
filing date -
May 5, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

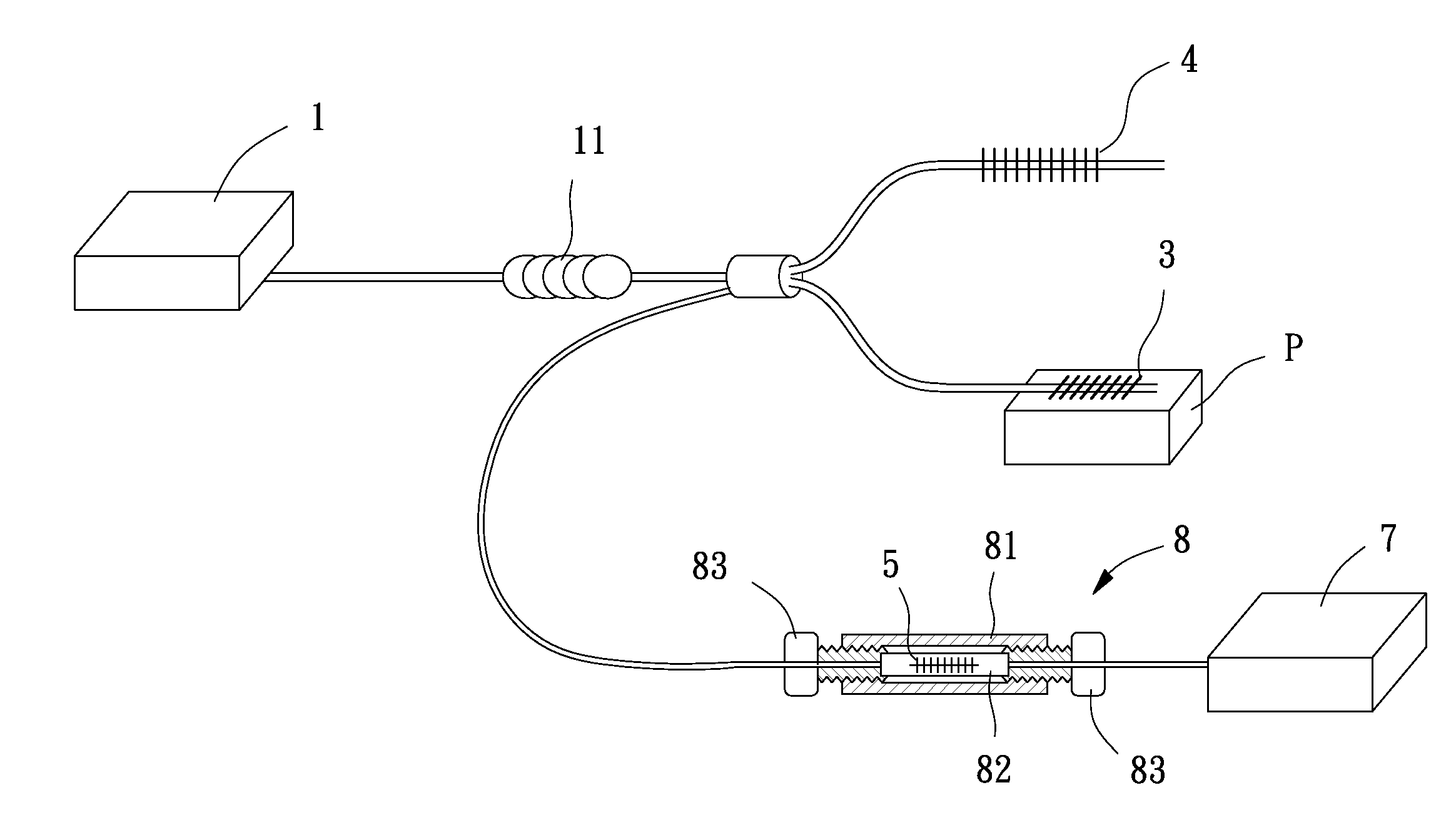

A fiber optic grating measuring device includes a wide-band light source, an optical coupler coupled to the wide-band light source, and an output unit. A long-period fiber grating includes a first end coupled to the optical coupler and a second end coupled to the output unit. A first fiber Bragg grating is coupled to the optical coupler. The first fiber Bragg grating serves as a measuring terminal and is adapted to be mounted on an object having a physical quantity, such as a strain or temperature, to be measured by the fiber optic grating measuring device. A second fiber Bragg grating is coupled to the optical coupler. The second fiber Bragg grating serves as a free terminal and is located adjacent to the first fiber Bragg grating. The second fiber Bragg grating compensates an error resulting from a temperature change to increase the measuring accuracy.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| TW | A | TW201040604 | May 05, 2009 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G02B Class
- 2.36 % this patent is cited more than
- 15 Age
