RADIO COMMUNICATION APPARATUS AND RELAY TRANSMISSION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 4, 2010
app pub date -
Feb 26, 2007
filing date -
Feb 27, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

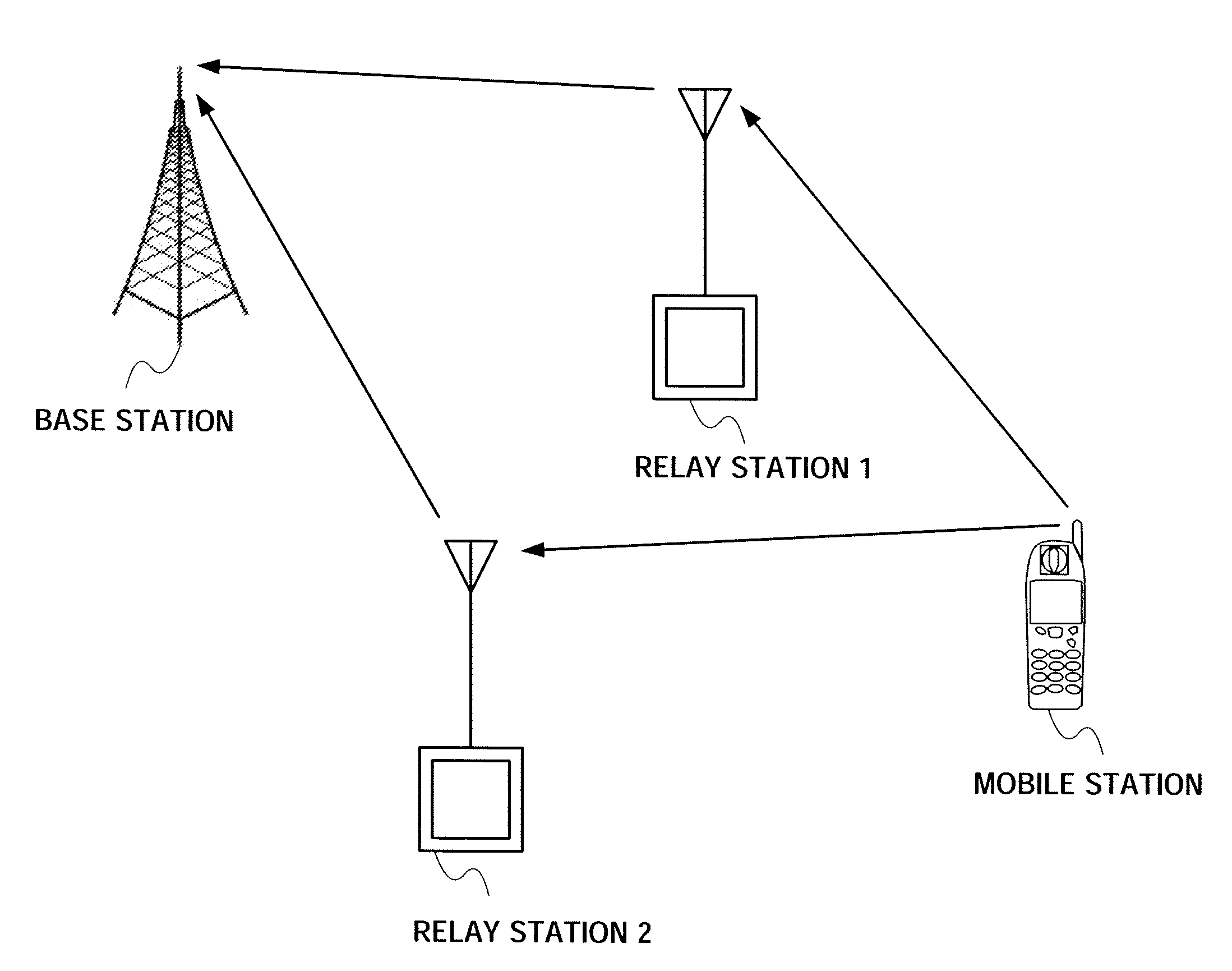

A relay transmission method for communication between a base station and a mobile station via a relay station while producing a diversity effect even if the relay station detects an error in the relay signal. A decoding section (104) of the relay station used in this method performs error-correction decoding of a systematic bit by using a parity bit by repetition decoding such as turbo decoding and acquires the results of the decoding composed of the systematic bit having undergone the error-correction decoding. An error judging section (105) judges whether or not any error is present in the decoding results. Coding section (106) performs error-correction coding of the decoding results and acquires the error-correction coded systematic bit and parity bit. A selecting section (107) selects either the decoding results inputted from the decoding section (104) or a bit sequence inputted from the coding section (106) according to the result of the judgment by the error judging section (105) and outputs the selected one to a modulating section (108). A transmission control section (112) controls the operation of a radio transmitting section (109) according to the SNR of the received data symbol and the result of the judgment by the error judging section (105).
First Claim
Other Claims data not available
