Device for Locking a Vehicle Seat
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Oct 28, 2010
app pub date -
Apr 23, 2010
filing date -
Apr 24, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

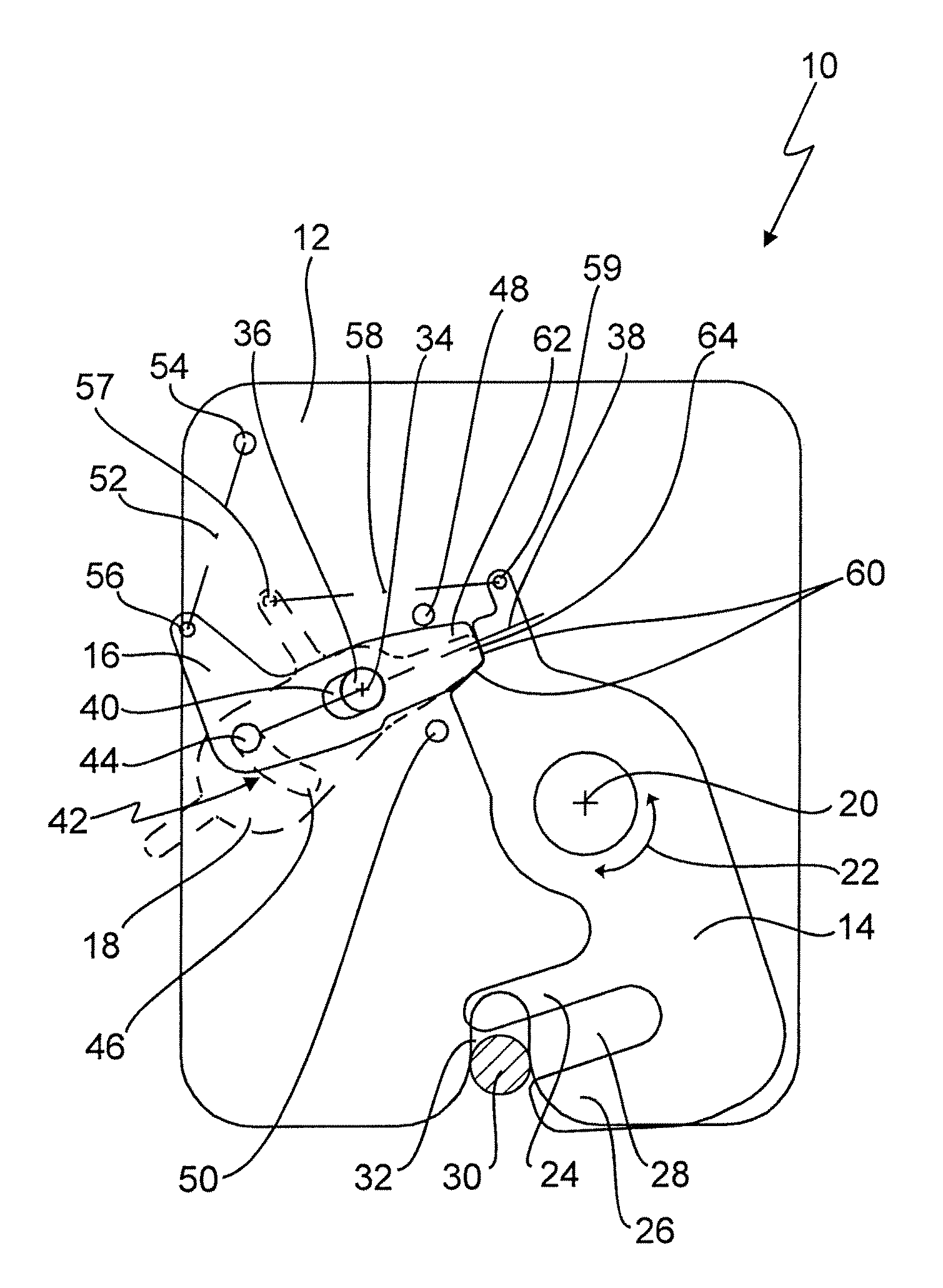

A device for locking a vehicle seat comprises a locking pawl which may be pivoted about a first pivot axis, and which is in engagement with a fitting part in a closed position and is released from the fitting part in an open position, and a locking element which may be pivoted about a second pivot axis, the locking element, in a first pivoted position being in contact with the locking pawl and clamping said locking pawl into the closed position, and in a second pivoted position releasing the locking pawl, so that the locking pawl may adopt its open position. The locking element is additionally movable in a translatory manner, and a clamping element is associated with the locking element, which moves the locking element in the first pivoted position thereof in a translatory manner increasingly against the locking pawl until the locking pawl is clamped into the closed position.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| DE | B4 | DE102009019510 | Apr 24, 2009 |
| CN | B | CN101870267 | Apr 23, 2010 |
International Classification(s)
- 2010 Application Filing Year
- F16B Class
- 781 Applications Filed
- 379 Patents Issued To-Date
- 48.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- F16B Class
- 3.93 % this patent is cited more than
- 15 Age
