Connecting Structure for Exteriorly Connecting Battery Cells
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 28, 2009
filing date -
Apr 5, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

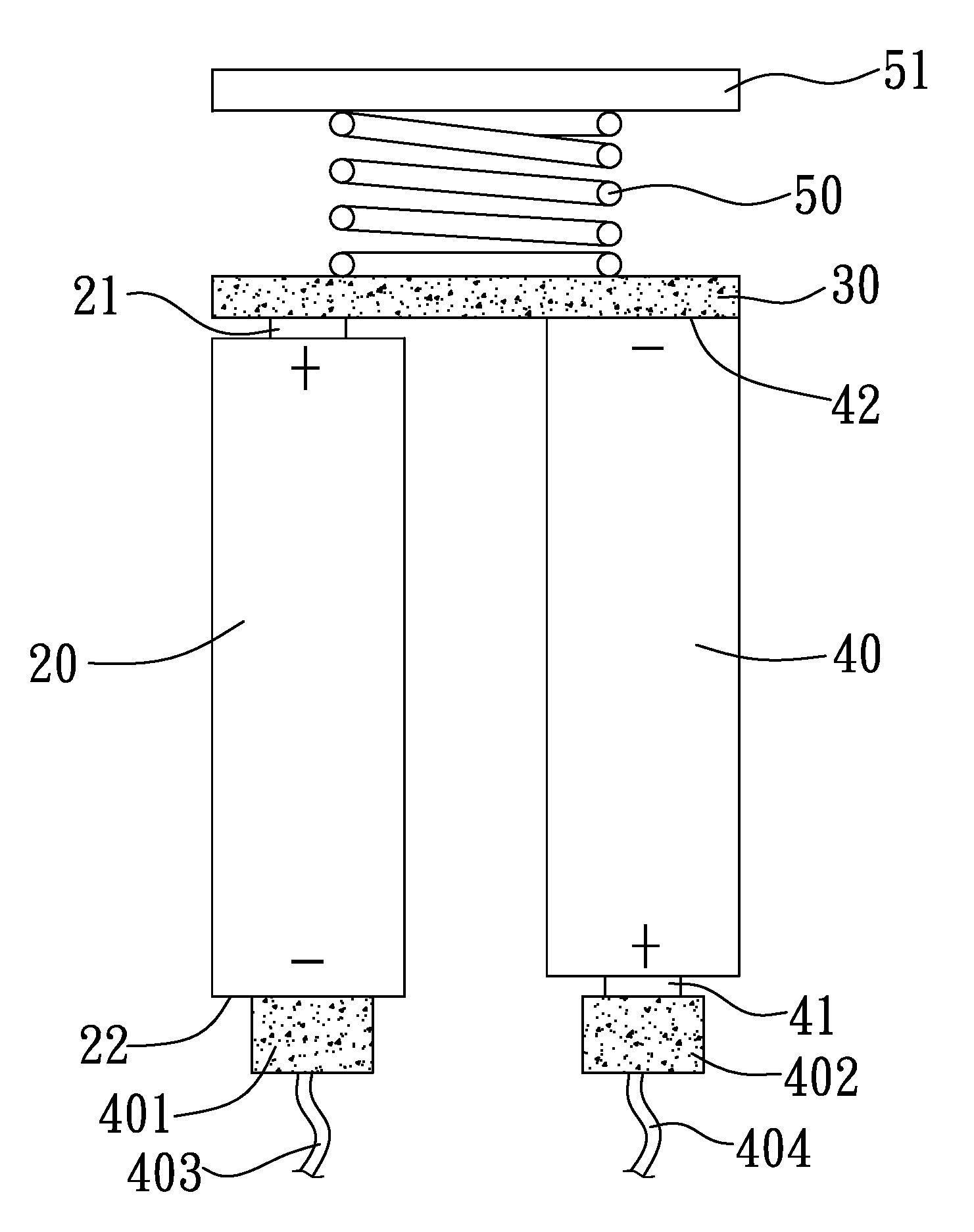

A connecting structure for exteriorly connecting battery cells comprises at least one connecting graphite alloy block serving as a bridge for electrical connection between two battery cells in series or parallel configuration. The connecting graphite alloy block is directly connected to nickel-metal or nickel-plated electrode terminals of the battery cells in a close contact manner to realize a connection with high electric conductivity among the cells without utilization of conventional welding procedures. The connecting graphite alloy block is less expensive and less sensitive to oxidation; whereas, the connecting graphite alloy block and the positive as well as negative electrode terminals of the battery cells both being made of the nickel-plated metal will dissolve into each other while in mutual contact forming a carbon-nickel miscible alloy, thus ensuring a smooth large-current discharge because of the reduction in resistance of external connection.
First Claim
Other Claims data not available
