Pelton turbine wheel, method for making same and pelton turbine including such wheel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 24, 2013
Grant Date -
Oct 7, 2010
app pub date -
Oct 29, 2008
filing date -
Oct 30, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

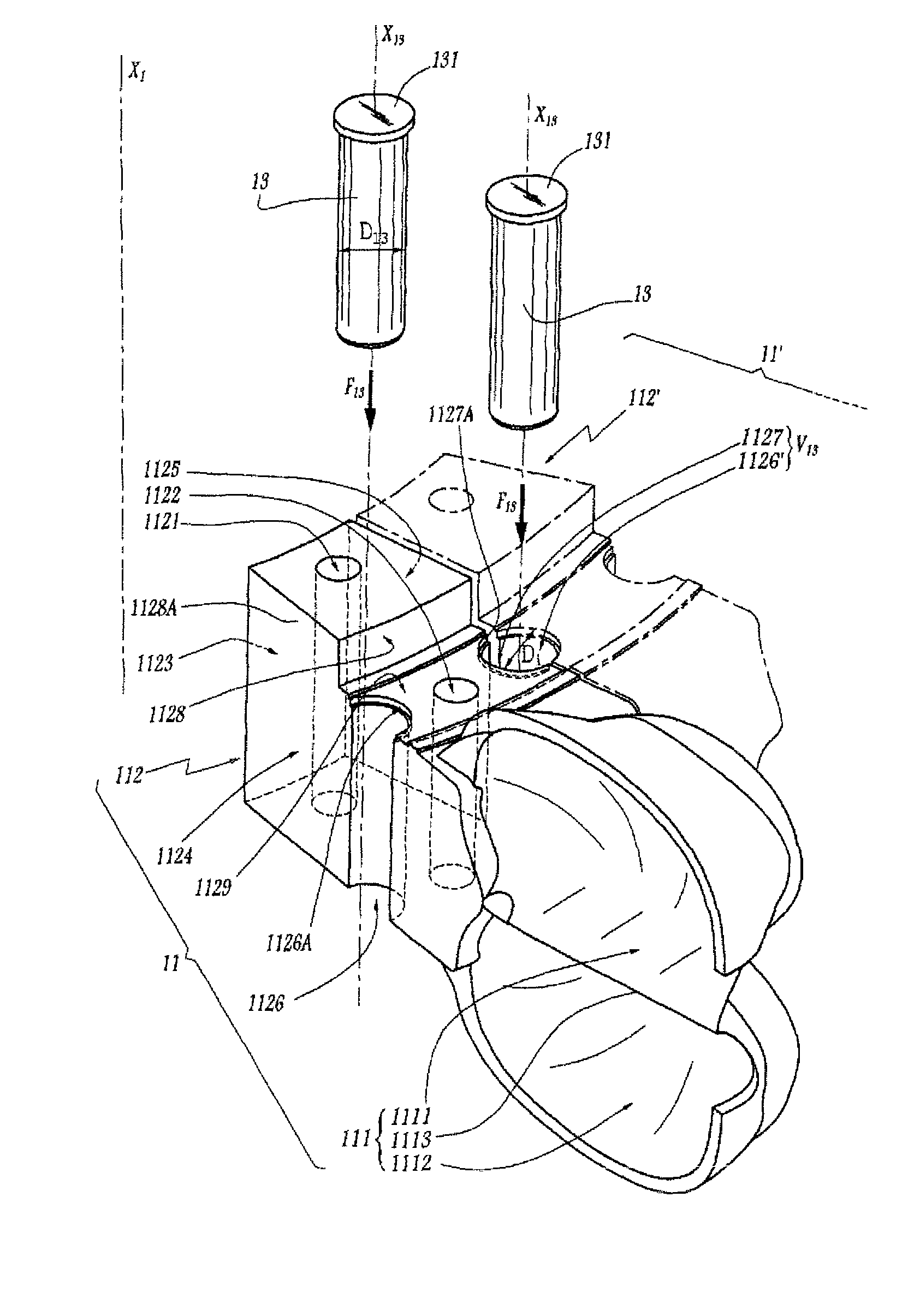

The invention relates to a Pelton turbine that comprises a plurality of sub-assemblies arranged about the rotation axis of the wheel and each including a bucket (111) and an anchoring leg (112). At least one blocking pin (13) is provided in a direction (X13) parallel to the rotation axis (X1) of the wheel between two adjacent anchoring legs (112, 112′), wherein said pin is inserted into two housings (1126, 1127) respectively formed in the two anchoring legs (112, 112′). According to the method of the invention, the blocking pin (13) is placed by inserting the same into the two housings (1126, 1127) of two adjacent anchoring legs (112, 112′). The pins are placed into the housings with a clearance, thereby allowing the relative sliding of the anchoring legs (112, 112′) before blocking them with the pins (13).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2008 Application Filing Year
- F03B Class
- 328 Applications Filed
- 187 Patents Issued To-Date
- 57.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F03B Class
- 7.69 % this patent is cited more than
- 12 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 24, 2025 |
