VEHICLE STABILIZER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 10, 2010
filing date -
Feb 21, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

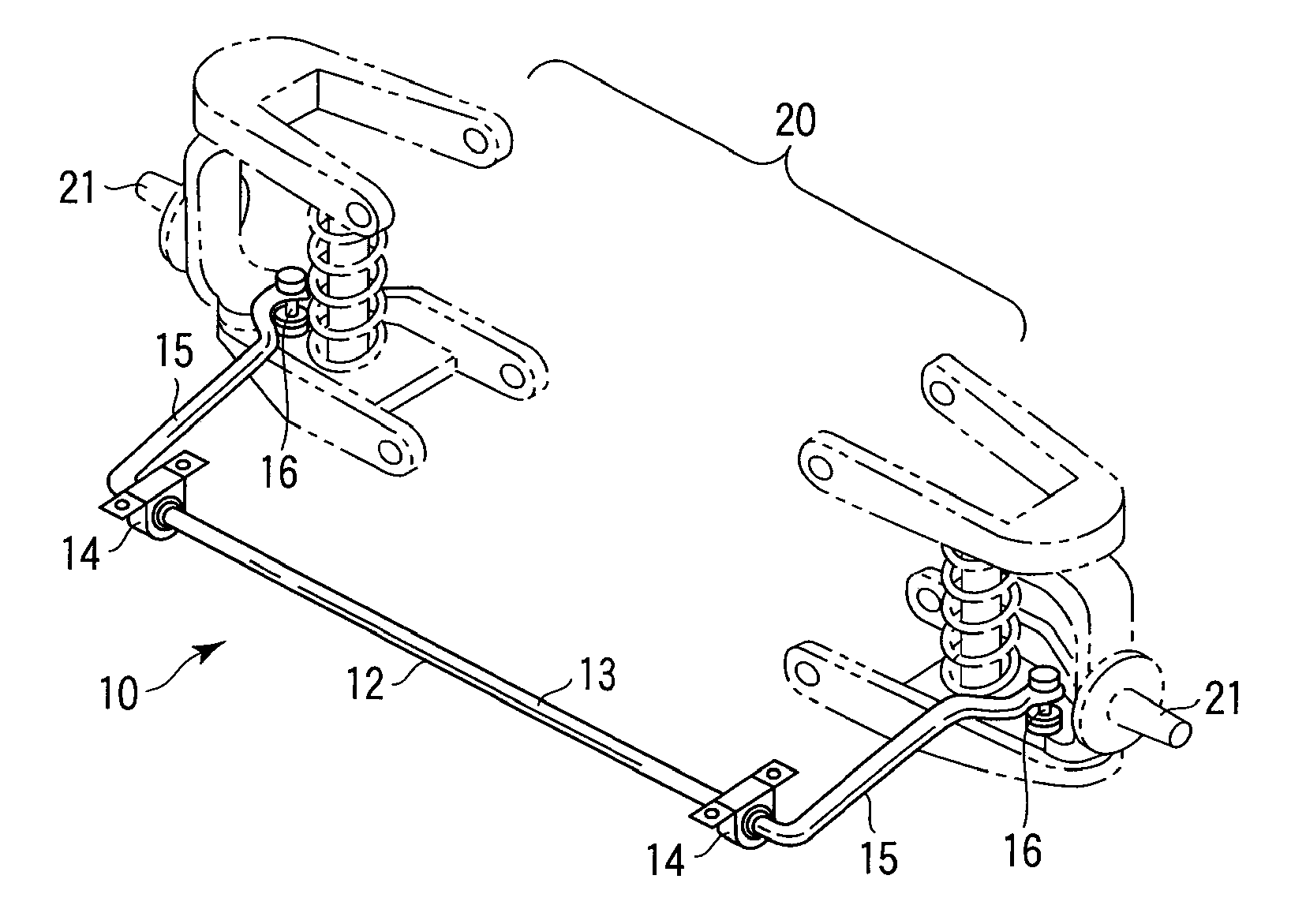

A stabilizer bar is intended for use in a vehicle, and a torsion part of the stabilizer bar is fixed to the vehicle body by a fixing member. A resin sheathing is provided integrally on an outer peripheral surface of the stabilizer bar. The fixing member is composed of the sheathing, a rubber bush disposed on the outer periphery of the sheathing, and a mounting fixture for mounting the rubber bush on the vehicle body side so as to cover the outer periphery of the rubber bush. The sheathing and the rubber bush are immovably assembled to each other. Thus, there may be provided a vehicle stabilizer, highly durable, easily mountable and replaceable, low-cost, and highly operable.
First Claim
Other Claims data not available
