Method Of Forming A Paste Pattern
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 16, 2010
app pub date -
Feb 12, 2010
filing date -
Feb 16, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

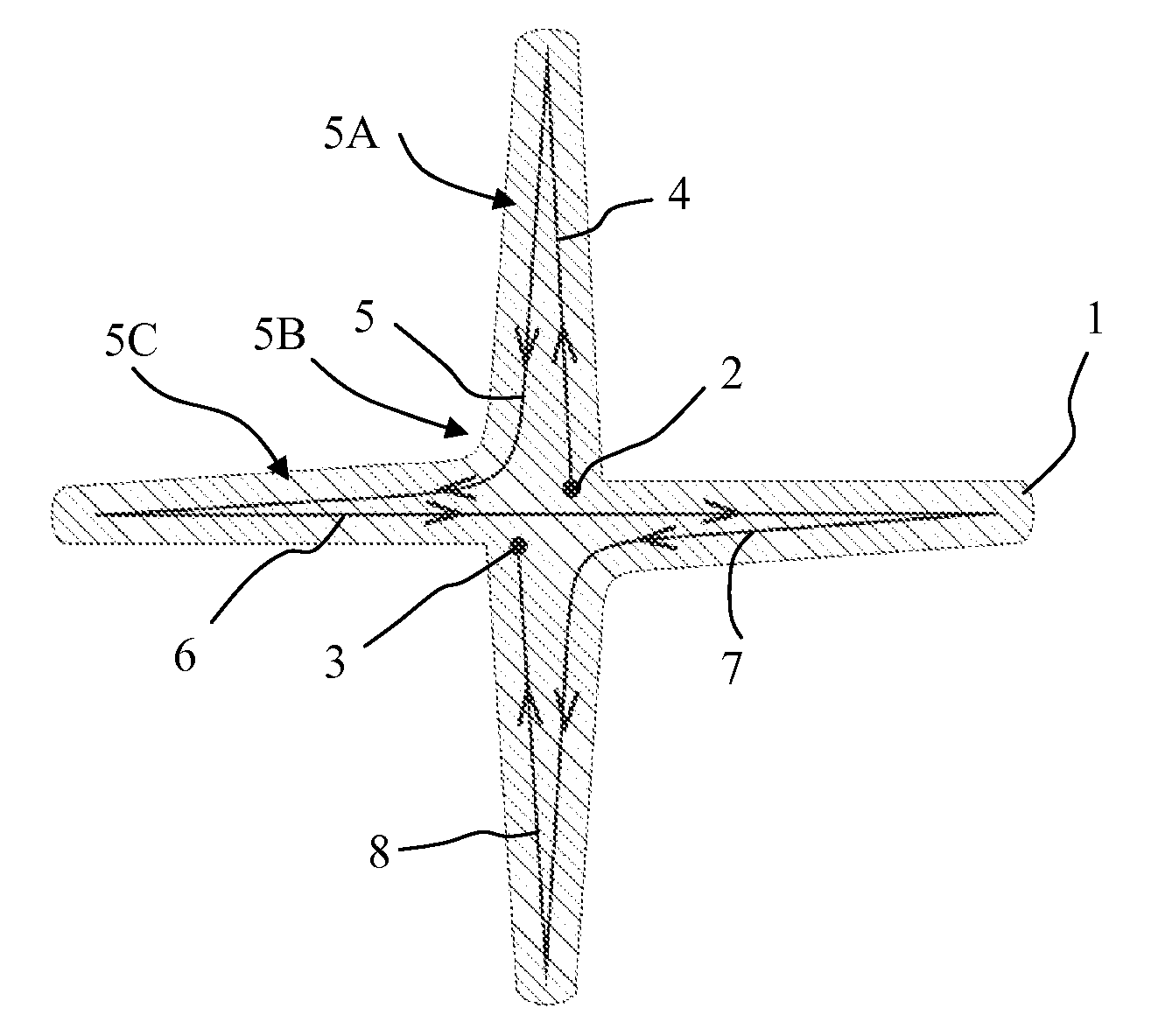

A method of forming a paste pattern on a surface of a body comprises moving a writing nozzle delivering the paste relatively to the surface of the body along a sequence of segment lines following each other. Each segment line has a start point and an end point and at least one of the segment lines has a section with a curvature. The curvature of each segment line having a section with a curvature changes continuously. Said moving comprises stopping the writing nozzle at the end point of each segment line.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05D Class
- 0 % this patent is cited more than
- 15 Age
