Circuit Board Retainer with Insertion and Extraction Lever
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 26, 2010
app pub date -
Sep 24, 2009
filing date -
Sep 25, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

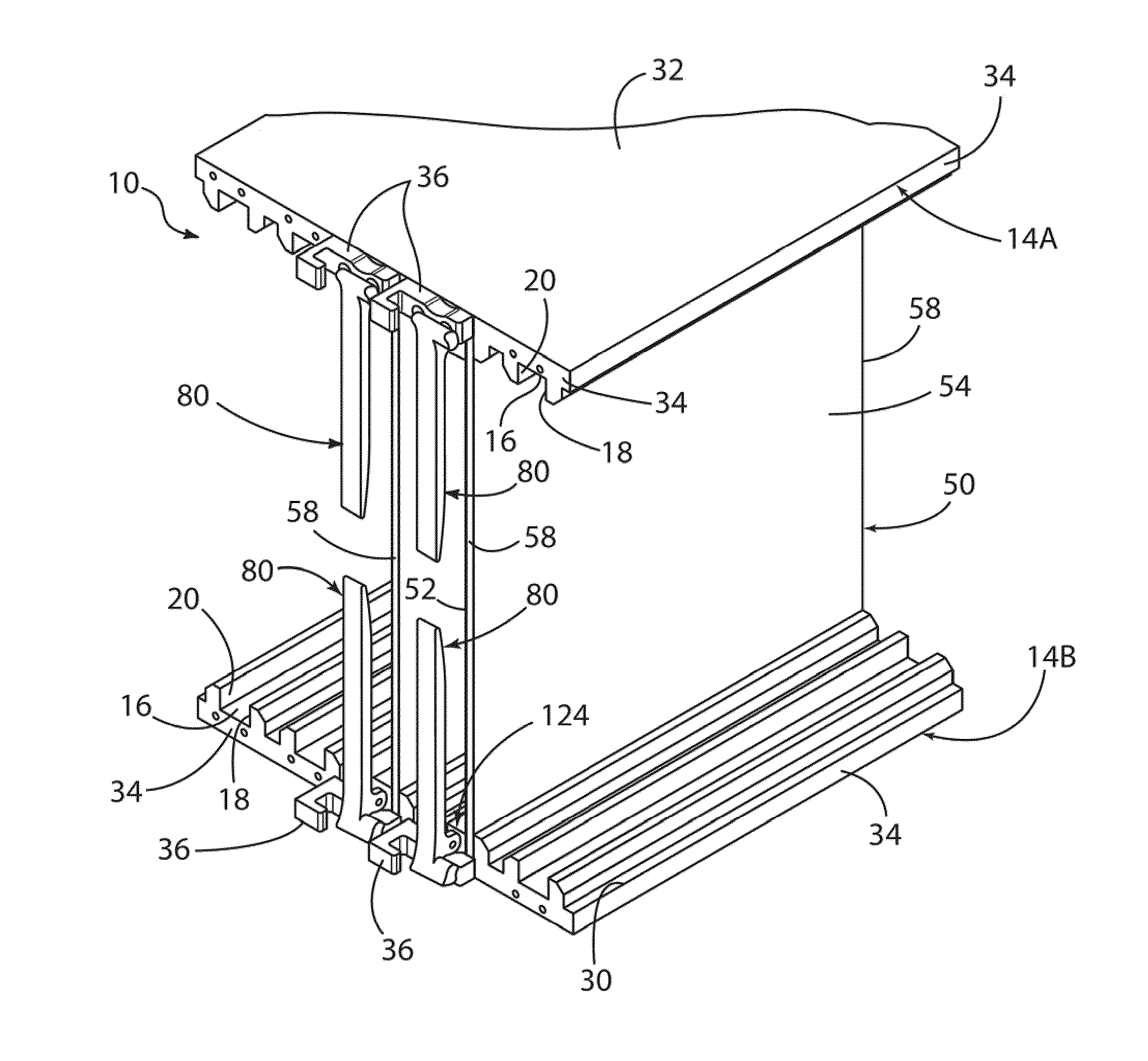

A lever assembly for a retainer which retains a circuit board in an enclosure. The retainer includes a rotatable camshaft. The lever assembly includes a bracket on the enclosure and a rotatable lever at the end of the camshaft. The lever includes a distal arm which engages with the bracket to insert and extract the circuit board into and from the enclosure. A spring element, coupled to either the lever or the end of the camshaft, creates a spring resistance force which biases the lever against the camshaft. In one embodiment, the spring element is a clip on the camshaft which exerts a compressive spring force against the lever. In another embodiment, a spring pin is coupled to the lever and exerts a compressive spring force against the camshaft.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H05K Class
- 1.76 % this patent is cited more than
- 15 Age
