Method and Apparatus for Small Die Low Power System-on-chip Design with Intelligent Power Supply Chip
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 3, 2010
filing date -
Apr 20, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

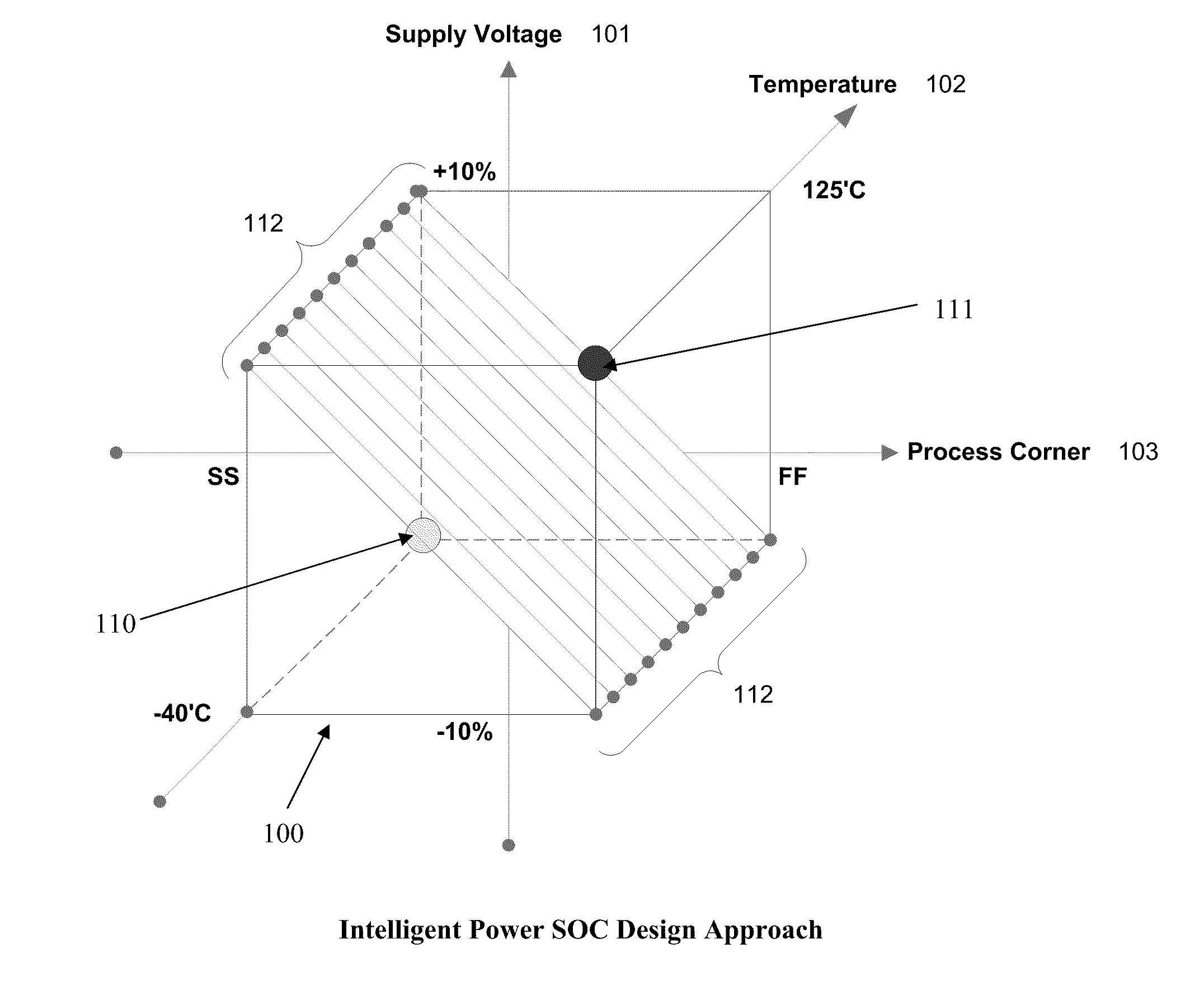

A method and system of system-on-chip design that provides the benefits of reduced design time, a smaller die size, lower power consumption, and reduced costs in chip design and production. The process seeks to remove the worst performance and worst power case scenarios from the design and application phases. This is accomplished by planning the power supply voltage in the design phase along with its tolerance with process corner and temperature combinations. The established plan is then applied with communications between power supply integrated circuits and load system-on-chip.
