LIQUID DAMPER FOR REDUCING VERTICAL AND/OR HORIZONTAL VIBRATIONS IN A BUILDING OR MACHINE STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 12, 2010
app pub date -
Sep 26, 2008
filing date -
Sep 27, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

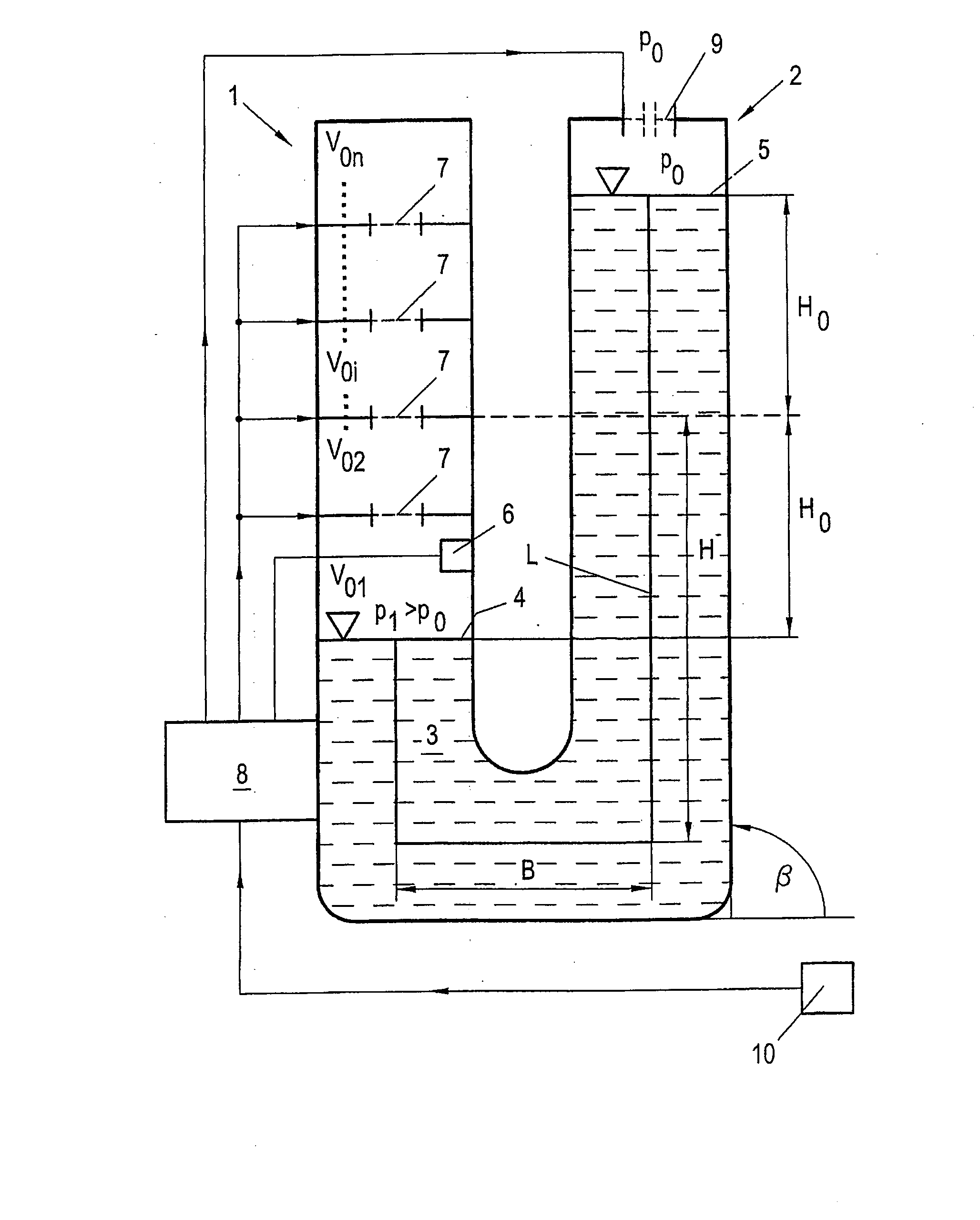

In a liquid damper for reducing vertical and/or horizontal vibrations in a building or machine structure, having at least two chambers (1, 2) partly filled with liquid (3), which communicate with one another at their lower ends, whereby at least one chamber (1) is sealed off in airtight manner at its upper end, so that a sealed air space (V.sub.0) is formed above the liquid (3), and at least one other chamber (2) is at least partly open at its upper end, the sealed air space (V.sub.0) is divided into at least two partial air spaces (V.sub.01 to V.sub.0n), whereby one partial air space (V.sub.N) lies directly above the liquid (3), and one or more partial air spaces (V.sub.02 to V.sub.0n) are connected with the partial air space (V.sub.01) that lies directly above the liquid (3), or with the adjacent partial air space (V.sub.02 to V.sub.0n), in each instance, by way of openings (7), whereby these openings (7) can be closed off, to form a seal, independent of one another.
First Claim
Other Claims data not available
