Cargo handling device for vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 13, 2011
Grant Date -
Aug 5, 2010
app pub date -
Jan 30, 2009
filing date -
Jan 30, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

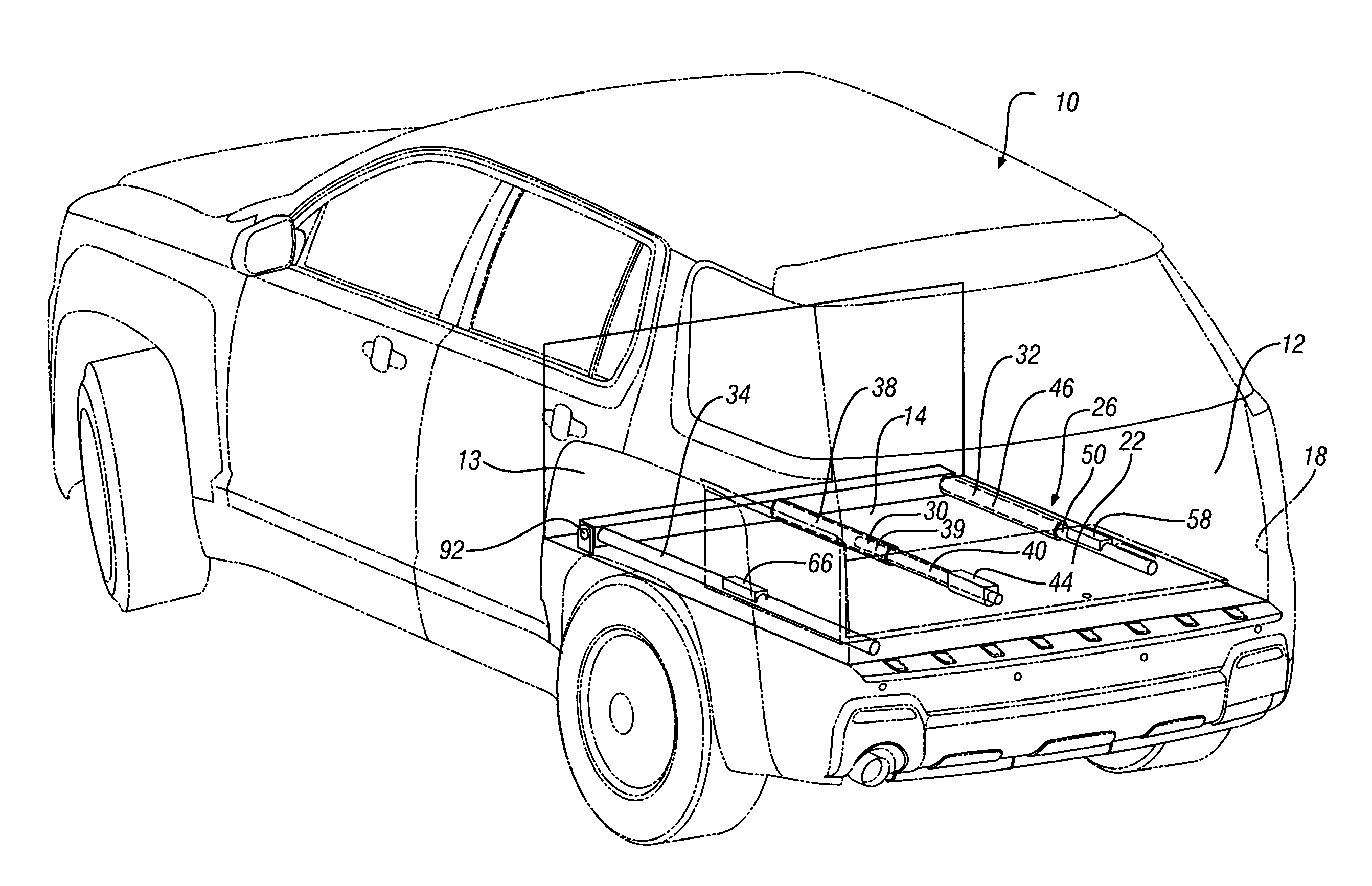

A cargo handling device lifts a cargo to and from a cargo floor. A linear track mechanism is mounted on the cargo floor and has an extended position projecting through a vehicle opening. A cargo platform is mounted on the linear track mechanism so that the cargo platform moves between a horizontal stored position overlying the cargo floor and a horizontal extended position deployed through the vehicle opening. A pivot acts between the cargo platform and the linear track mechanism so that upon the cargo platform reaching the horizontal extended position the cargo platform can be pivoted between the horizontal extended position and a generally vertical position in which one end of the cargo platform is adjacent the ground so that a cargo resting on the ground can be positioned against the cargo platform. A restraint is provided for restraining the cargo on the cargo platform.
First Claim
Other Claims data not available
