Parallel kinematic structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 24, 2015
Grant Date -
Aug 5, 2010
app pub date -
Oct 31, 2006
filing date -
Oct 31, 2006
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

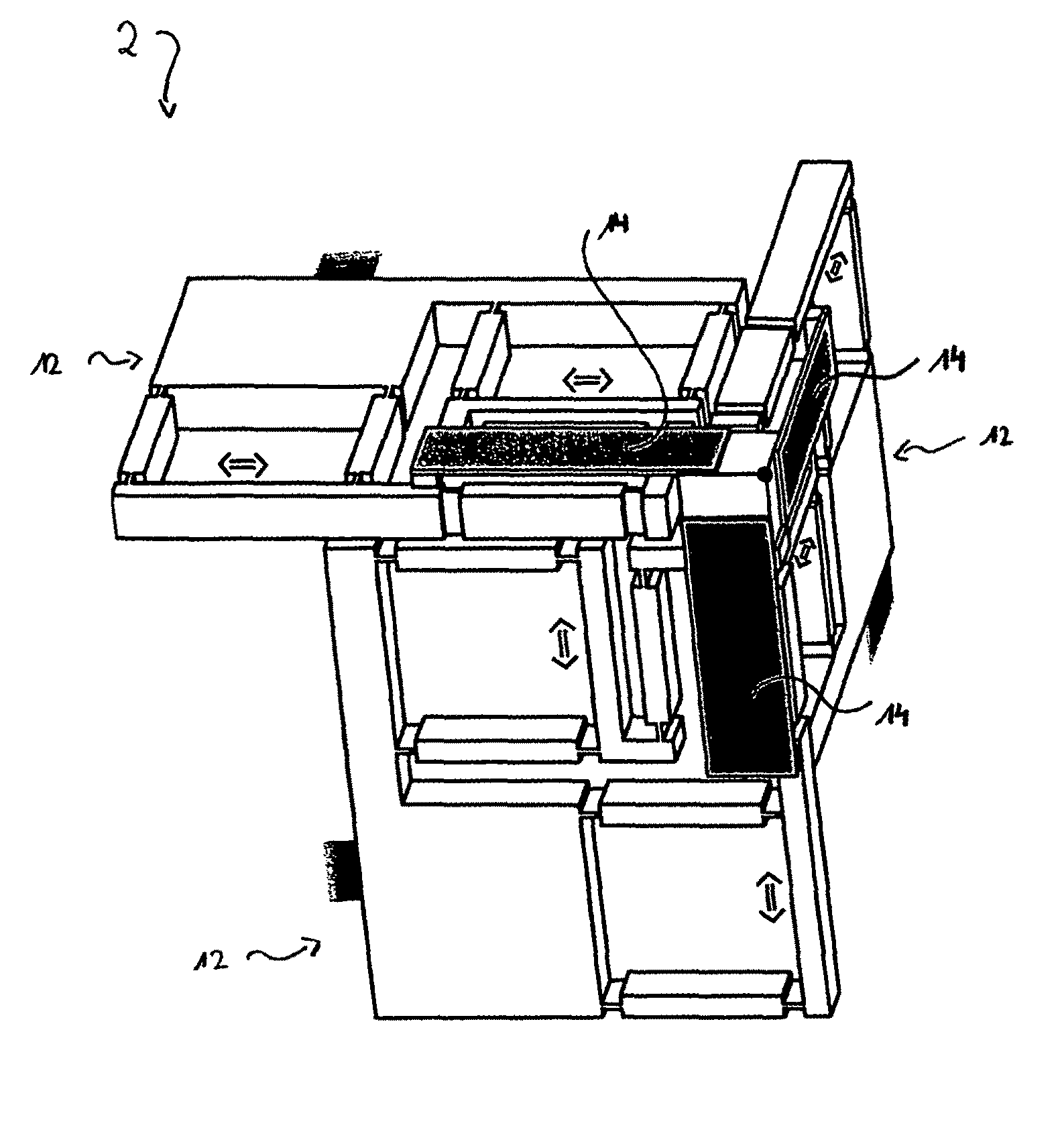

A parallel kinematic structure comprises at least two kinematic chains being functionally arranged in parallel. Each of the two kinematic chains has, at a moveable end thereof, at least one degree of freedom, and comprising a passive anti-planar joint arrangement having a translational degree of freedom and two rotational degrees of freedom. Each anti-planar joint arrangement has an input section and an output section. At least one of the kinematic chains comprises a planar joint arrangement having at least one of at least one translational degree of freedom and a rotational degree of freedom, the planar joint arrangement having an output section. Further, the planar joint arrangement is adapted for active movements in at least one of its degrees of freedom. The input section of the anti-planar joint arrangement and the output section of the respective planar joint arrangement are coupled. The parallel kinematic structure further comprises a moveable end-effector section coupled with the output sections of the anti-planar joint arrangements.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25J Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 24, 2026 |
