RADIALLY ELASTIC COUPLING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 22, 2010
app pub date -
Jan 20, 2010
filing date -
Jan 20, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

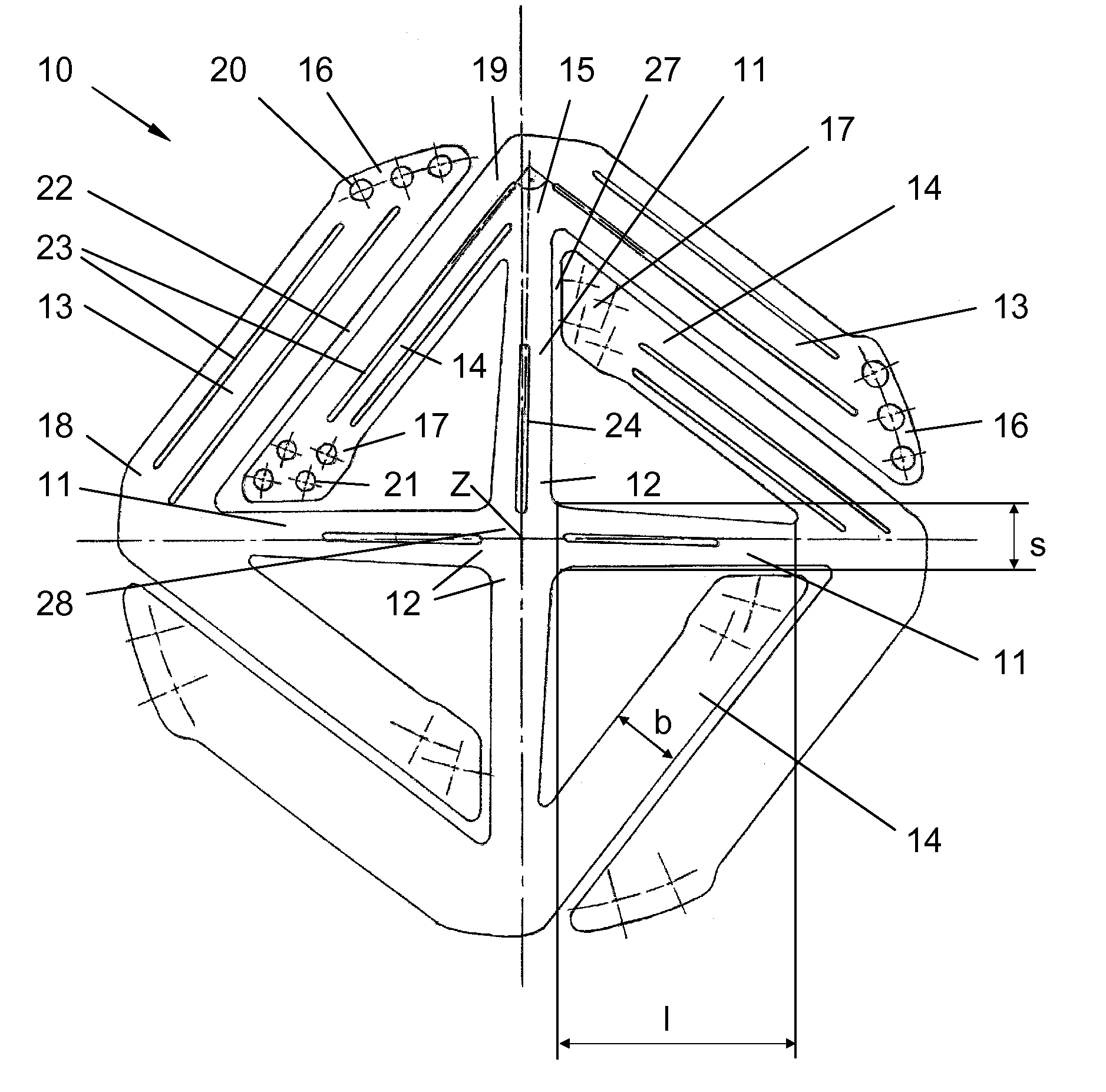

A radially elastic coupling comprises several radial braces, each comprising a radially inner end portion and a radially outer end portion, as well as a plurality of jibs bent towards the braces, which in turn each comprise a free end portion and a bound end portion. The inner end portions of the braces are connected to one another. The jibs are each connected with a bound end portion to an outer end portion of a brace. The free end portions of a first group of jibs are formed for connection to a first rotating machine part, whereas the free end portions of a second group of jibs are formed for connection to a second rotating machine part. All the braces and jibs are arranged in a common plane and made of one single piece. Jibs pointing to one another, of adjacent braces are radially interlaced.
First Claim
Other Claims data not available
