Fabric with woven markers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2018
Grant Date -
Jul 8, 2010
app pub date -
May 24, 2007
filing date -
May 24, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

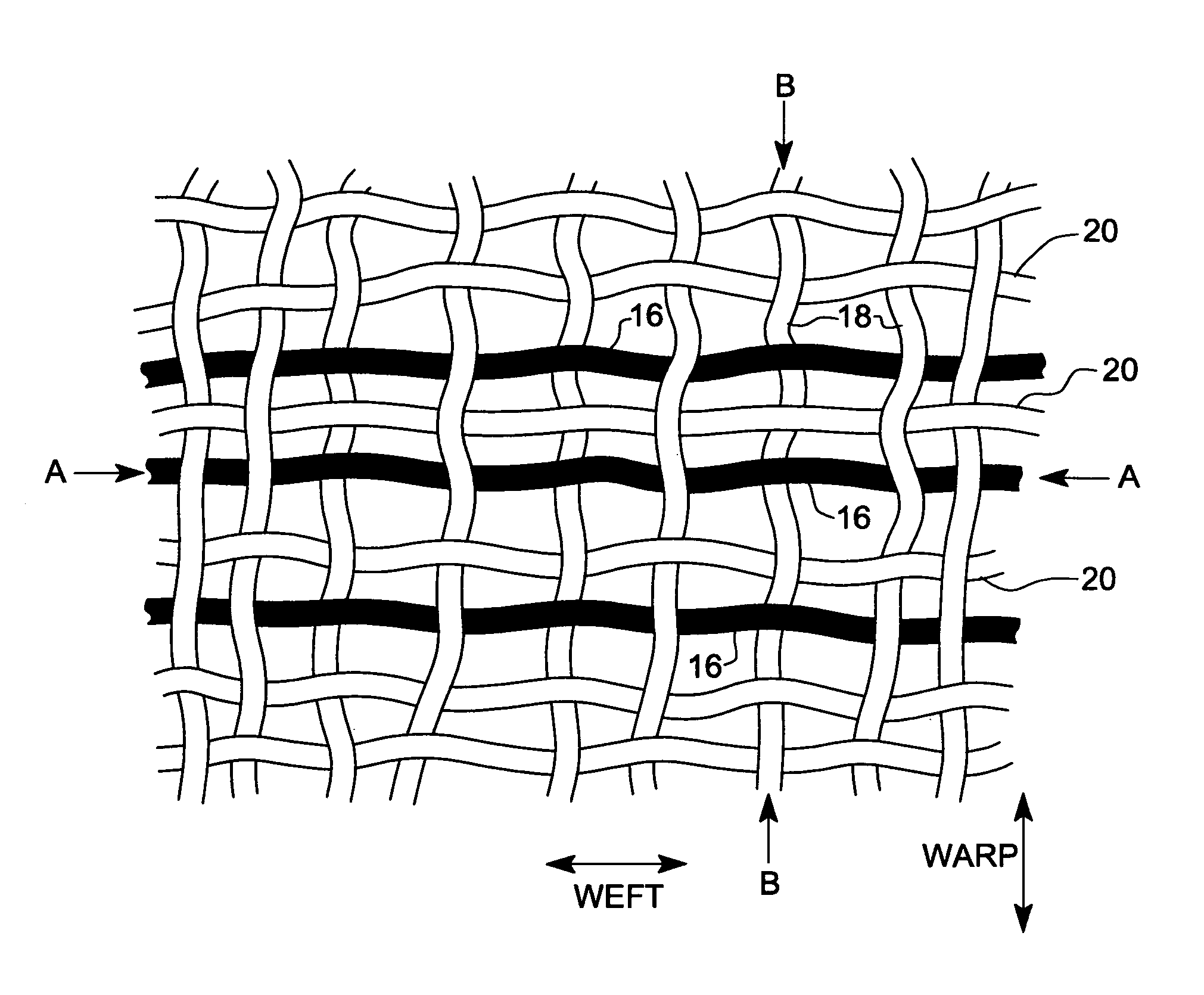

Markings visible by automatic optically guided cutting equipment are provided in a fabric such as a double layer fabric for one-piece-woven air bags by groups of black marker weft yarns which contrast with the other (white) weft yarns and warp yarns. The marker weft yarns emerge onto the upper face of the fabric only in predetermined marker areas spaced apart in the warp direction by other white weft yarns to afford optically identifiable markings spaced apart along said weft yarns and spaced apart along the direction of the warp yarns. The arrangement avoids the need for black warp yarns and thus avoids the inconveniences and loom down-time associated with required alterations to the locations of such optically detectable marker areas in the fabric web.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2007 Application Filing Year
- B26D Class
- 317 Applications Filed
- 114 Patents Issued To-Date
- 35.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B26D Class
- 50.10 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 2, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 2, 2030 |
