Compact Winding Mechanism for Crossbow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 8, 2010
app pub date -
Jan 7, 2009
filing date -
Jan 7, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

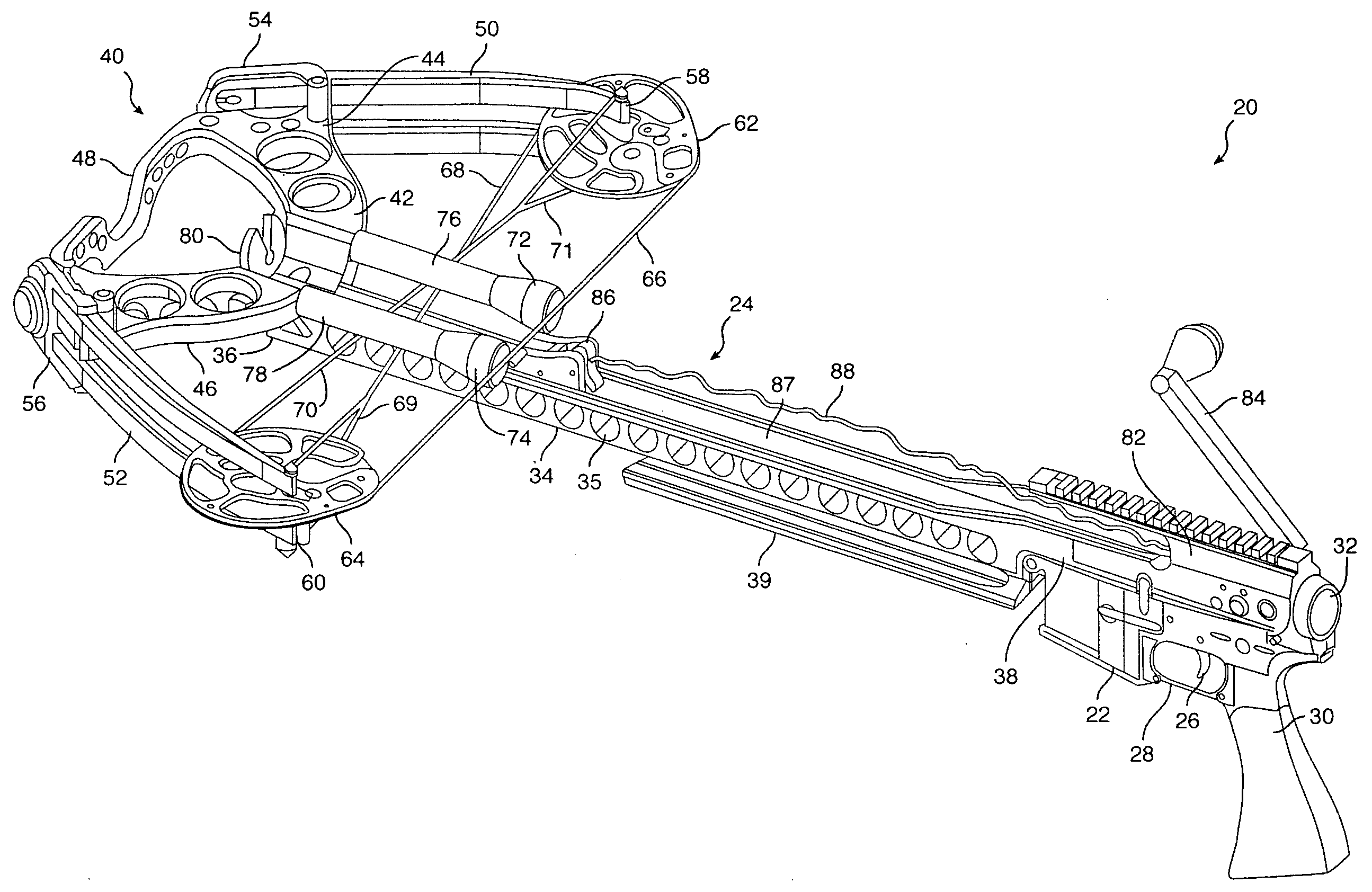

A crossbow includes an elongated frame coupled to a riser at a first end thereof and attached to an upper housing at its second end generally above the trigger region. The riser supports a pair of flexible limbs, and a bowstring extends between such limbs. A bowstring retractor is provided within the upper housing and includes a rope spool used to wind a retractor rope for retracting the bowstring. First and second spool gears surround the rope spool for rotation therewith. A spur gear mounted on a drive axle engages one of the spool gears, and a crank can be engaged with the drive axle. A pawl engages the other spool gear to prevent unintentional unwinding of the retractor rope from the rope spool. A pawl release member disengages the pawl from its associated spool gear. Drawing the bowstring beyond its full draw position also disengages the pawl.
