ORTHOPAEDIC CUTTING TOOL HAVING A CHEMICALLY ETCHED METAL INSERT AND METHOD OF MANUFACTURING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 29, 2008
filing date -
Dec 29, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

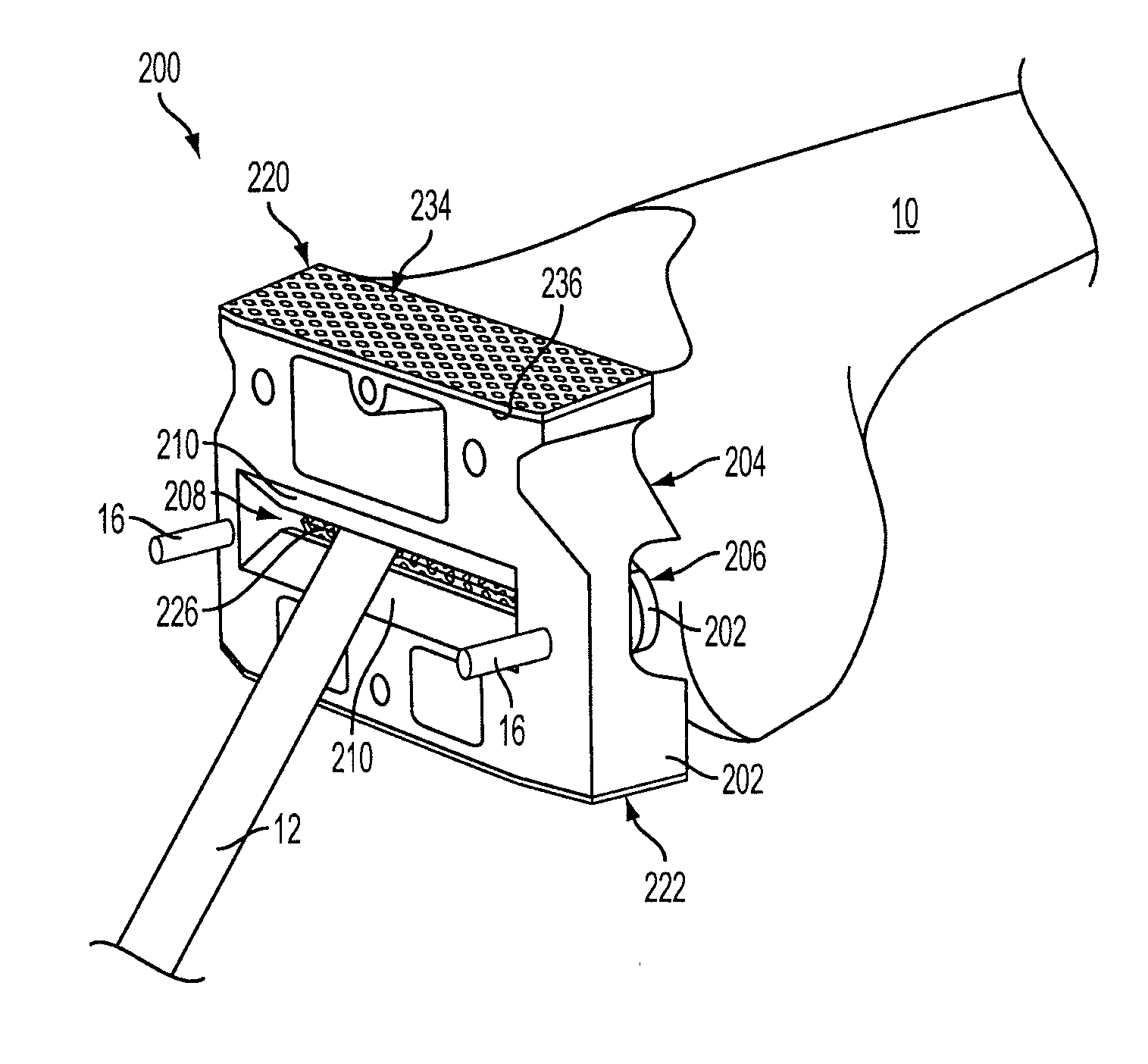

An orthopaedic surgical instrument comprising an orthopaedic cutting tool includes a metallic cutting insert configured to remove portions of a patient's bone and a body molded to the cutting insert. The cutting insert includes a plurality of chemically etched holes, and the body is molded to the cutting insert such that each of the plurality of chemically etched holes is at least partially filled by a portion of the body. The cutting insert may include a plurality of cutting teeth configured to remove portions of the patient's bone. A method of manufacturing an orthopaedic surgical instrument is also disclosed.
First Claim
Other Claims data not available
