THROTTLE VALVE BODY AND THROTTLE VALVE DEVICE HAVING THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jul 1, 2010
app pub date -
Dec 22, 2009
filing date -
Dec 26, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

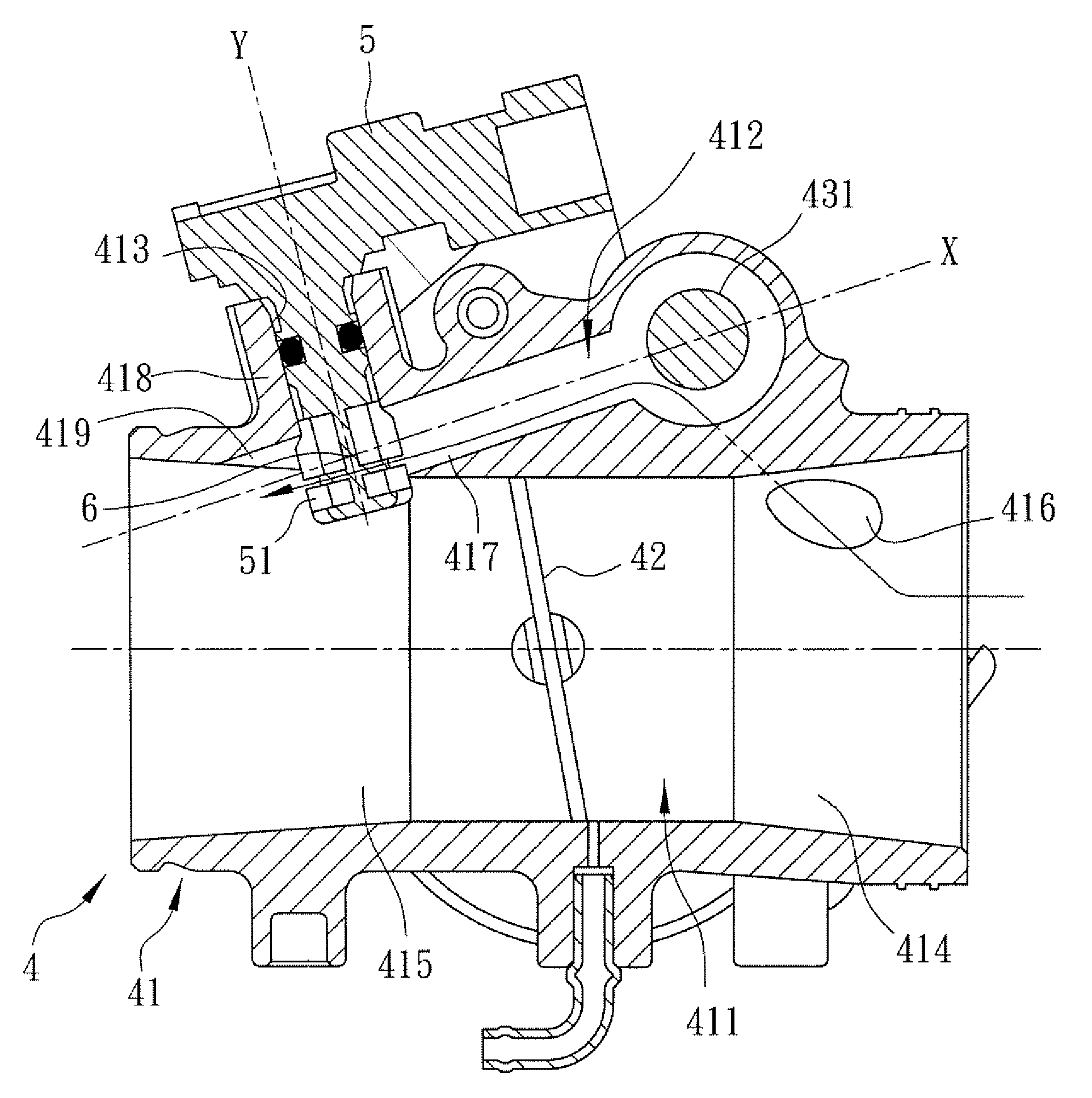

A throttle valve body includes a main body and a main valve. The main body includes an intake passage, a bypass passage, and a mounting hole. The intake passage has an upstream portion and a downstream portion. The bypass passage has an upstream section in fluid communication with the upstream portion, a downstream section extending along a first axis, and a downstream end in fluid communication with the downstream portion of the intake passage. The mounting hole extends along a second axis intersecting the first axis. The main valve is disposed in the intake passage to divide the intake passage into the upstream portion and the downstream portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02D Class
- 0 % this patent is cited more than
- 15 Age
