SENSING ELEMENT OF CORIOLIS FORCE GYROSCOPE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 10, 2010
filing date -
May 31, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

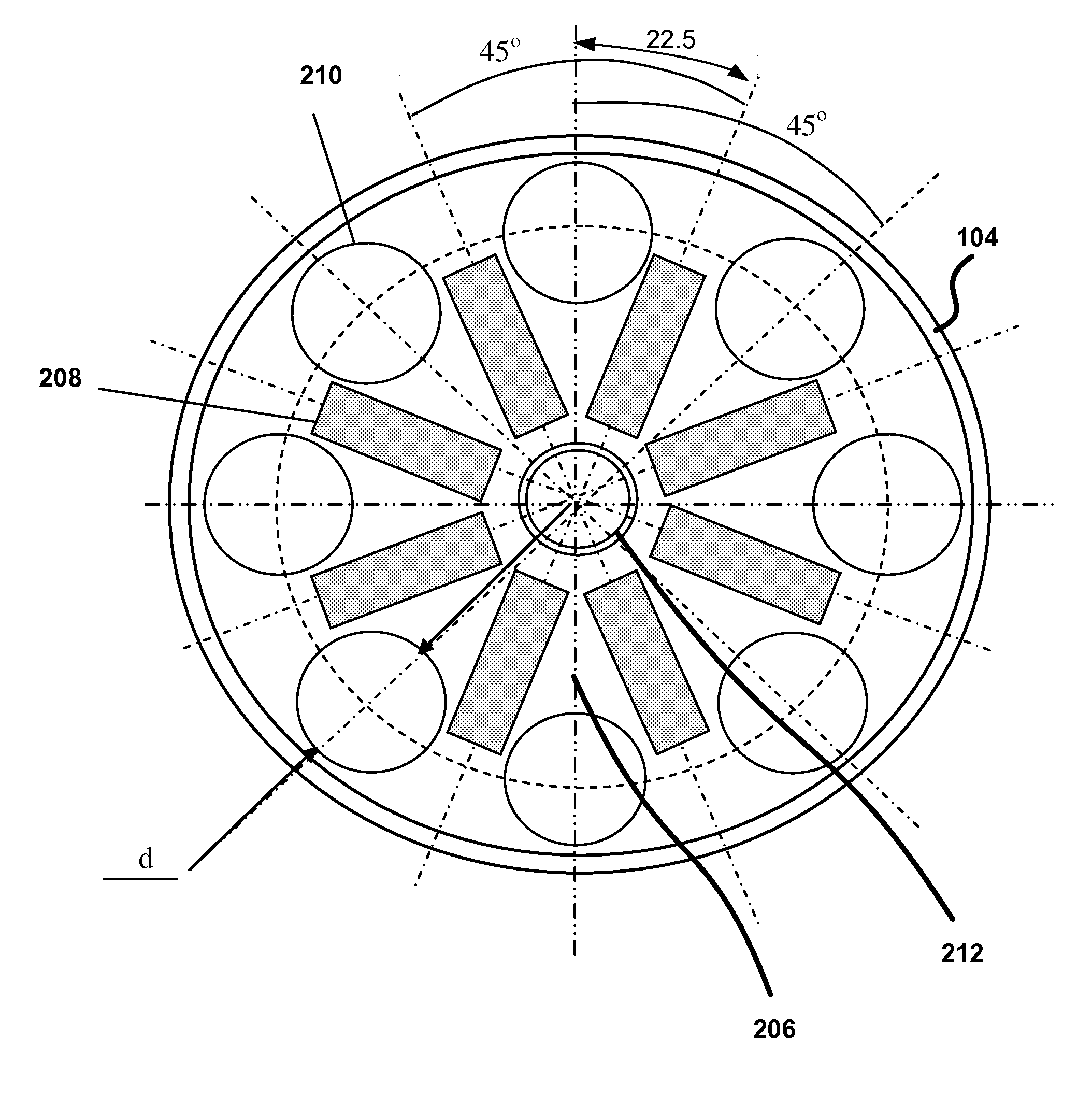

A gyroscope includes a ring-shaped resonator mounted in a housing, and a bottom plate attached to the resonator. A plurality of openings arranged substantially circumferentially on the bottom plate, and a plurality of grooves between the openings. A plurality of piezoelectric elements are located in the grooves. The resonator is substantially cylindrical. The plurality of openings are arranged substantially symmetrically. The piezoelectric elements can be outside the resonator, or inside the resonator. A cylindrical flexible suspension connecting the bottom to the resonator to the ring shaped resonator, wherein an average radius of the cylindrical flexible suspension and the ring shaped resonator, accounting for variation thickness of wall, is the same throughout.
