COMBINATION TABLE-MITER SAW WITH ADJUSTABLE LIGHT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 17, 2010
app pub date -
Dec 12, 2008
filing date -
Dec 12, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

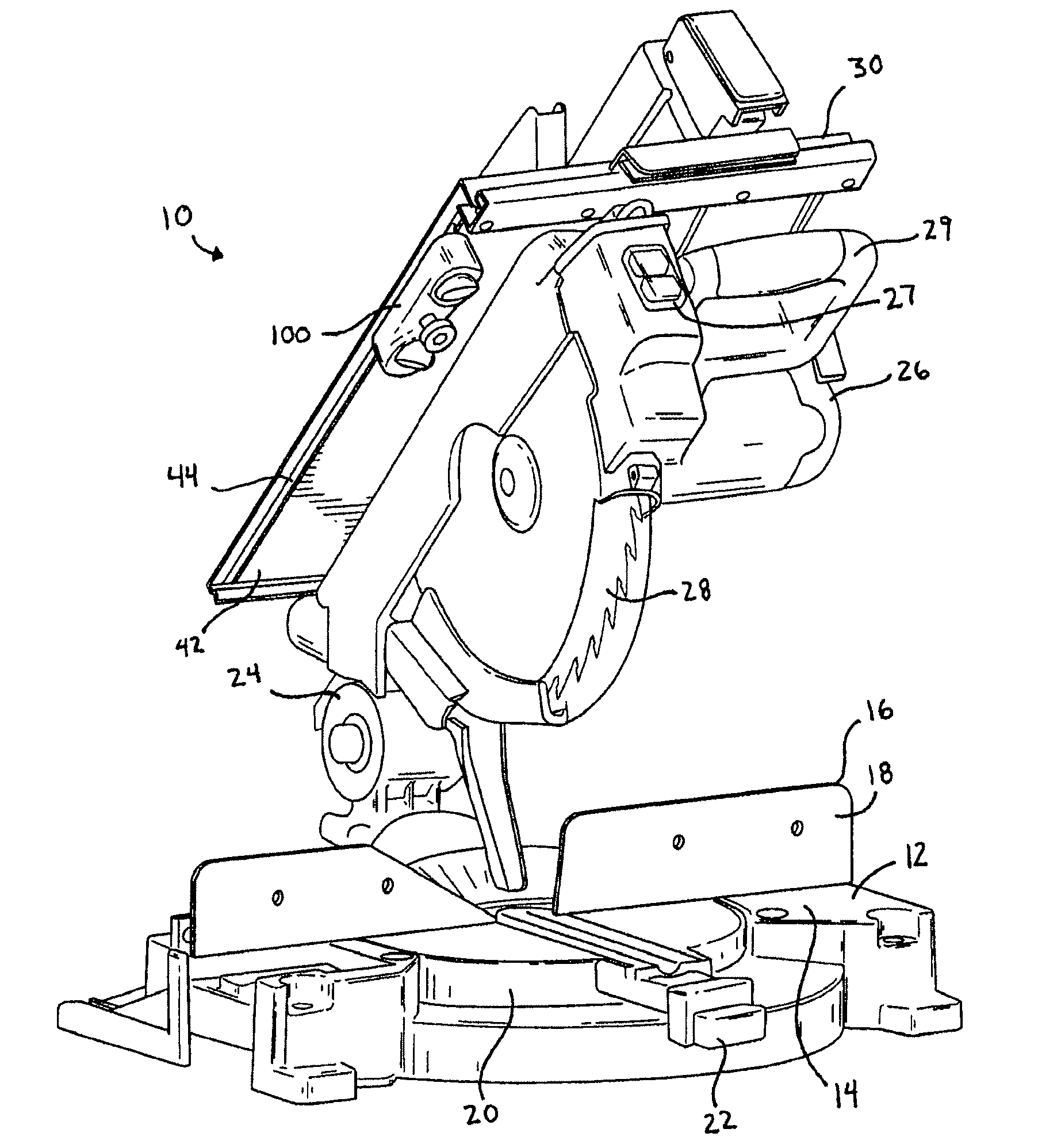

A combination table-miter saw includes a base, a support arm rotatable relative to the base and configured to support a cutting tool and a platform coupled to the support arm and moveable relative to the base between a first position, wherein the combination table-miter saw functions as a miter saw, and a second position, wherein the combination table-miter saw functions a table saw. The combination table-miter saw further includes an illumination device supported at an underside of the platform for illuminating the base when the platform is in the first position. The illumination device includes a housing movable relative to the platform in a direction substantially parallel with a cutting line defined by the cutting tool and at least one lamp assembly supported by the housing. The at least one lamp assembly has a light source and a reflector that is selectively adjustable relative to the housing for directing a beam of light emitting from the light source.
First Claim
Other Claims data not available
