IMAGE SENSOR HAVING CUT-OFF CORNERS, WITH A MULTIPLEXER BETWEEN TWO ADJACENT ROWS OF PIXELS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 10, 2010
app pub date -
Apr 29, 2009
filing date -
Apr 30, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

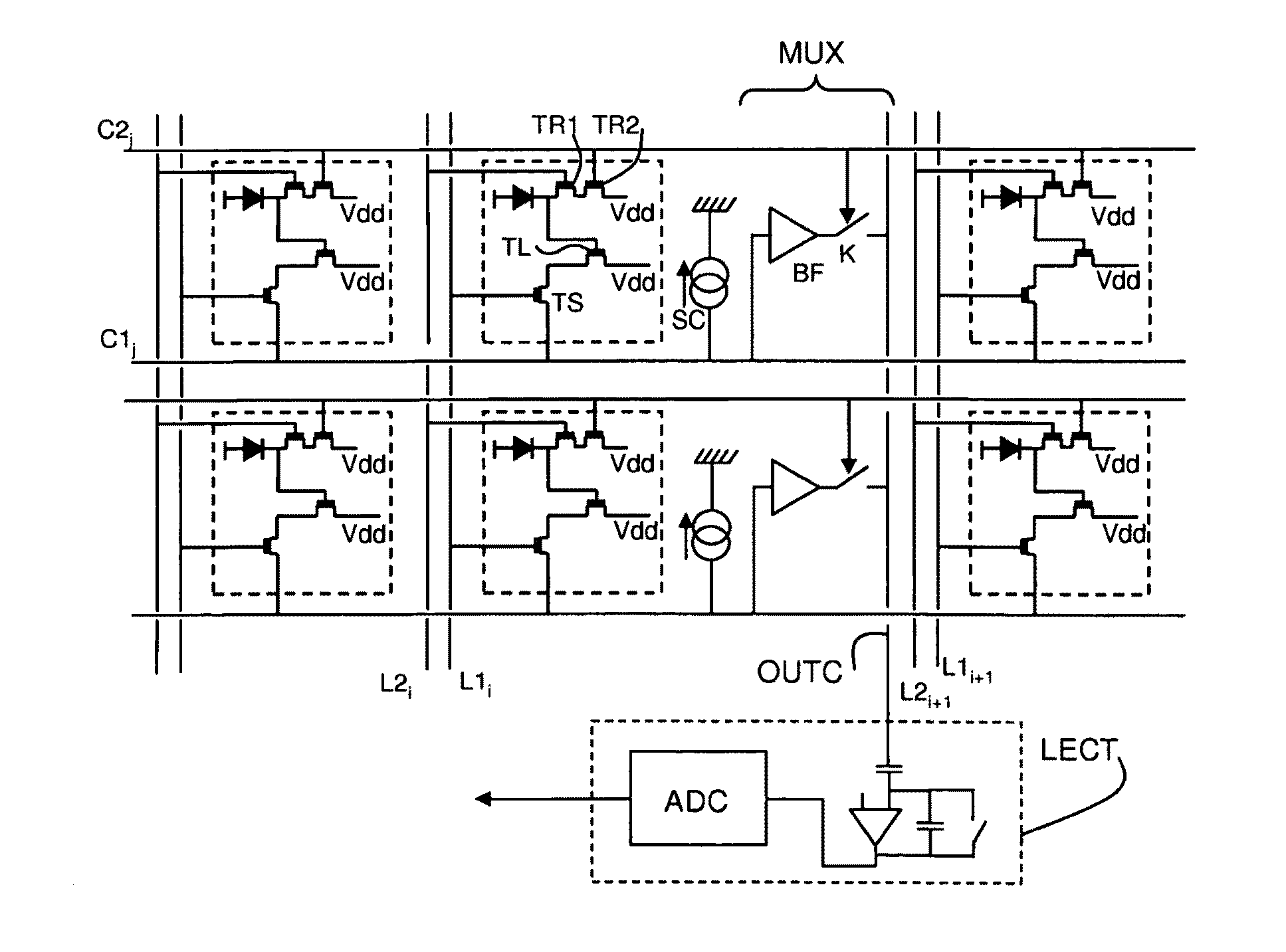

The invention relates to matrix image sensors. It applies most particularly to intraoral dental radiology sensors. The invention provides a sensor architecture comprising a column decoder controlling select conductors of a column, and a row decoder controlling select conductors of a row. The pixels of a column are connected to a signal conductor that extends along the column and goes toward an analog multiplexer extending within the pixel matrix between two rows of pixels of the matrix. The multiplexer is controlled via the column select conductors coming from the decoder and it transmits the signal from a signal conductor of a selected column to an output conductor extending parallel to the rows. A signal sampling circuit common to all the columns is connected at the end of the output conductor of the multiplexer. An increase in matrix area is achieved by in practice losing only a single image row.
