Dual Magnetron Sputtering Power Supply And Magnetron Sputtering Apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 10, 2010
app pub date -
Oct 26, 2007
filing date -
Oct 26, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

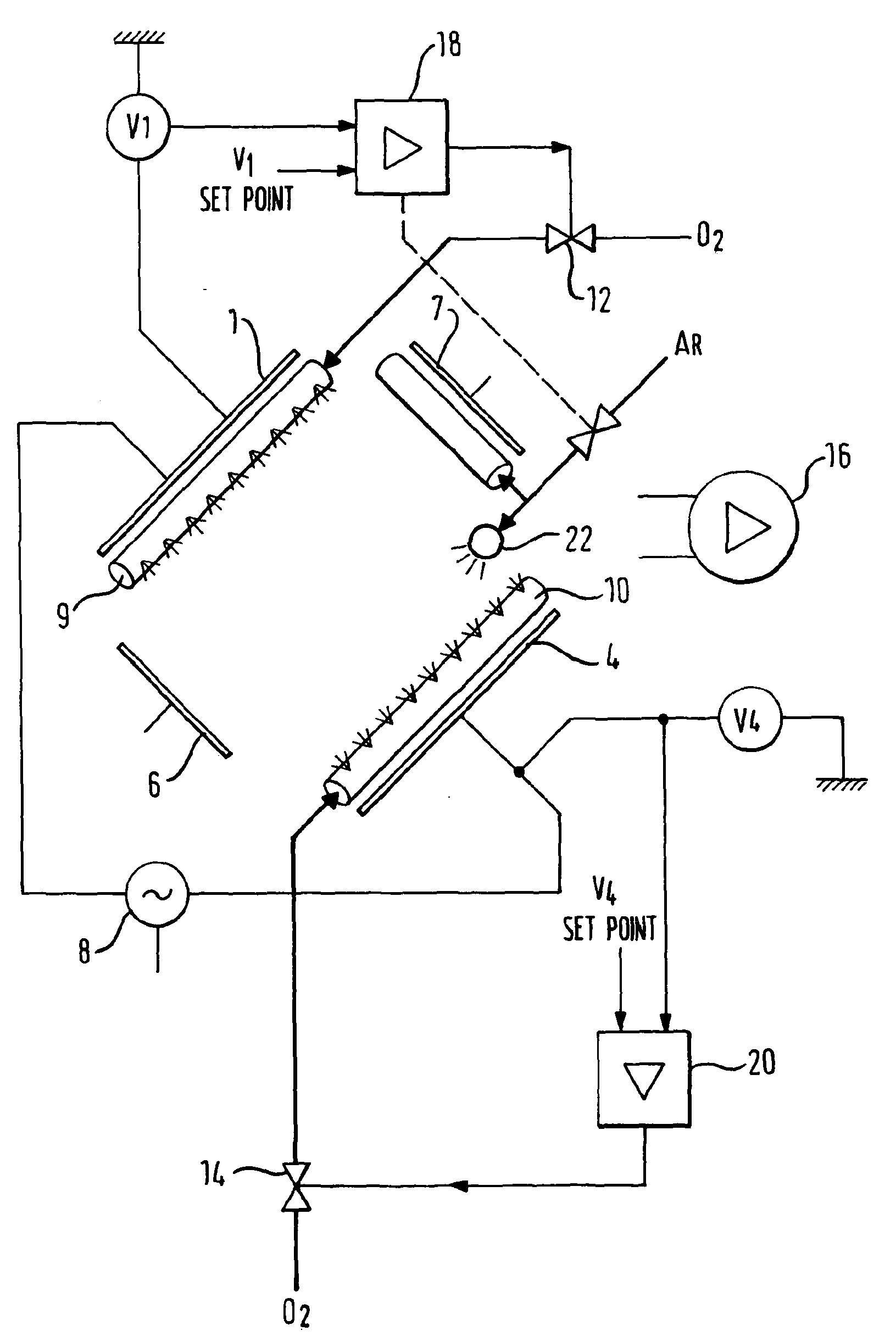

A dual magnetron sputtering power supply for use with a magnetron sputtering apparatus having at least first and second sputtering cathodes for operation in the dual magnetron sputtering mode, there being a means for supplying a flow of reactive gas to each of said first (1) and second (4) cathodes via first (12) and second (14) flow control valves each associated with a respective one of said first and second cathodes and each adapted to control a flow of reactive gas to the respectively associated cathode, the power supply having, for each of said first and second cathodes a means for deriving a feed-back signal relating to the voltage prevailing at that cathode, a control circuit for controlling the flow of reactive gas to the respectively associated cathode by controlling the respective flow control valve and adapted to adjust the respective flow control valve to obtain a voltage feedback signal from the respective cathode corresponding to a set point value set for that cathode. Also claimed is a magnetron sputtering apparatus in combination with such a power supply.
First Claim
Other Claims data not available
