Articulated Combine With Unloading and Rear Bogey Steering Architecture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 5, 2010
filing date -
Dec 18, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

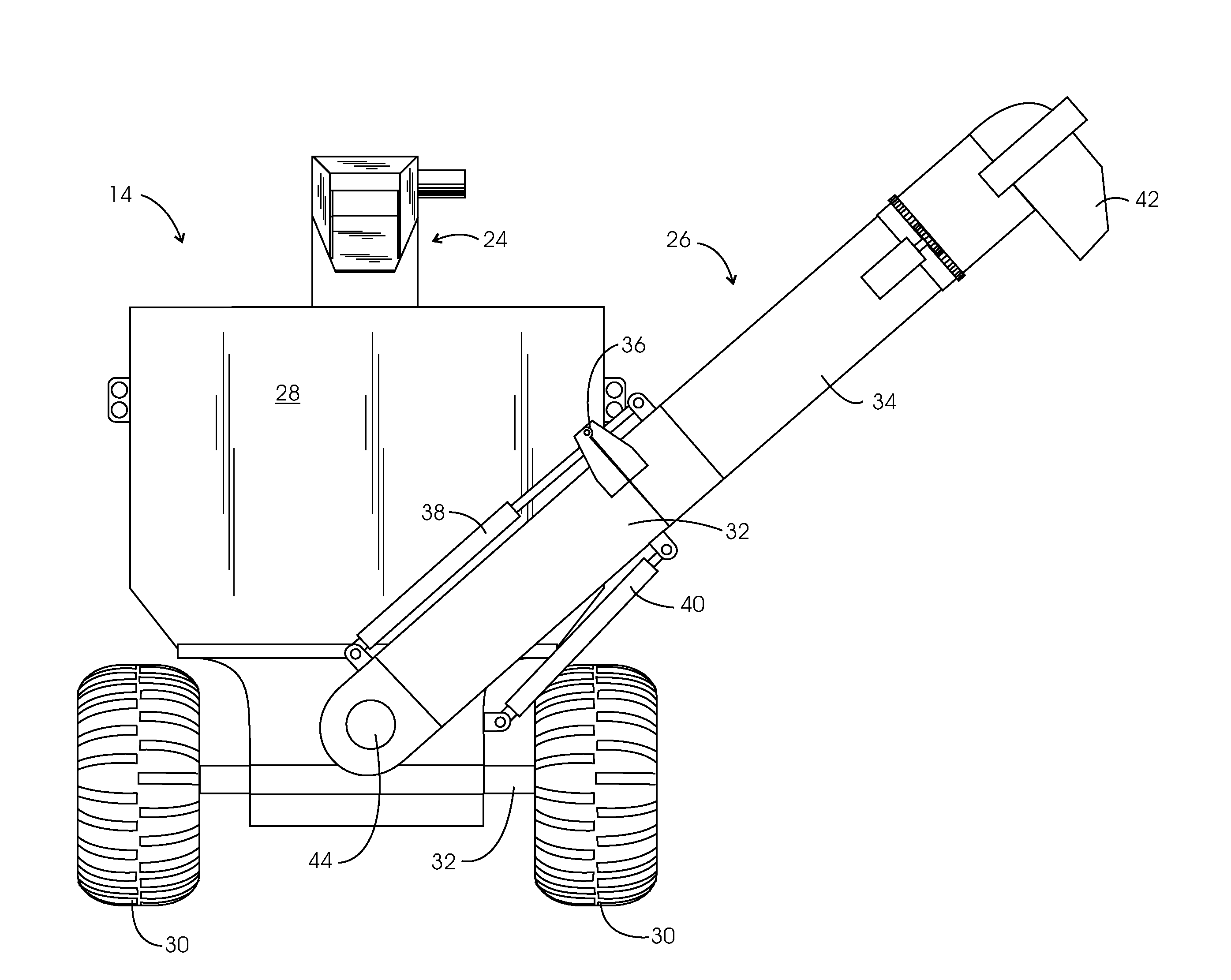

Disclosed is an articulated harvester composed of a forward bogey having an operator's cab, an engine, a grain harvesting assembly, a grain transfer assembly, but being devoid of an on-board grain bin. A rearward bogey is attached by a joint to the forward bogey and has a powered wheel assembly, an on-board grain bin for receiving grain from the forward bogey grain transfer assembly, and a grain off-loading assembly. The disclosed improvement includes the rearward bogey having a powered wheel assembly of a powered stiff axle wheel assembly pivotable for steering the articulated harvester when the joint has articulated by a defined number of degrees. The joint may be connected to the rearward bogey powered stiff axle wheel assembly by a beam that has a second joint disposed ahead of the stiff axle and actuatable to crab the articulated harvester for grain unloading.
First Claim
Other Claims data not available
