Water Purification
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 27, 2010
app pub date -
Nov 24, 2008
filing date -
Nov 24, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

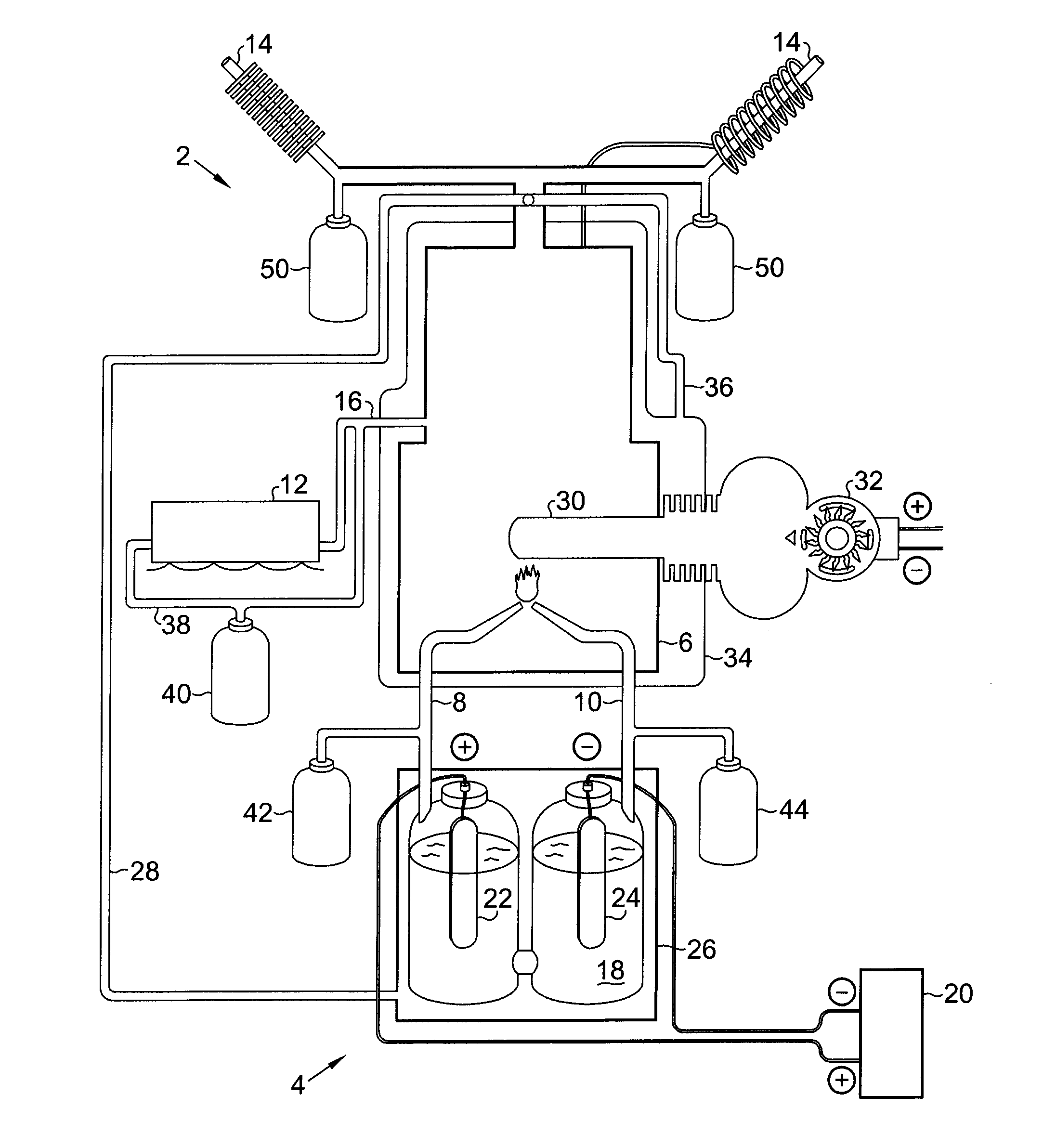

A water purification system has a water electrolysis system, combustion evaporation, and condensation chambers; hydrogen and oxygen channels; and a water vapor conduit. The water electrolysis system generates hydrogen and oxygen from water. The hydrogen and oxygen are transported to the oxygen chamber in channels. The hydrogen is combusted in the oxygen in the combustion chamber to generate heated water vapor. The evaporation chamber generates water vapor from water. The water vapor conduit is disposed between the evaporation chamber and the condensation chamber. Heated water vapor from the combustion chamber traveling from the combustion chamber into the condensation chamber generates a vacuum on the water vapor conduit, drawing water vapor from the evaporation chamber into the condensation chamber. The condensation chamber receives water vapor from both the combustion chamber and the evaporation chamber. Water vapor from the combustion chamber and the evaporation chamber are condensed into purified liquid water.
First Claim
Other Claims data not available
