High resolution flexural stage for in-plane position and out-of-plane pitch/roll alignment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 5, 2013
Grant Date -
May 13, 2010
app pub date -
Dec 1, 2009
filing date -
Jun 1, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

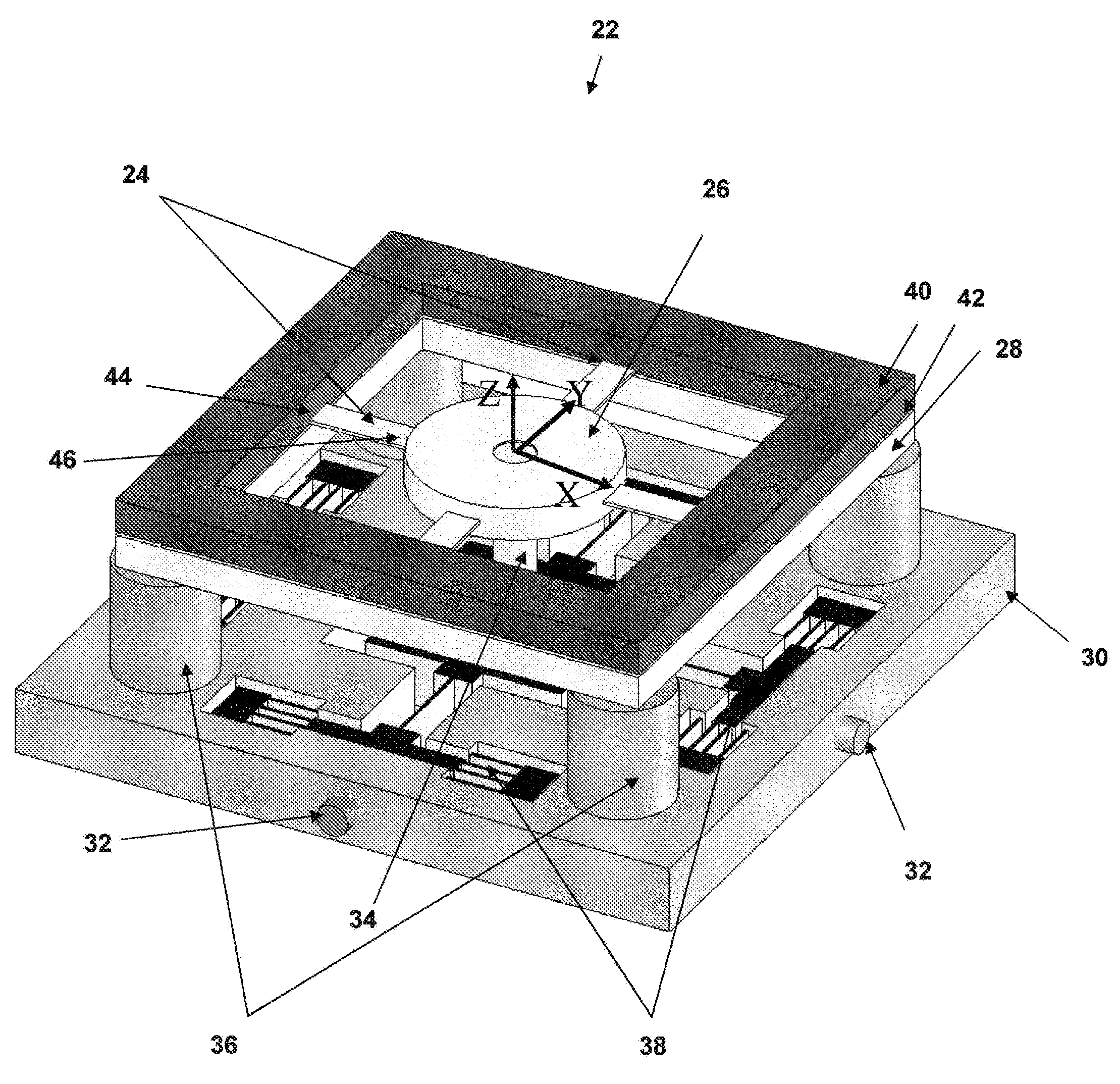

An adjustment structure used in conjunction with an imprinting structure is provided. The adjustment structure includes a sample mount for mounting a sample. An actuator mechanism is coupled to the sample mount, the actuator mechanism producing actuated forces on a X-Y plane to produce movements on a sample mount. A plurality of bladed flexures are positioned on the sample mount. The bladed flexures controls the movements of the sample mount produced by the actuator mechanism so as to allow adjustments in angular alignment about the pitch-roll (θX-θY) rotation axes or the X-Y plane relative to the sample mount so the imprinting structure can perform its operations on the sample.
