WORK BENCH FOR CUTTING A TUBE AND METHOD USING SUCH WORK BENCH
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 6, 2010
app pub date -
Dec 18, 2007
filing date -
Dec 19, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

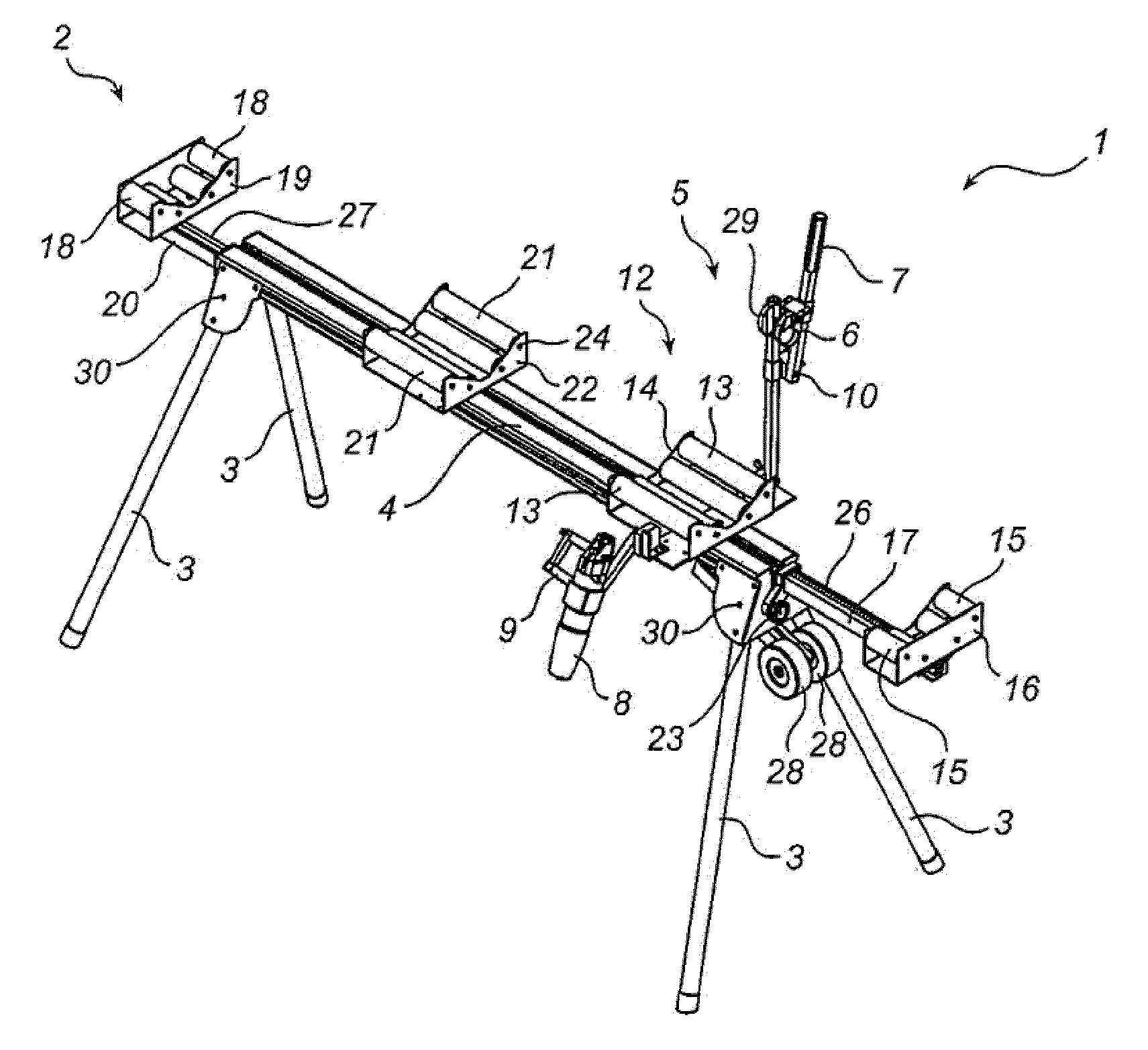

A work bench for cutting a tube comprises a support structure (2) for supporting the tube, a holder assembly (12) for holding the tube and a tool assembly (5) for cutting the tube (34). The tool assembly (5) comprises a cutting tool (8) which is restrained to move only in a plane perpendicular to a longitudinal direction of the tube (34), and that the holder assembly (12) comprises an abutment (16, 19) for an end of the tube (34). The abutment is movable in relation to the cutting tool (8) for setting a desired length of the tube (34) to be cut, and fixable to fix the position of the end of the tube (34) in relation to the cutting tool (8). A method for cutting a tube is also disclosed.
First Claim
Other Claims data not available
