TEMPERATURE TUNING OF OPTICAL DISTORTIONS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 1, 2010
app pub date -
Sep 18, 2009
filing date -
Sep 26, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

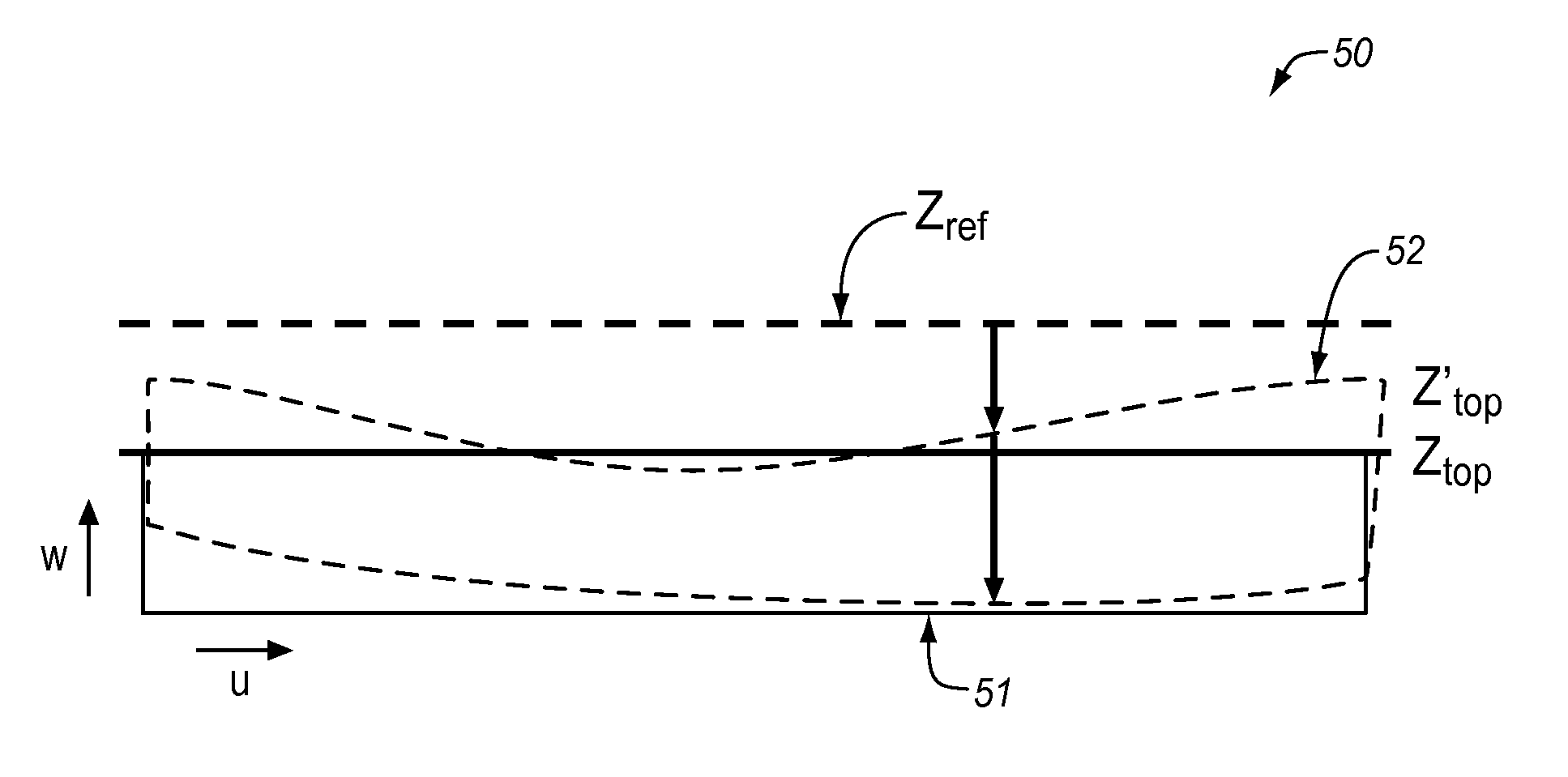

The systems and methods herein provide for tuning an optical characteristic of a gain medium for a laser system. For example, a system may include a thermal tuner that dynamically controls the temperature of the gain medium to compensate for thermal mechanical distortions of the gain medium caused by laser energy in the gain medium. In doing so, the tuner may dynamically adjust a coolant temperature and/or a coolant flow rate proximate to the gain medium. Accordingly, heat is dynamically removed from the gain medium so as to adjust for optical distortions in the gain medium. Such a dynamic heat removal may provide a laser system designer with the ability to generate laser energy with controllable predetermined optical wavefronts (e.g., a flat optical wavefront).
First Claim
Other Claims data not available
