High-Electrical-Current Wafer Level Packaging, High-Electrical-Current WLP Electronic Devices, and Methods of Manufacture Thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 25, 2010
app pub date -
Sep 24, 2008
filing date -
Sep 24, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

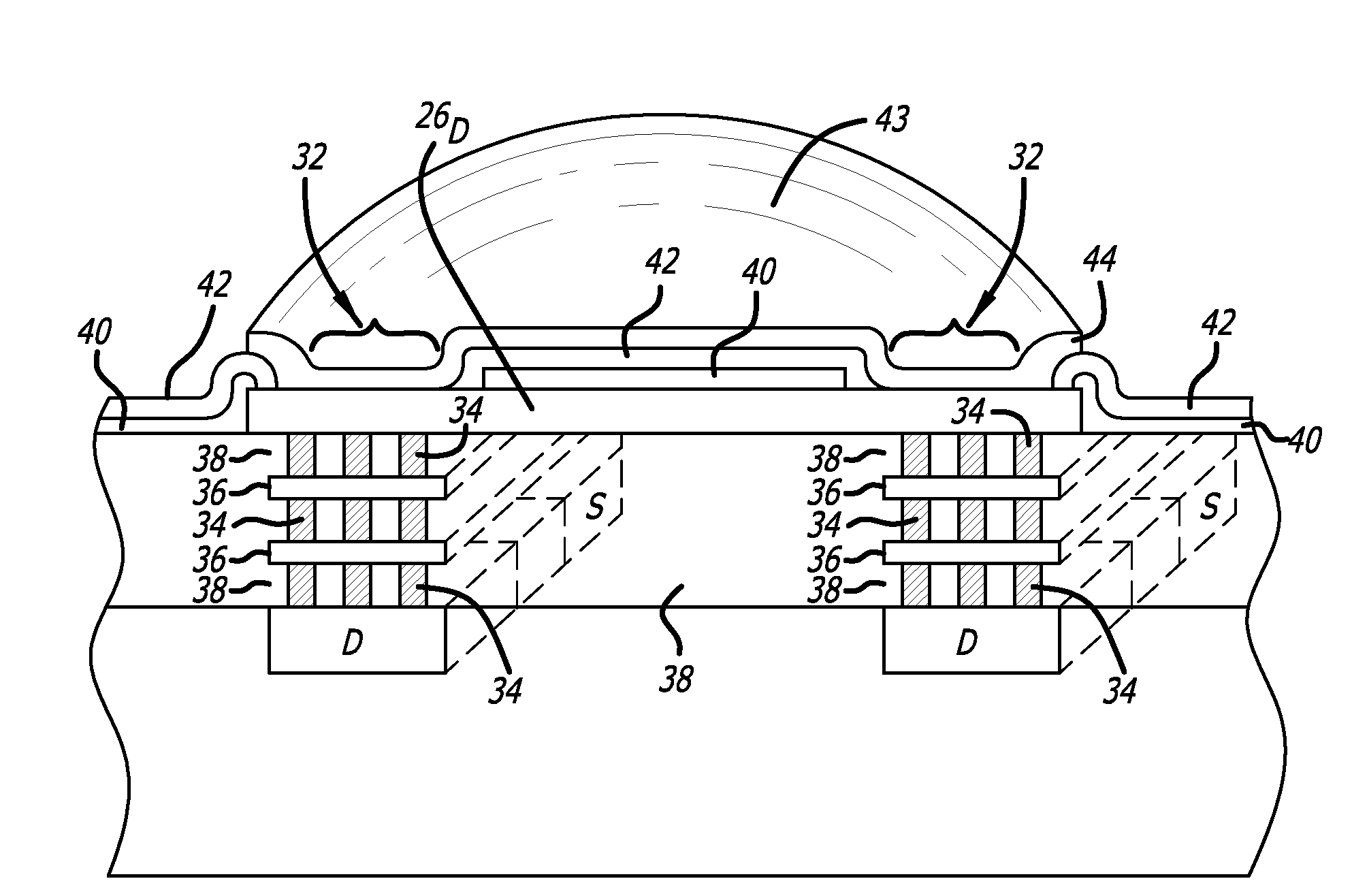

The present invention has various aspects relating to the maximization of current carrying capacity of wafer level packaged chip scale solder pad mounted integrated circuits. In one aspect, the solder pad areas are maximized by using rectangular solder pads spaced as close together as reliable mounting to a circuit board will allow. In another aspect, multiple contact pads may be used for increasing the current capacity without using contact pads of different areas. In still another aspect, vias are used to directly connect one lead of high current component or components to a contact pad directly above that component, and to route a second lead of the high current component to an adjacent contact pad by way of a thick metal interconnect layer.
