SERRATED SNAP-OFF UTILITY KNIFE BLADE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 25, 2010
app pub date -
Sep 22, 2008
filing date -
Sep 22, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

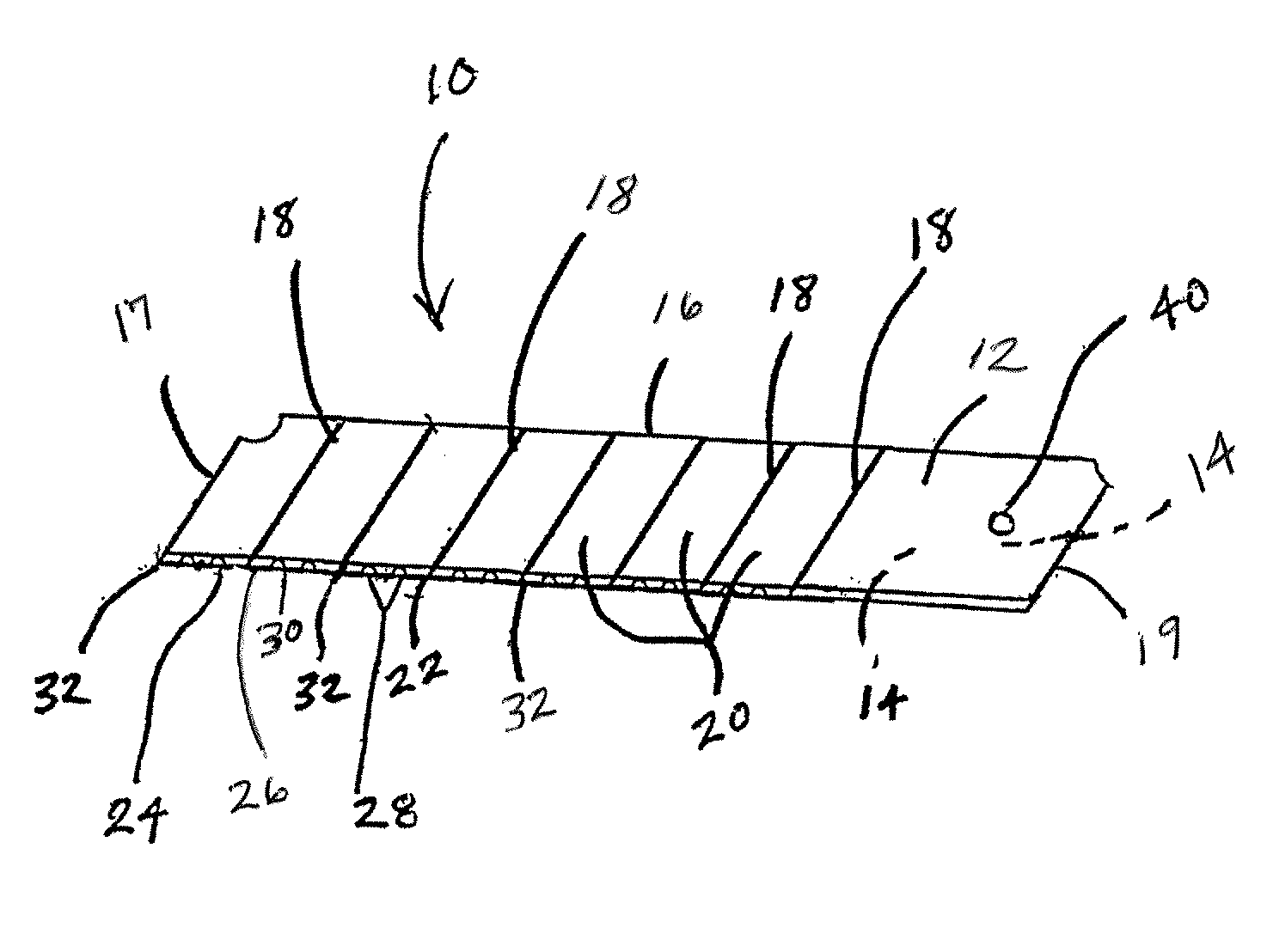

A utility knife blade comprising a blade body defining a first side, a second side opposite the first side, a back edge and a cutting edge opposite the back edge. The cutting edge includes a plurality of serrated portions and substantially non-serrated portions. The blade further defines two opposing lateral edges extending between the back edge and the cutting edge. A plurality of score lines laterally spaced relative to each other along the cutting edge extend across at least one of the first and second sides of the blade between the cutting edge and the back edge, the score lines defining a plurality of blade segments therebetween. The score lines extend between the non-serrated portions of the cutting edge and the back edge so that the serrated portions avoid contact with the score lines to facilitate the breaking off of each cutting segment when desired.
First Claim
Other Claims data not available
