Seat cover covering structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 6, 2012
Grant Date -
Mar 11, 2010
app pub date -
Nov 27, 2007
filing date -
Dec 11, 2006
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

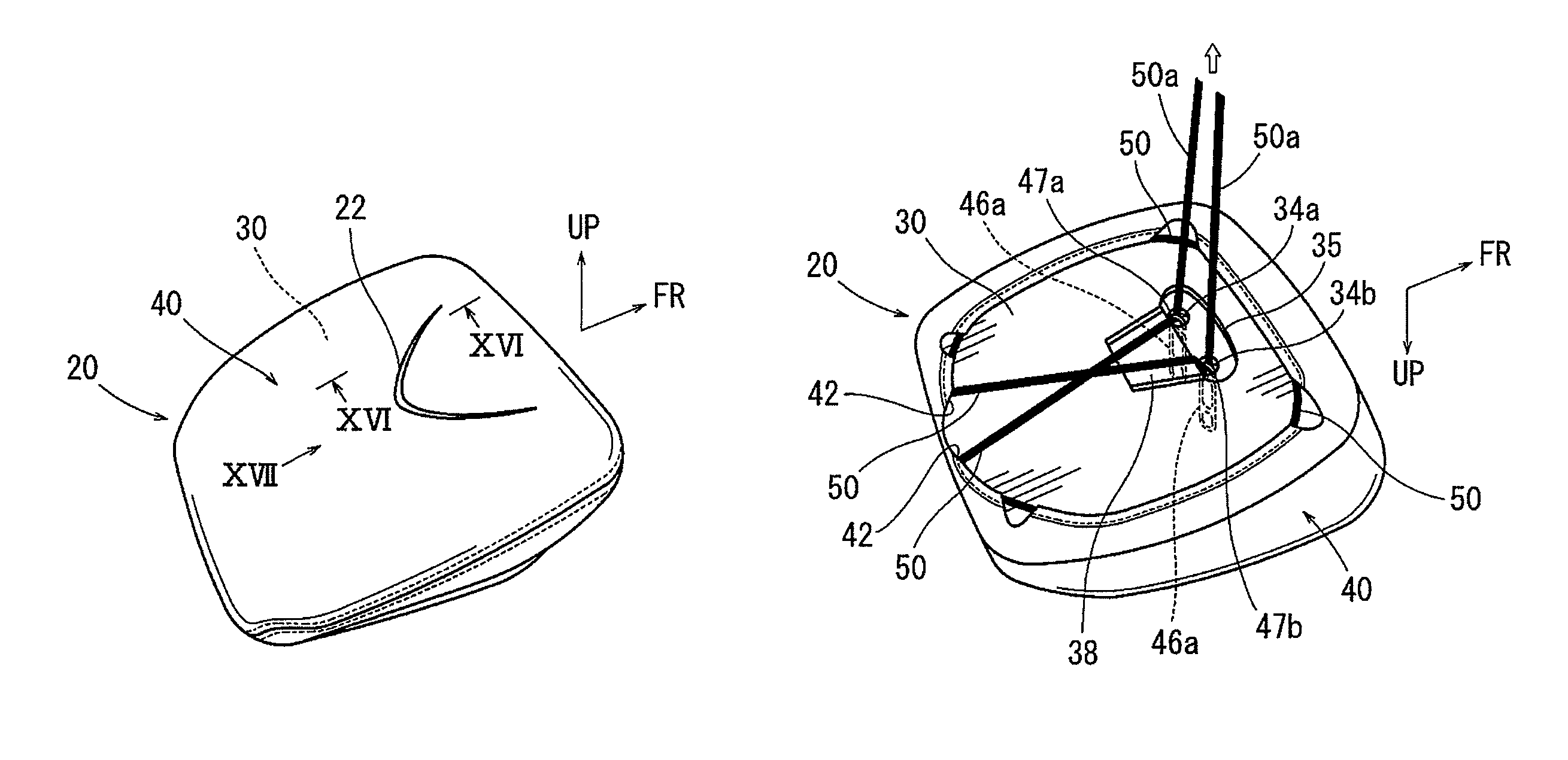

A pull-in recess is formed in a seat pad (30). The pull-in recess is partly formed as a through hole penetrating to a back surface of the seat pad. A seat cover (40) is formed into a bag shape. A string-shaped member (50) for drawing the seat cover (40) and attaching the same to the seat pad (30) is disposed along an opening of the seat cover. The seat cover (40) is provided with a pull-in portion at a position corresponding to the pull-in recess of the seat pad (30). The pull-in portion is inserted into the through hole of the seat pad (30). A distal end of the pull-in portion is provided with a retainer portion (47a and 47b) that is capable of engaging the string-shaped member (50). The retainer portions (47a and 47b) inserted into the through holes (34a and 34b) of the seat pad (30) are engaged with the string-shaped member (50) while the drawing action force of the string-shaped member (50) is applied thereto, which force can be produced when the seat cover is attached by drawing.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP4893285 | Dec 11, 2006 |
| EP | B1 | EP2095746 | Nov 27, 2007 |
| WO | A1 | WO2008072465 | Nov 27, 2007 |
| CN | B | CN101583299 | Nov 27, 2007 |
International Classification(s)
- 2007 Application Filing Year
- A47C Class
- 690 Applications Filed
- 383 Patents Issued To-Date
- 55.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 17 Citation Count
- A47C Class
- 52.74 % this patent is cited more than
- 13 Age
