SLAT TABLETOP WITH END CAPS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 25, 2010
app pub date -
Aug 25, 2008
filing date -
Aug 25, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

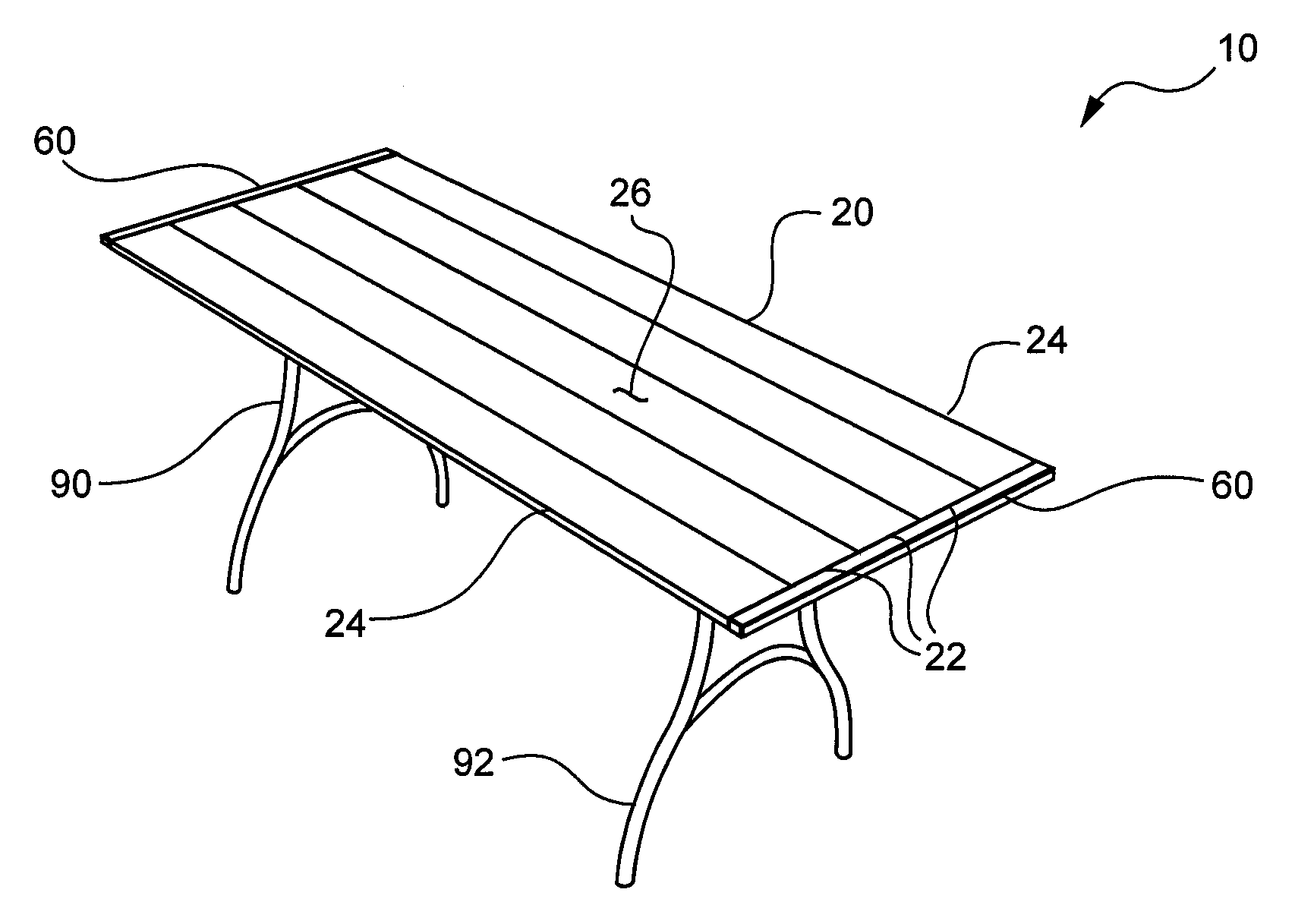

A tabletop formed from slats for use in rigid, light-weight tables, such as portable banquet tables. The tabletop includes a center section formed from a plurality of open-channel, rectangular tubular slats that are laterally coupled together. Each slat has a top wall that aligns with top walls to form the upper working surface of the tabletop. Each slat also has downwardly-projecting sidewalls and a bottom wall with a longitudinal slot running the length of the slat to form the rectangular, downwardly-orientated channel. The adjacent contacting sidewalls of adjacent slats coupled together to form substantially vertical support beams. The tabletop further includes a pair of elongate end caps disposed on opposite ends and spanning the plurality of slats of the center section, with each end cap having a plurality of finger pairs extending into the plurality of slats with a center slot the receives a support beam therein.
First Claim
Other Claims data not available
