Regulating valve particularly for regulating the flow of refrigeration fluids
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 18, 2012
Grant Date -
Feb 18, 2010
app pub date -
Aug 10, 2009
filing date -
Aug 18, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

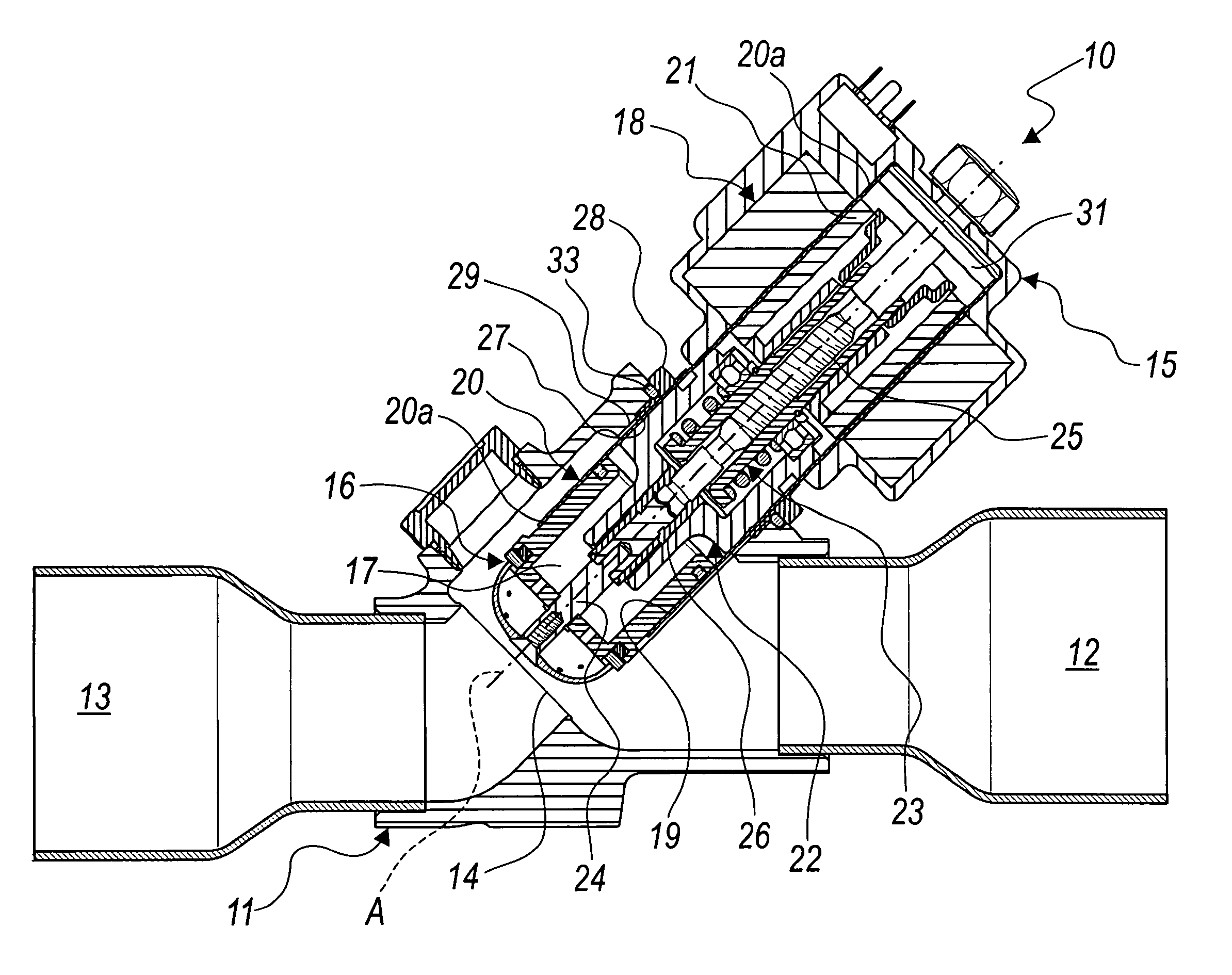

A regulating valve has a valve body, with an inlet and an outlet for fluid, which are connected by a connecting opening, and a flow control device for the connecting opening, inserted in a seat formed in the valve body. The flow control device has a piston for controlling flow within the connecting opening which is functionally connected to an electric motor adapted to make it slide within a cylinder along a sliding axis, and a monolithic tubular jacket that surrounds, determining its coaxiality, the rotor of the electric motor and the flow control piston, further providing the cylinder.
First Claim
Other Claims data not available
