Non-90-Degree Ergonomically-Shaped Dental Prophylaxis Angle with a Straight Driving Shaft
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 11, 2010
app pub date -
Aug 9, 2008
filing date -
Aug 9, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

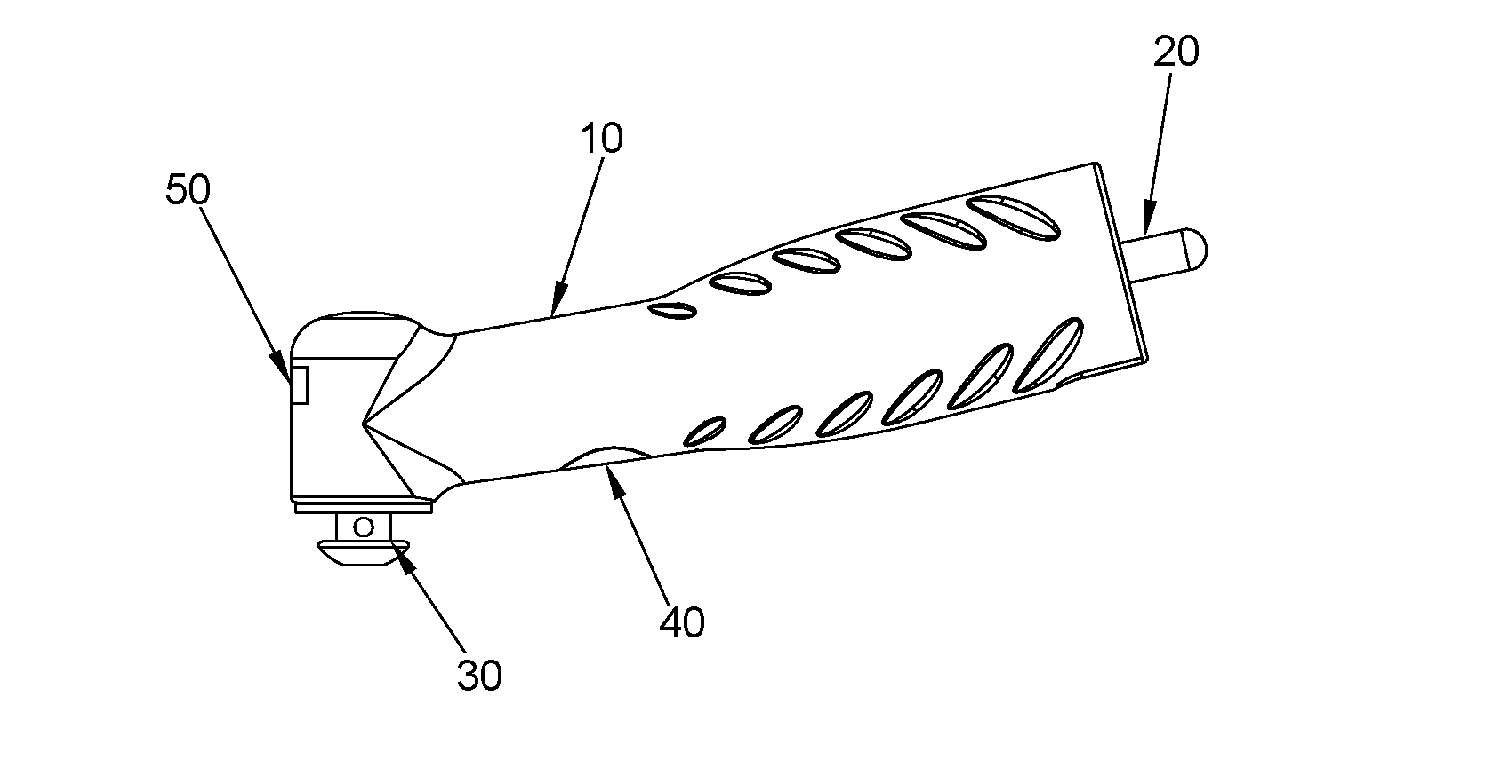

A disposable dental angle with a one-piece hollow housing, having the axis of its head section angled obtusely with respect to the axis of its tail section, is provided. The obtusely angled front aperture of the head section of the housing allows insertion of a driven rotor such that the driven rotor is positioned with an obtuse angle to the driving shaft in the end aperture of the tail section of the housing. The obtuse angle structure facilitates teeth cleaning operations by allowing the dental angle to easily reach all areas of the mouth and making practitioners feel more comfortable by allowing to maintain an ergonomically correct neutral wrist position and therefore reducing hand fatigue. A horseshoe-like snap retainer fits within the head section of the housing over the driven rotor to retain the rotor from coming out. A similar horseshoe-like snap retainer fits within the tail section of the housing over the driving shaft to retain the shaft firmly such that the gear of the driven rotor is always properly coupled to the matching gear of the driving shaft. The driving shaft transfers the rotation from a dental tool to the driven rotor for the purpose of tooth prophy using a cleaning cup.
First Claim
Other Claims data not available
