SANITARY WATER-OUTLET FITTING WITH JET REGULATOR FOR DEFLECTING THE EXITING WATER JET
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 17, 2009
app pub date -
Feb 9, 2006
filing date -
Mar 4, 2005
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

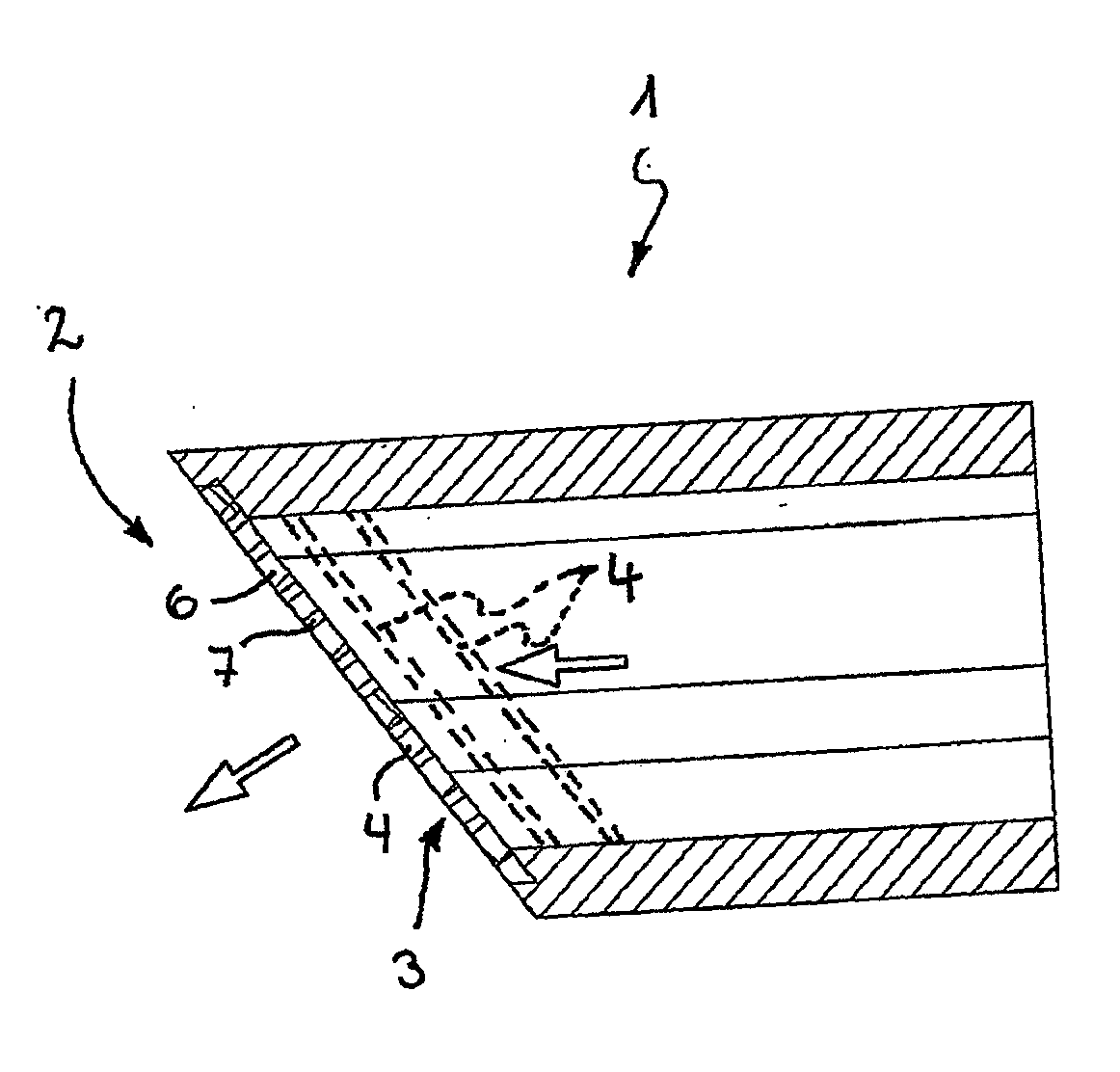

A sanitary water-outlet fitting (1) which has a water outlet (2) that is provided on the outflow side in the region of the water outlet (2), with a flow guide (3) which has at least one perforated plate (4), screen or lamellar structure with a number of outlet holes or outlet openings (6) surrounded by flow-guide walls (7). The flow guide (3) is configured as a jet regulator, and the flow-guide walls (7) of at least individual outlet holes or outlet openings (6) are arranged at an angle to the flow direction of the water flowing into the flow guide (3) on the inflow side, and the flow-guide walls (7) of these outlet holes or outlet openings (6) deflect the inflowing water stream in a direction of their longitudinal extent. It has been found that such a flow guide (3) is capable of deflecting the water in the direction of the axial position of the flow-guide walls (7), even in the case of the flow guide (3) having a comparatively short longitudinal extent in the axial direction. It is thus possible to dispense with ball-and-socket joints which take up a lot of space and may be unsightly.
