METHOD AND APPARATUS FOR MOUNTING CONDUCTIVE BALLS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 17, 2009
app pub date -
Jun 12, 2008
filing date -
Jun 12, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

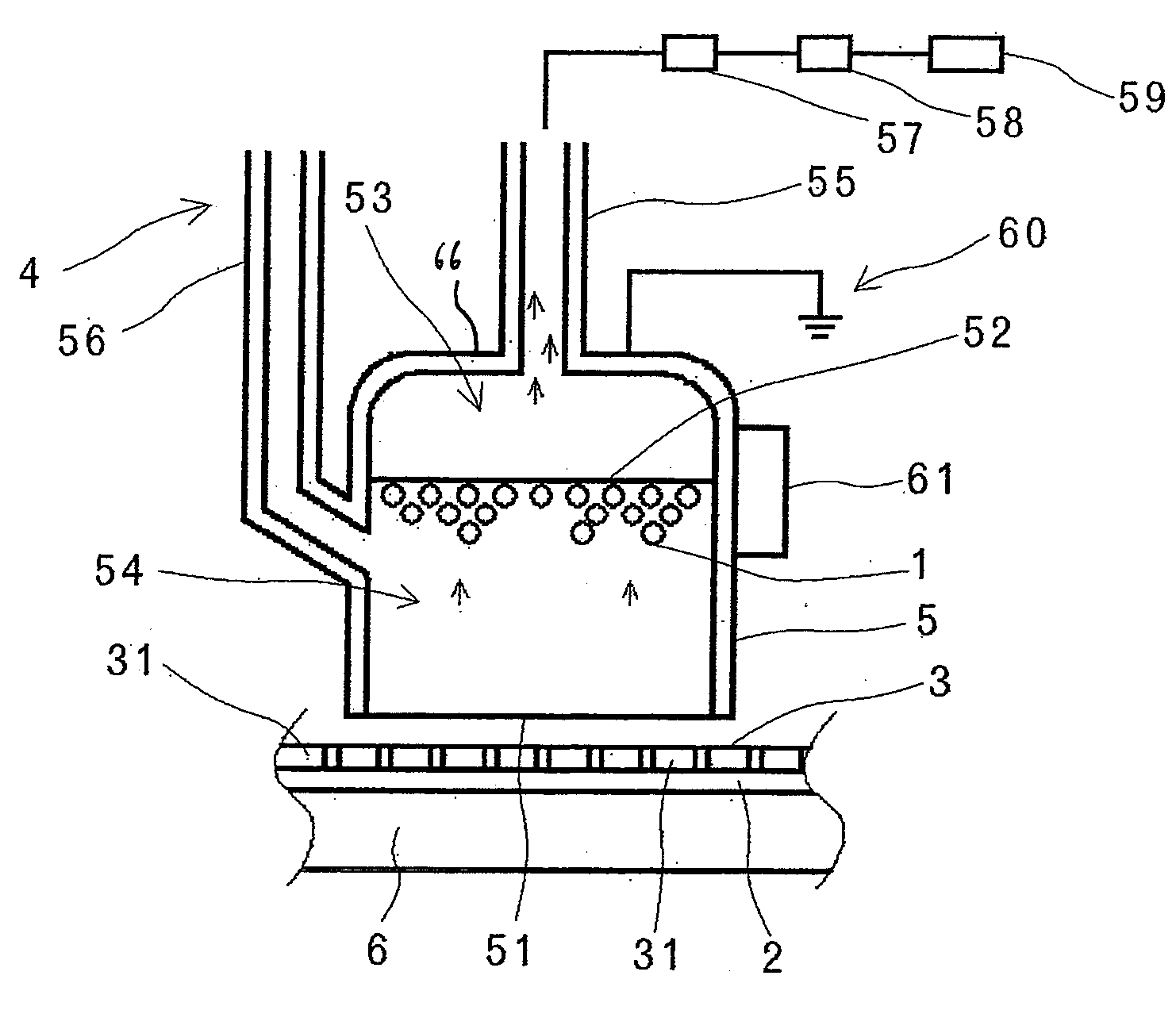

A conductive ball mounting method for mounting conductive balls on a mount using an arraying mask, in which the mount includes mounting positions formed in a predetermined pattern, and the arraying mask is provided above the mount and includes through holes provided in positions corresponding to the mounting positions. The method includes providing a ball suction unit for sucking solder balls, the ball suction unit including a ball holding member capable of holding the conductive balls, sucking up the conductive balls below the ball suction unit, holding the conductive balls on a lower surface of the ball holding member while sucking up the conductive balls, and after the holding the conductive balls, falling the conductive balls held by the ball holding member to the mount.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01R Class
- 3.38 % this patent is cited more than
- 16 Age
